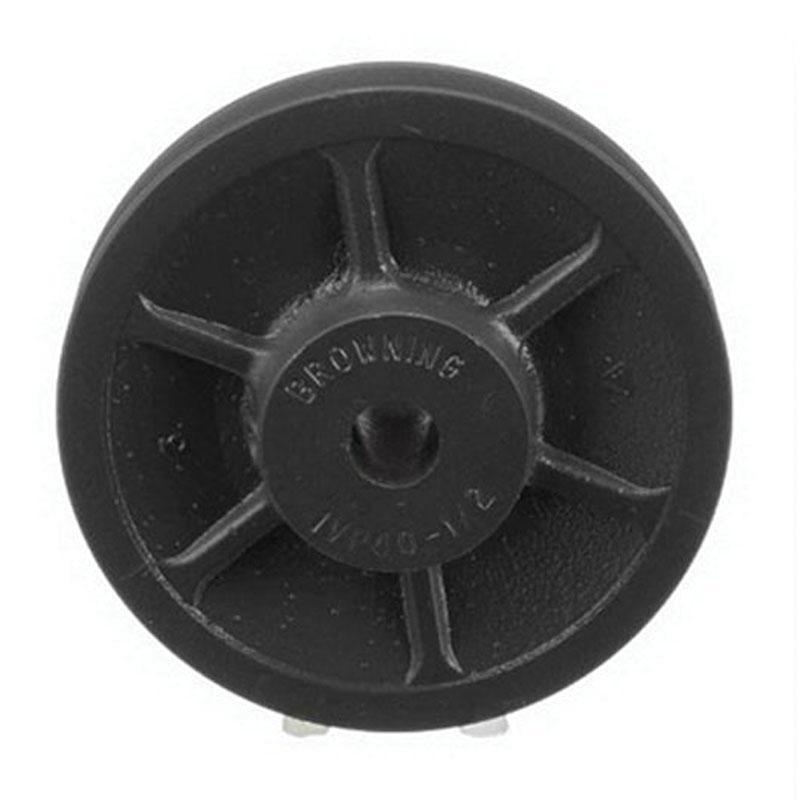

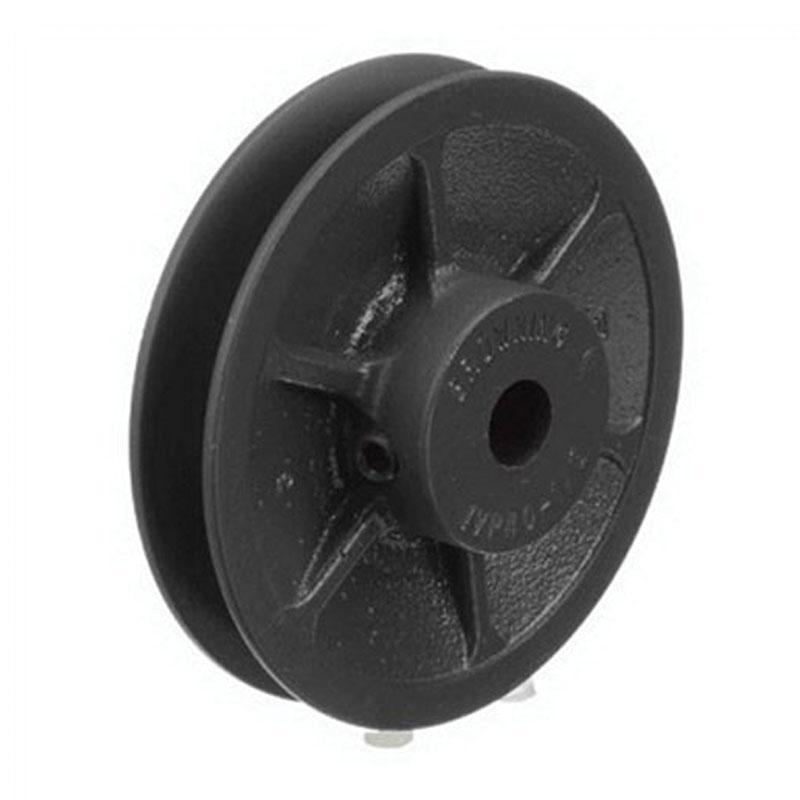

Browning® 1VP40X1/2 1VP40X1/2

Browning 1VP40X1/2 FHP Variable Pitch Sheave, Finished Bore, 1/2 in Dia Bore, 2.3 to 3.1 in Dia Pitch

Browning® 1VP40X1/2 FHP Variable Pitch Sheave, Finished Bore, 1/2 in Dia Bore, 2.3 to 3.1 in Dia Pitch

Browning® 1VP40X1/2 FHP Variable Pitch Sheave, Finished Bore, 1/2 in Dia Bore, 2.3 to 3.1 in Dia Pitch 1VP40X1/2

Browning® FHP Variable Pitch Sheave, Finished Bore, 1/2 in Bore Diameter, 3L, 4L, 5L, A, B Belt Section Size, 1 Number of Grooves, 2.3 to 3.1 in Pitch Diameter, 1/4 x 1/8 in Keyway Size, Iron

Belt Section Size      :      3L, 4L, 5L, A, B
Bore Diameter      :      1/2 in
Bore Type      :      Finished
Keyway Size      :      1/4 x 1/8 in
Material      :      Iron
Number of Grooves      :      1
Pitch Diameter      :      2.3 to 3.1 in

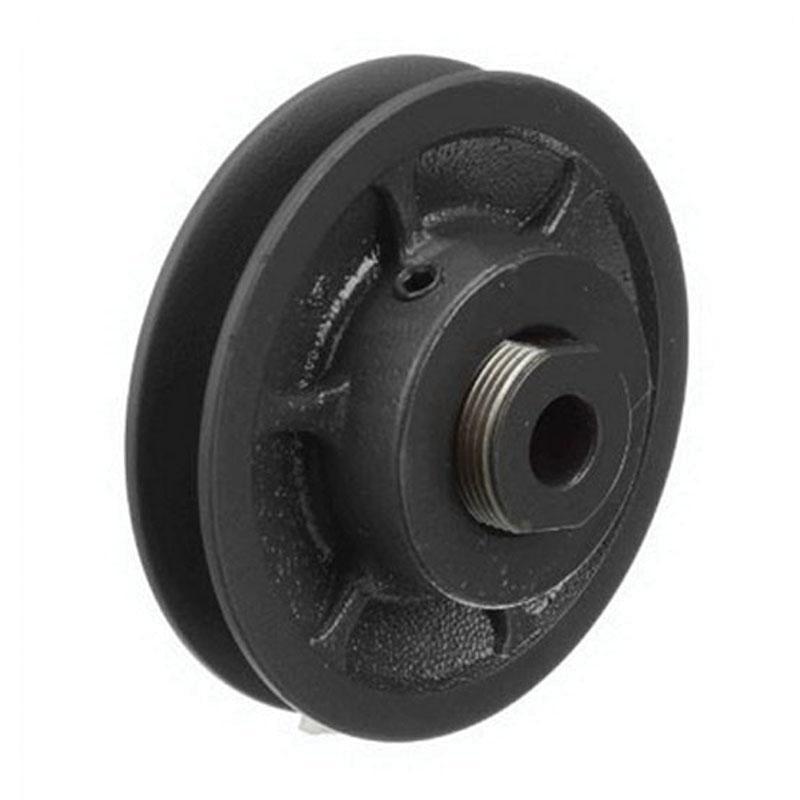

  • VP sheaves consist of a male with a threaded barrel and a female with a threaded bore
  • The male section with threaded barrel has flat surfaces at 180 deg increments that allow a flat surface for the setscrew to mate with
  • When discs are moved toward each other, the belt rides higher in the groove and the pitch diameter of the sheave is larger which increases the driven speed
  • When discs are moved away from each other, the belt rides lower and the pitch diameter is smaller decreasing the driven speed
  • pdfInstruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/Browning_1VP40X1_2_Instruction_Installation_Manual.pdf
  • pdfLine Drawing https://assets.unilogcorp.com/267/ITEM/DOC/Browning_1VP40X1_2_Line_Drawing.pdf
