Browning® 1VP56X1 1VP56X1

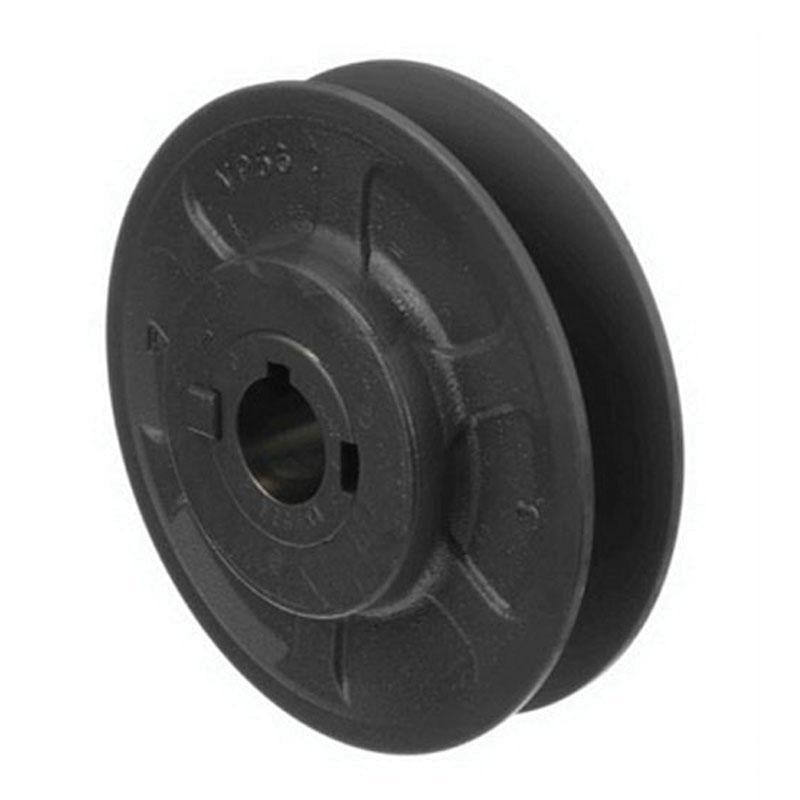

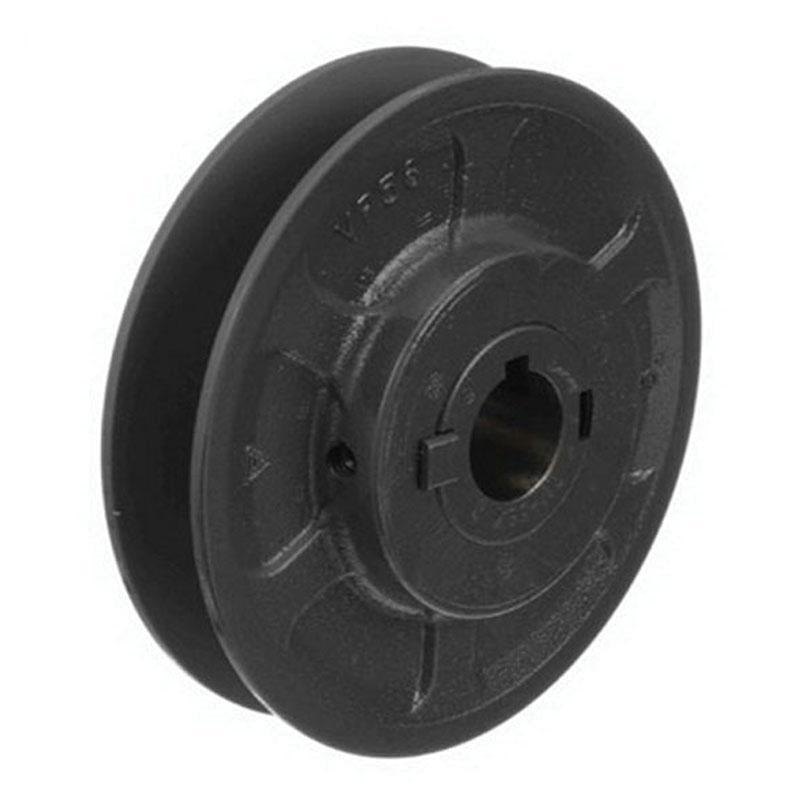

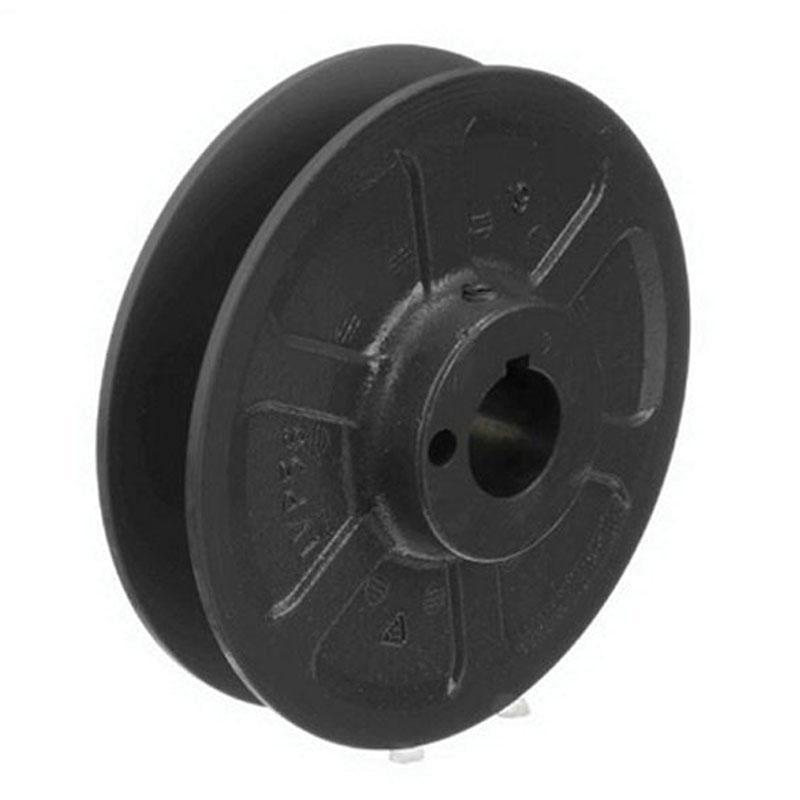

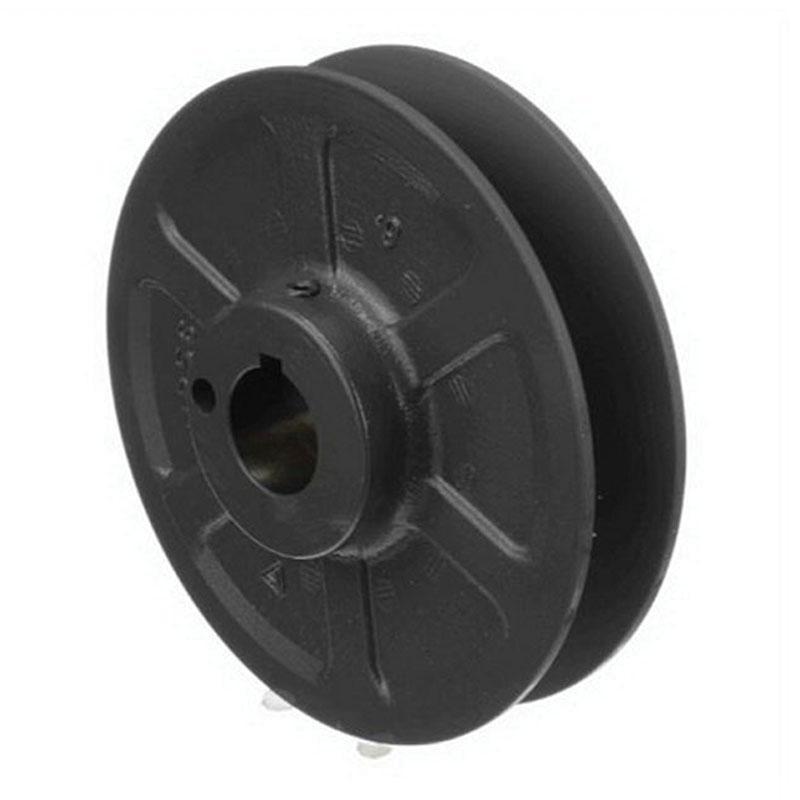

Browning 1VP56X1 FHP Variable Pitch Sheave, Finished Bore, 1 in Dia Bore, 3.9 to 4.7 in Dia Pitch

Browning® 1VP56X1 FHP Variable Pitch Sheave, Finished Bore, 1 in Dia Bore, 3.9 to 4.7 in Dia Pitch

Browning® 1VP56X1 FHP Variable Pitch Sheave, Finished Bore, 1 in Dia Bore, 3.9 to 4.7 in Dia Pitch 1VP56X1

Browning® FHP Variable Pitch Sheave, Finished Bore, 1 in Bore Diameter, 3L, 4L, 5L, A, B Belt Section Size, 1 Number of Grooves, 3.9 to 4.7 in Pitch Diameter, Iron

Belt Section Size      :      3L, 4L, 5L, A, B
Bore Diameter      :      1 in
Bore Type      :      Finished
Material      :      Iron
Number of Grooves      :      1
Pitch Diameter      :      3.9 to 4.7 in

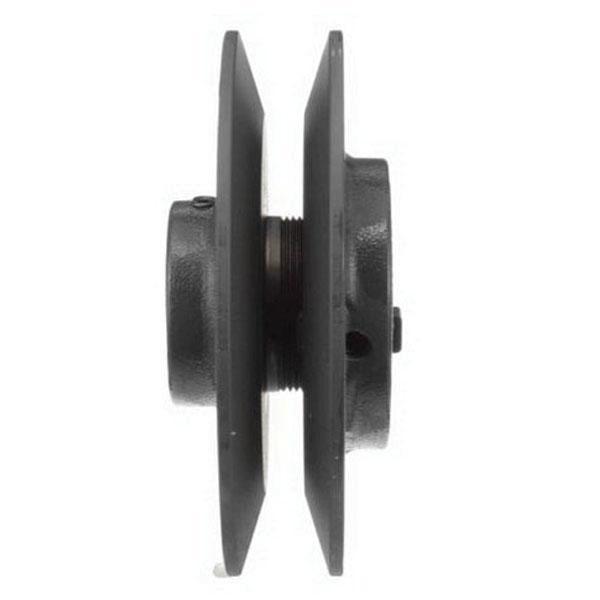

  • VP sheaves consist of a male with a threaded barrel and a female with a threaded bore
  • The male section with threaded barrel has flat surfaces at 180 deg increments that allow a flat surface for the setscrew to mate with
  • When discs are moved toward each other, the belt rides higher in the groove and the pitch diameter of the sheave is larger which increases the driven speed
  • When discs are moved away from each other, the belt rides lower and the pitch diameter is smaller decreasing the driven speed
  • pdfInstruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/Browning_1VP65X1-1_8_Instruction_Installation_Manual.pdf
  • pdfLine Drawing https://assets.unilogcorp.com/267/ITEM/DOC/Browning_1VP65X1-1_8_Line_Drawing.pdf
