Browning® 1VP62X7/8 1VP62X7/8

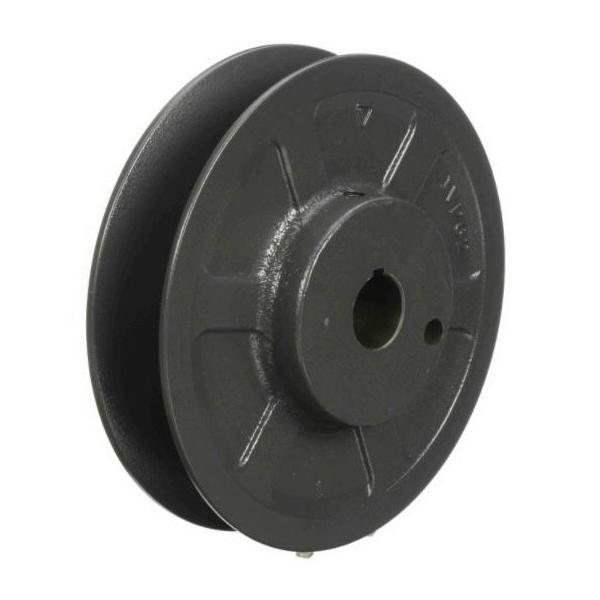

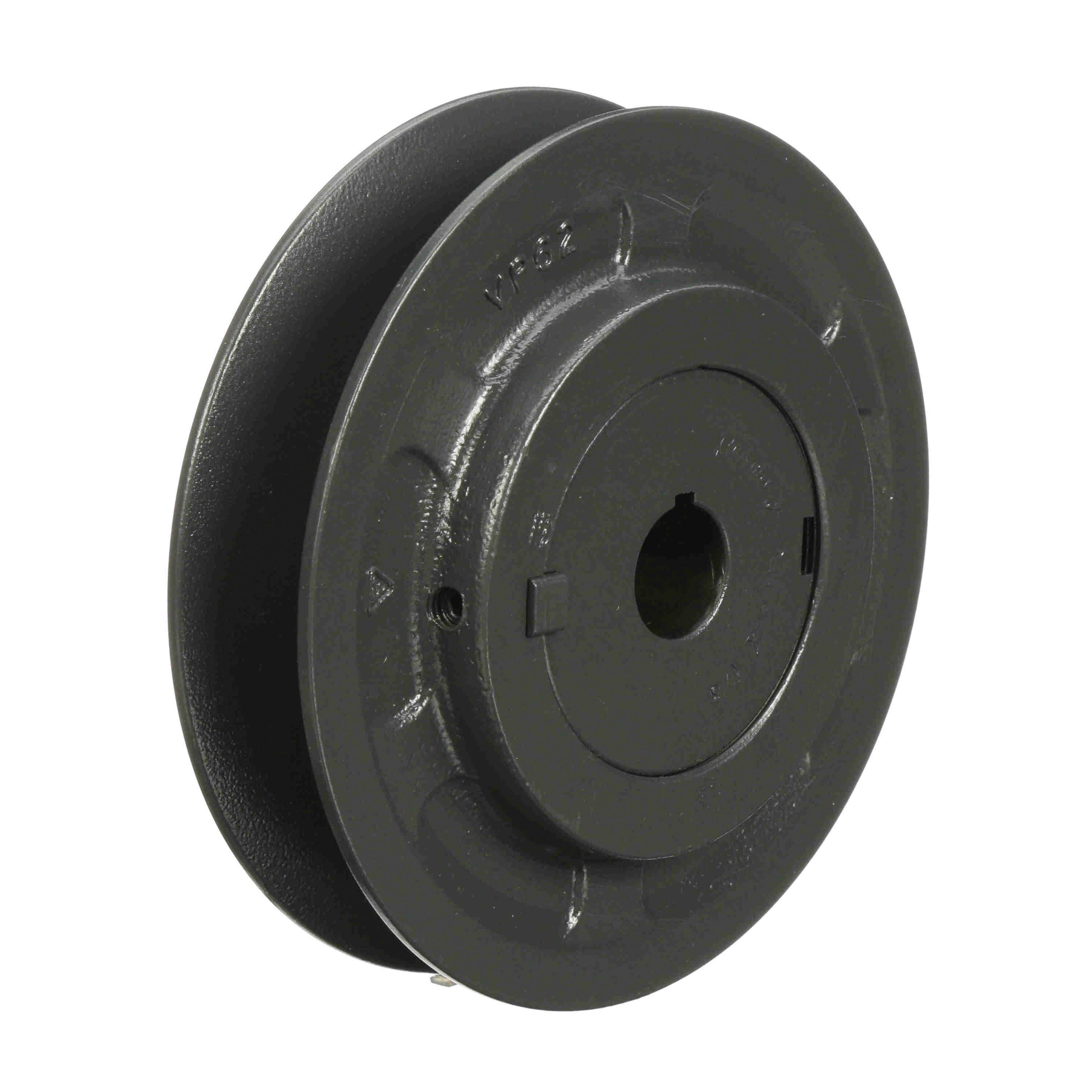

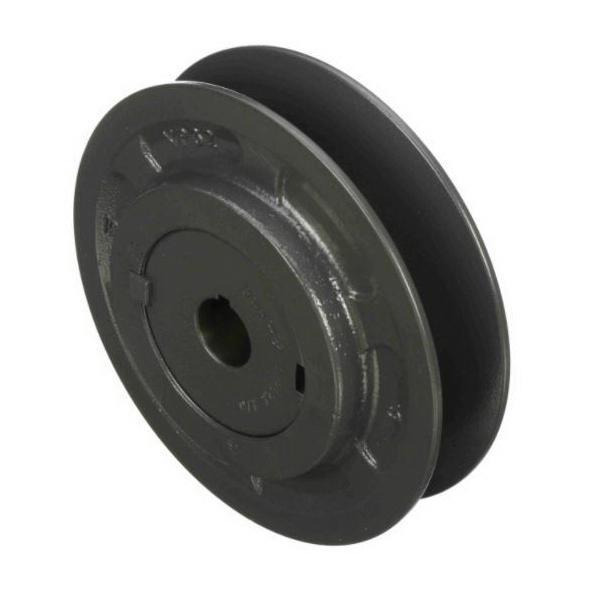

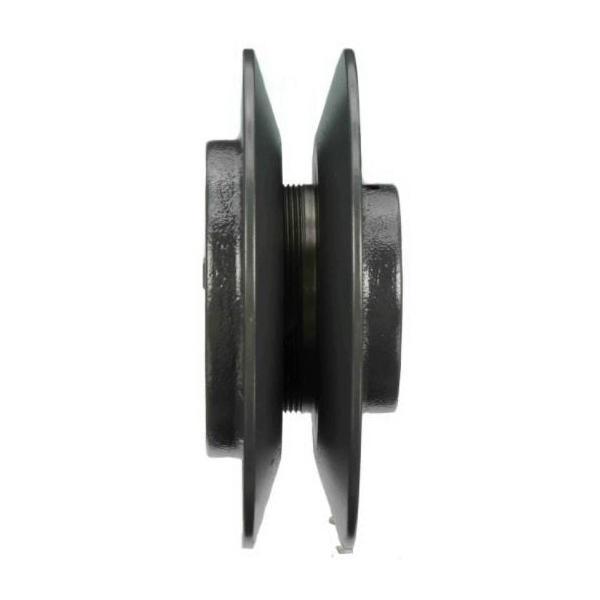

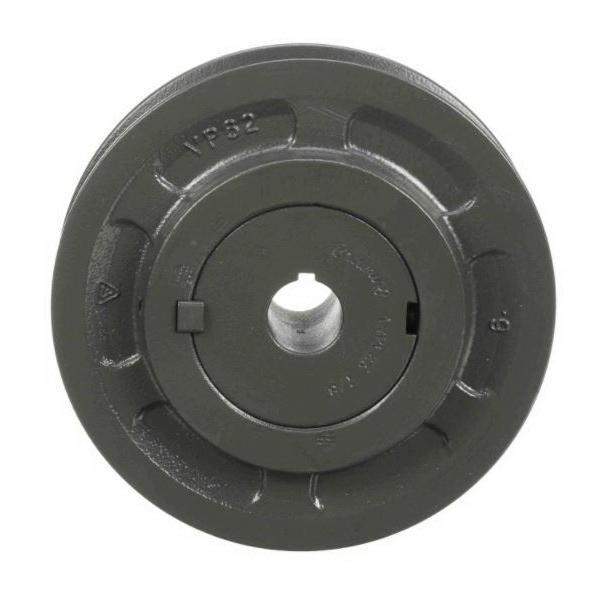

Browning 1VP62X7/8 Variable Pitch Sheave, 7/8 in Dia Bore, Finished Bore, 5.95 in OD, 1-Groove

Browning® VP Series 1VP62X7/8 Variable Pitch Sheave, 7/8 in Dia Bore, Finished Bore, 5.95 in OD, 1 -Groove

Browning® VP Series 1VP62X7/8 Variable Pitch Sheave, 7/8 in Dia Bore, Finished Bore, 5.95 in OD, 1 -Groove 1VP62X7/8

Browning® Variable Pitch Sheave, Series: VP Series, Finished Bore, 7/8 in Bore Diameter, 5.95 in OD, 4.7 to 5.9 in Pitch Diameter, 1 Number of Grooves, 7/8 to 1-1/4 in Face Width, 2-7/32 in Overall Length, Iron, For Use With: 4L, 5L, 5V, A and B Cross Section Belts

Bore Diameter      :      7/8 in
Bore Type      :      Finished
Face Width      :      7/8 to 1-1/4 in
Material      :      Iron
Number of Grooves      :      1
Outside Diameter      :      5.95 in
Overall Length      :      2-7/32 in
Pitch Diameter      :      4.7 to 5.9 in
Series      :      VP Series
Suitable For Use With      :      4L, 5L, 5V, A and B Cross Section Belts
  • Largest selection in the industry, Browning® offers the widest range of variable speed sheaves in the market today
  • VP sheaves consist of a male with a threaded barrel and a female with a threaded bore
  • The male section with threaded barrel has flat surfaces at 180 deg increments that allow a flat surface for the setscrew to mate with
  • When discs are moved toward each other, the belt rides higher in the groove and the pitch diameter of the sheave is larger which increases the driven speed
  • When discs are moved away from each other, the belt rides lower and the pitch diameter is smaller decreasing the driven speed
