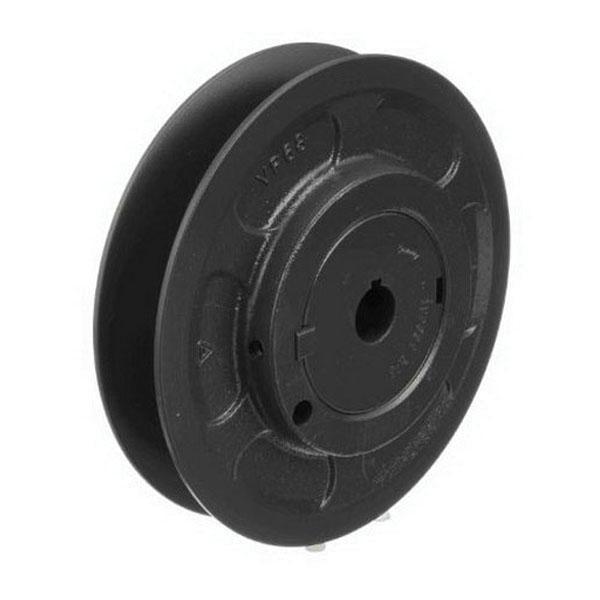

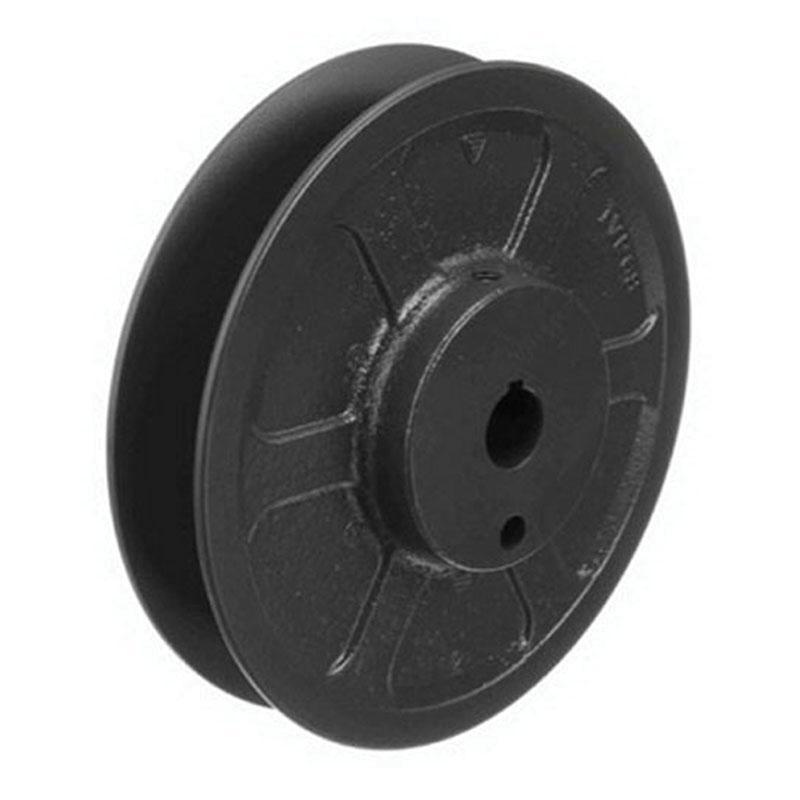

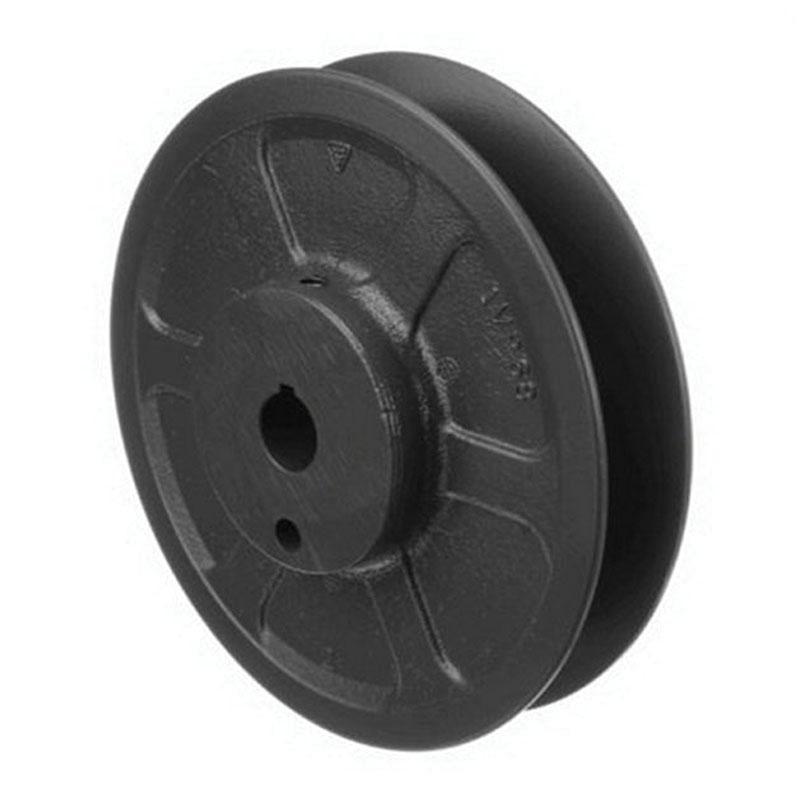

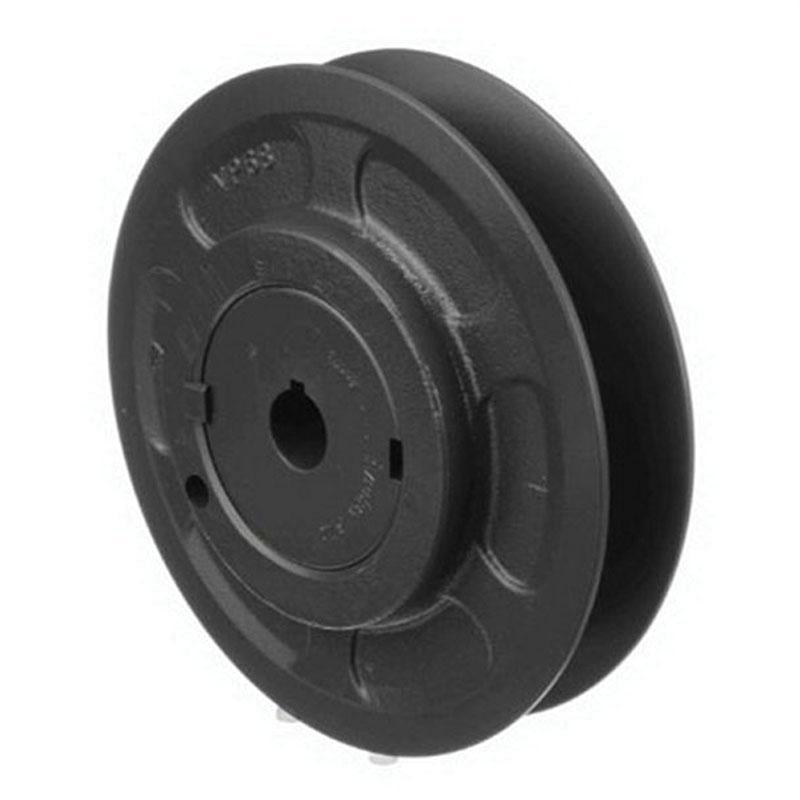

Browning® 1VP68X3/4 1VP68X3/4

Browning 1VP68X3/4 FHP Variable Pitch Sheave, Finished Bore, 3/4 in Dia Bore, 5.2 to 6.4 in Dia Pitch

Browning® 1VP68X3/4 FHP Variable Pitch Sheave, Finished Bore, 3/4 in Dia Bore, 5.2 to 6.4 in Dia Pitch

Browning® 1VP68X3/4 FHP Variable Pitch Sheave, Finished Bore, 3/4 in Dia Bore, 5.2 to 6.4 in Dia Pitch 1VP68X3/4

Browning® FHP Variable Pitch Sheave, Finished Bore, 3/4 in Bore Diameter, 4L, 5L, 5V, A, B Belt Section Size, 1 Number of Grooves, 5.2 to 6.4 in Pitch Diameter, Iron

Belt Section Size      :      4L, 5L, 5V, A, B
Bore Diameter      :      3/4 in
Bore Type      :      Finished
Material      :      Iron
Number of Grooves      :      1
Pitch Diameter      :      5.2 to 6.4 in

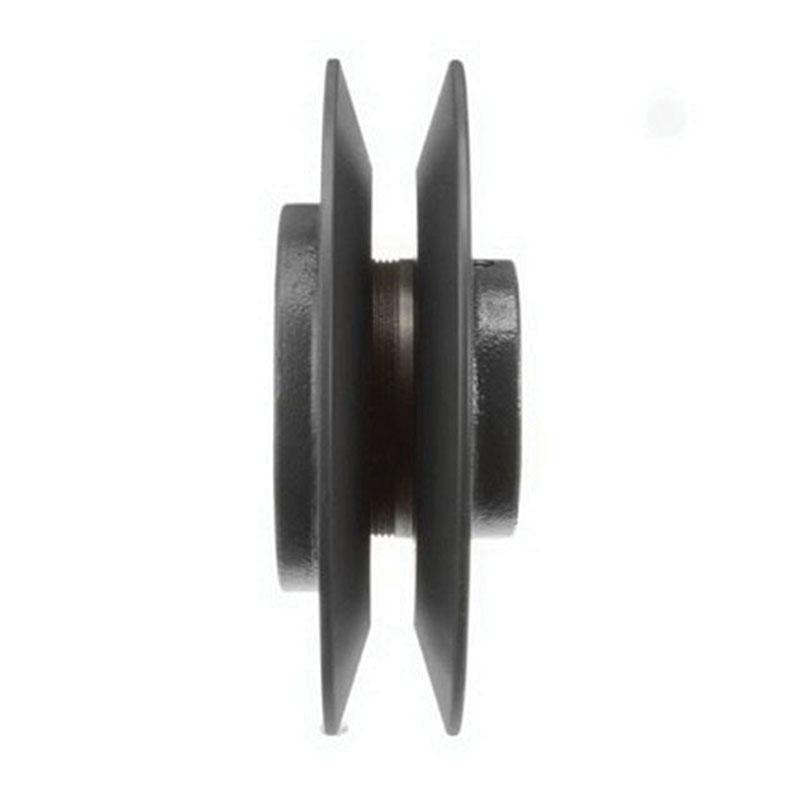

  • VP sheaves consist of a male with a threaded barrel and a female with a threaded bore
  • The male section with threaded barrel has flat surfaces at 180 deg increments that allow a flat surface for the setscrew to mate with
  • When discs are moved toward each other, the belt rides higher in the groove and the pitch diameter of the sheave is larger which increases the driven speed
  • When discs are moved away from each other, the belt rides lower and the pitch diameter is smaller decreasing the driven speed
  • pdfInstruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/Browning_1VP65X1-1_8_Instruction_Installation_Manual.pdf
  • pdfLine Drawing https://assets.unilogcorp.com/267/ITEM/DOC/Browning_1VP65X1-1_8_Line_Drawing.pdf
