Browning® 2AK124H 2AK124H

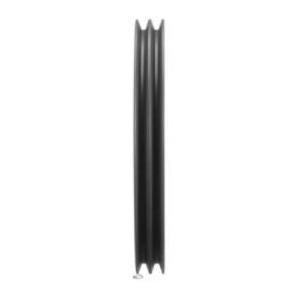

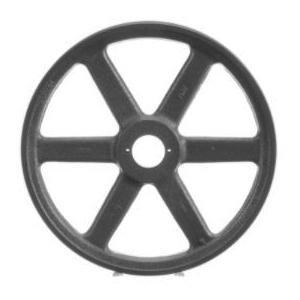

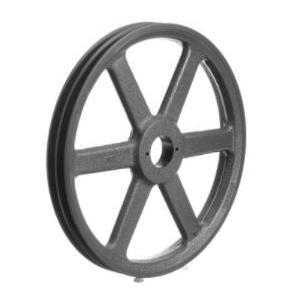

Browning 2AK124H FHP Sheave, 3/8 in Dia Bore, Split Taper Bushed Bore, 12-1/4 in OD, 2-Groove, 1-3/8 in W Face

Browning® 2AK124H FHP Sheave, 3/8 in Dia Bore, Split Taper Bushed Bore, 12-1/4 in OD, 2 -Groove, 11.66 in Dia Pitch

Browning® 2AK124H FHP Sheave, 3/8 in Dia Bore, Split Taper Bushed Bore, 12-1/4 in OD, 2 -Groove, 11.66 in Dia Pitch 2AK124H

Browning® FHP Sheave, Split Taper Bushed Bore, 3/8 in Bore Diameter, 12-1/4 in OD, 11.66 in Pitch Diameter, 2 Number of Grooves, 1-3/8 in Face Width, 1-1/2 in Overall Length, Iron

Bore Diameter      :      3/8 in
Bore Type      :      Split Taper Bushed
Face Width      :      1-3/8 in
Material      :      Iron
Number of Grooves      :      2
Outside Diameter      :      12-1/4 in
Overall Length      :      1-1/2 in
Pitch Diameter      :      11.66 in
  • Largest selection of H bushed sheaves of any other manufacturer - Browning® offers bushed sheaves in both A and B combination (A/B) configuration, 1 and 2 grooves are available to meet any fractional horsepower requirement
  • Sheaves are statically balanced - all sheaves are statically balanced to assure smooth, vibration-free performance
  • Close grain cast iron - close grain cast iron allows browning to machine our sheaves to the closest tolerances possible
