Browning® 2AK25X1 2AK25X1

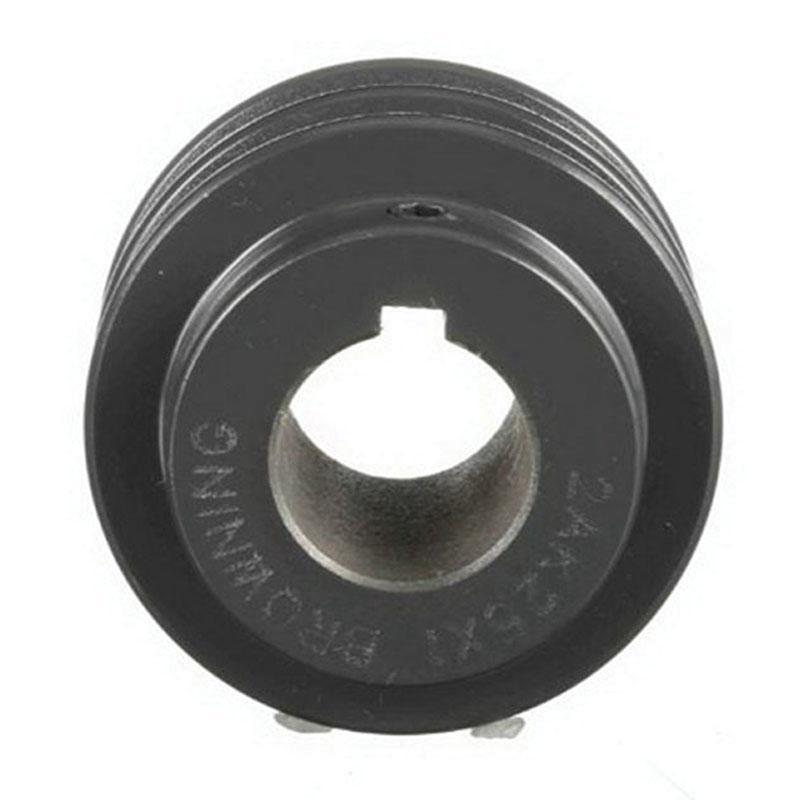

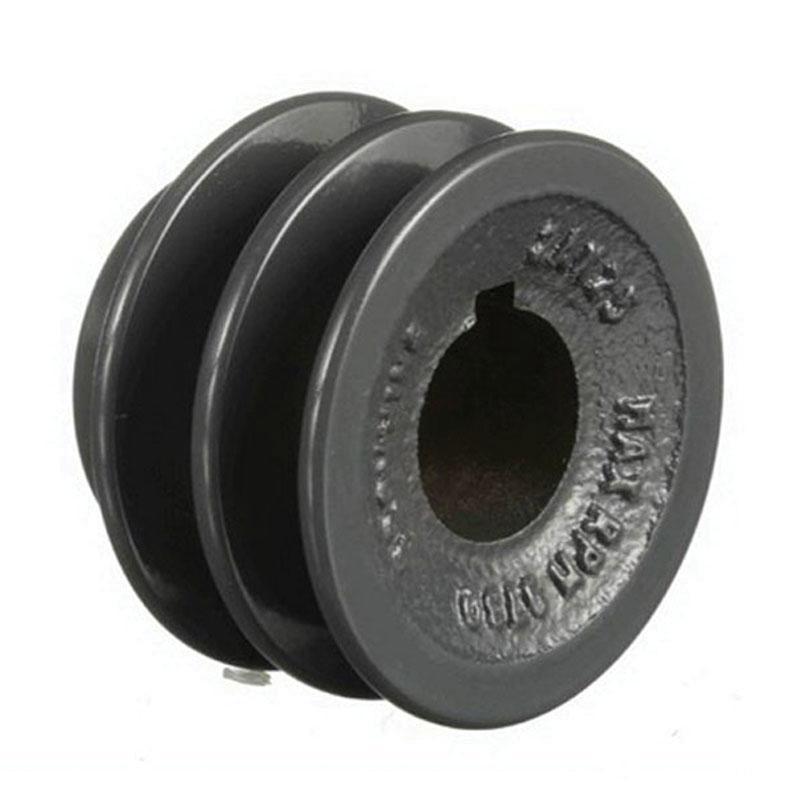

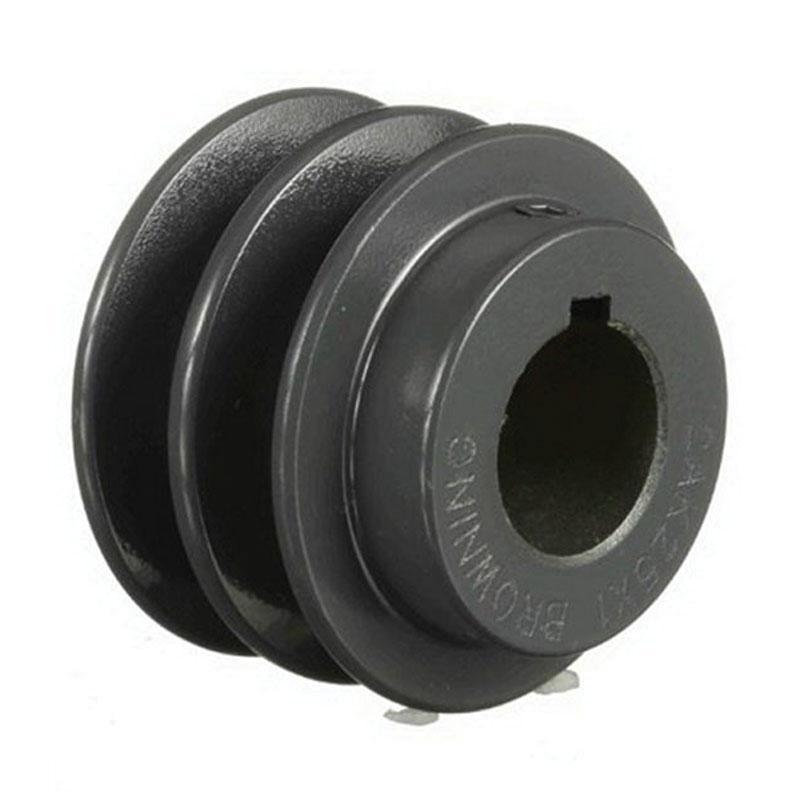

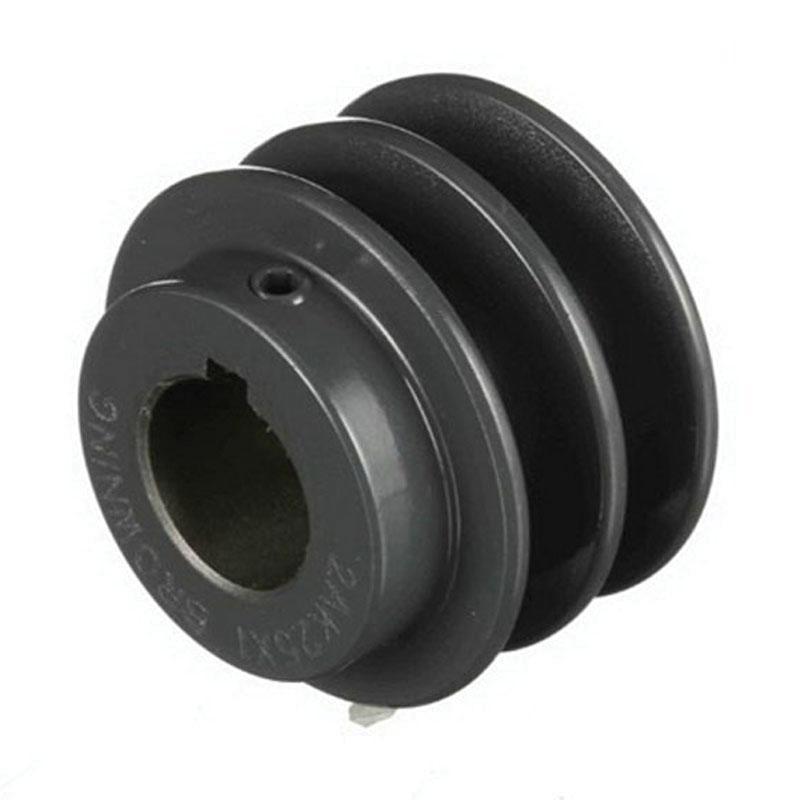

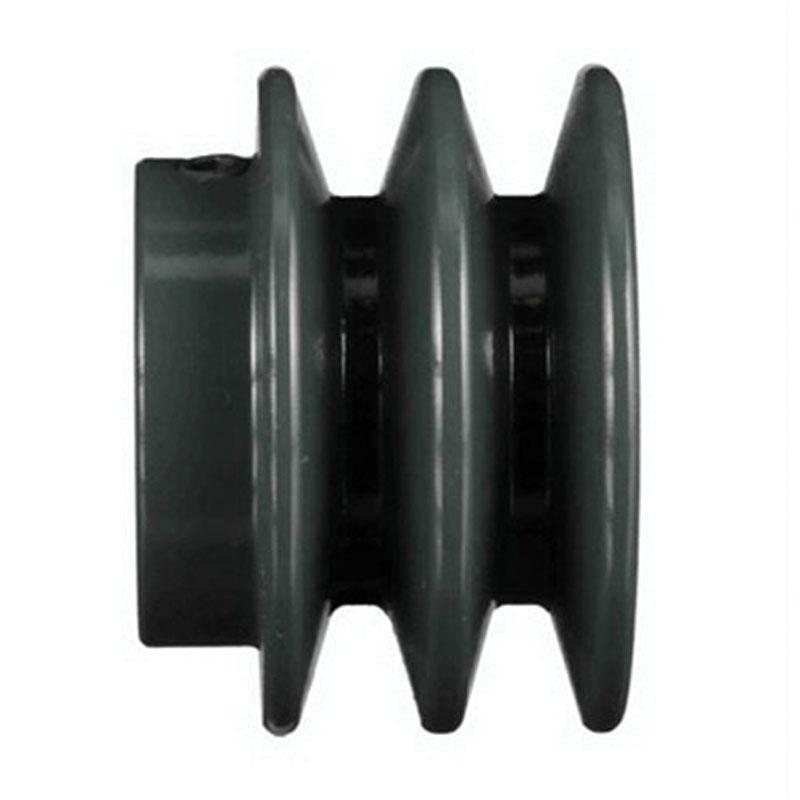

Browning 2AK25X1 FHP Sheave, Finished with Keyway and SS Bore, 1 in Dia Bore, 1-3/8 in W Face, 2.5 in (A) Dia Pitch

Browning® 2AK25X1 FHP Sheave, Finished with Keyway Bore, 1 in Dia Bore, 1-3/8 in W Face, 2.5 in Dia Pitch

Browning® 2AK25X1 FHP Sheave, Finished with Keyway Bore, 1 in Dia Bore, 1-3/8 in W Face, 2.5 in Dia Pitch 2AK25X1

Browning® FHP Sheave, Finished with Keyway Bore, 1 in Bore Diameter, 3L, A Belt Section Size, 2 Number of Grooves, 2.5 in Pitch Diameter, 1-3/8 in Face Width, 1/4 in Keyway Size, Iron, 1.84 in W

Belt Section Size      :      3L, A
Bore Diameter      :      1 in
Bore Type      :      Finished with Keyway
Dimensions      :      1.84 in W
Face Width      :      1-3/8 in
Keyway Size      :      1/4 in
Material      :      Iron
Number of Grooves      :      2
Pitch Diameter      :      2.5 in
  • Largest selection of H bushed sheaves of any other manufacturer, Browning offers bushed sheaves in both A and B combination (A/B) configuration
  • Sheaves are statically balanced, all sheaves are statically balanced to assure smooth, vibration-free performance
  • Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
  • pdfLine Drawing https://assets.unilogcorp.com/267/ITEM/DOC/Browning_2AK20X1_2_Line_Drawing.pdf
