Browning® 2B5V80 2B5V80

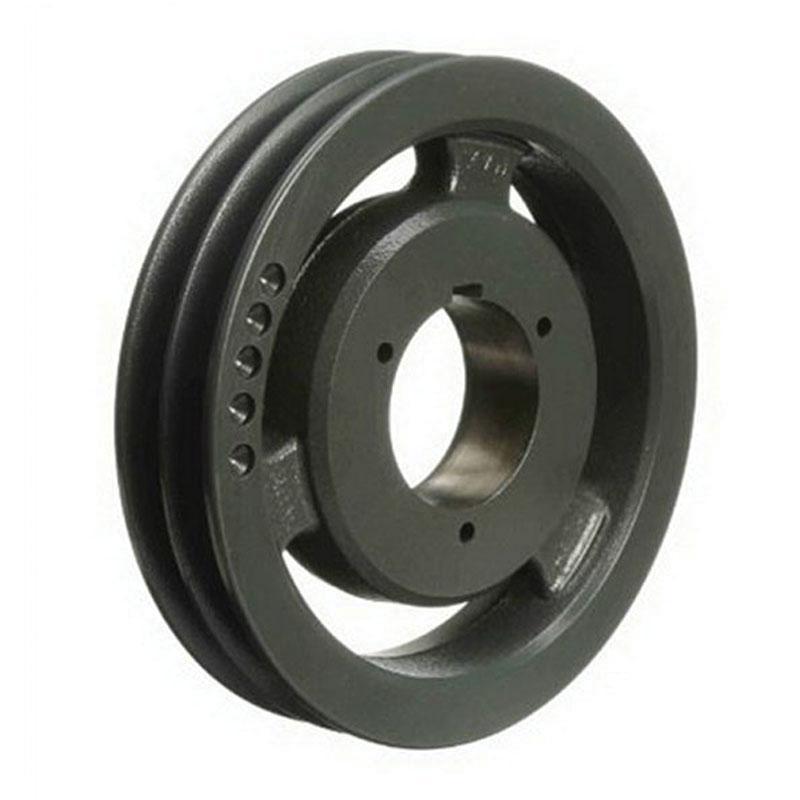

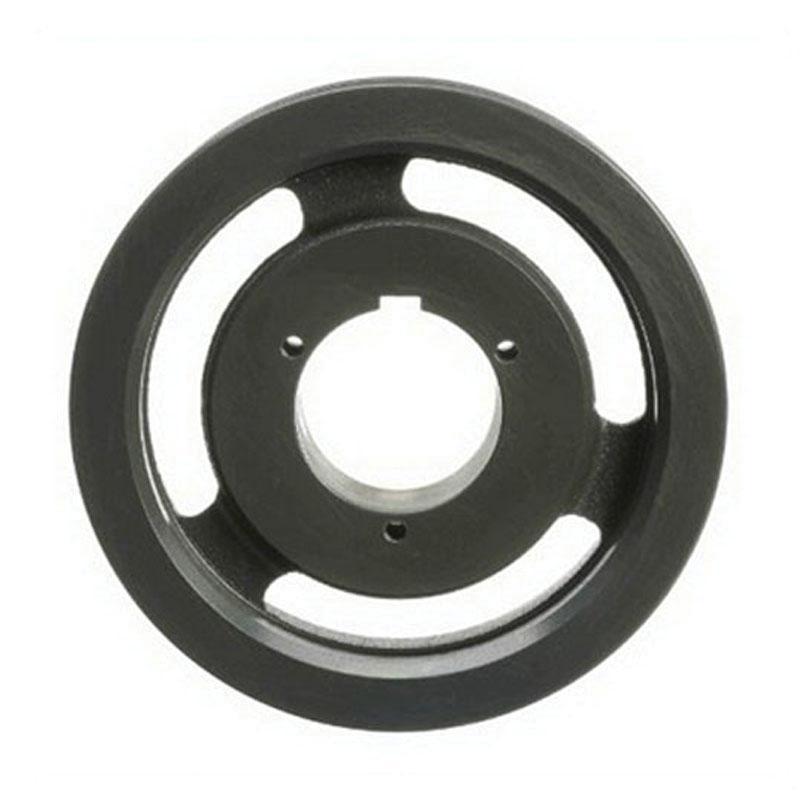

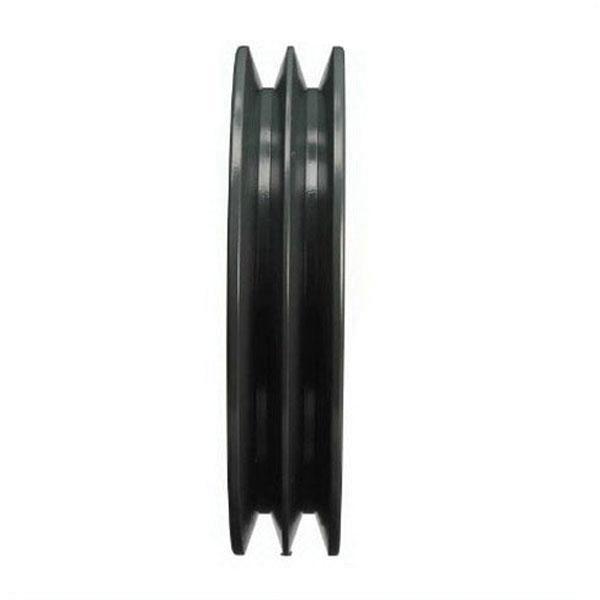

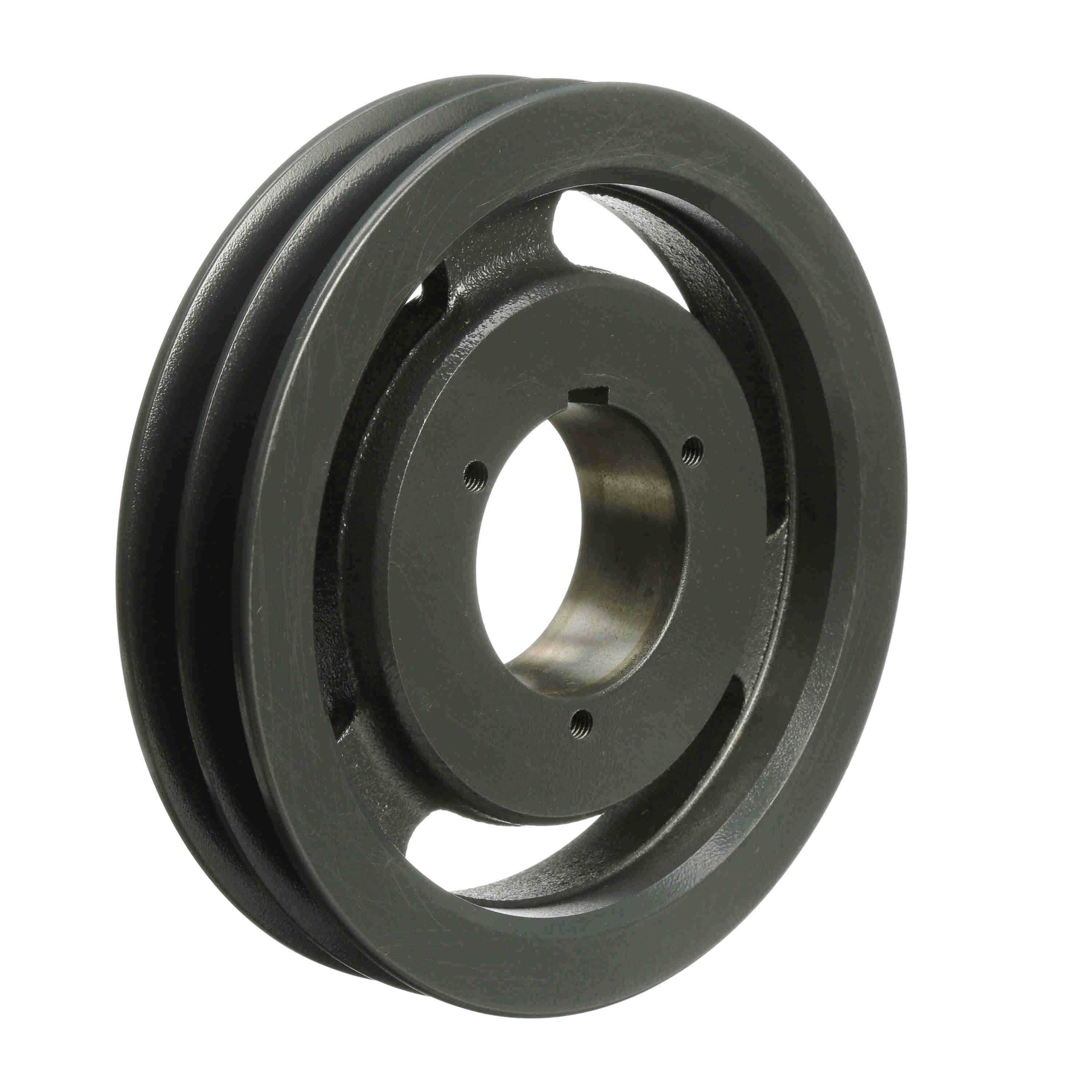

Browning 2B5V80 Multiple Sheave, Split Taper Bushed Bore, 1/2 in Dia Bore, 1.71 in W Face

Browning® 2B5V80 Multiple Sheave, Split Taper Bushed Bore, 1/2 in Dia Bore, 1.71 in W Face, 7.8 in Dia Pitch

Browning® 2B5V80 Multiple Sheave, Split Taper Bushed Bore, 1/2 in Dia Bore, 1.71 in W Face, 7.8 in Dia Pitch 2B5V80

Browning® Multiple Sheave, Model: 2B5V-SheaveMaster, Split Taper Bushed Bore, 1/2 in Bore Diameter, 5V, A, B Belt Section Size, 2 Number of Grooves, 7.8 in Pitch Diameter, 1.71 in Face Width, 1/2 in Keyway Size, Iron, 2.54 in L x 2.48 in W

Belt Section Size      :      5V, A, B
Bore Diameter      :      1/2 in
Bore Type      :      Split Taper Bushed
Dimensions      :      2.54 in L x 2.48 in W
Face Width      :      1.71 in
Keyway Size      :      1/2 in
Material      :      Iron
Model      :      2B5V-SheaveMaster
Number of Grooves      :      2
Pitch Diameter      :      7.8 in
  • All Browning B5V sheaves permit the running of A, 4L, B, 5L and 5V belts to be run in them, thus providing a variety of different pitch diameters and horsepower
  • Incorporates Browning split taper bushing, the only bushing system that provides a true key-to-key drive to both the shaft and the hub
  • New casting design, the B5V castings were developed using cad and finite elements analysis to determine where to add and eliminate material
  • pdfInstruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/Browning_1B5V46_Instruction_Installation_Manual.pdf
  • pdfLine Drawing https://assets.unilogcorp.com/267/ITEM/DOC/Browning_2B5V124_Line_Drawing.pdf
