Browning® 2B62SDS 2B62SDS

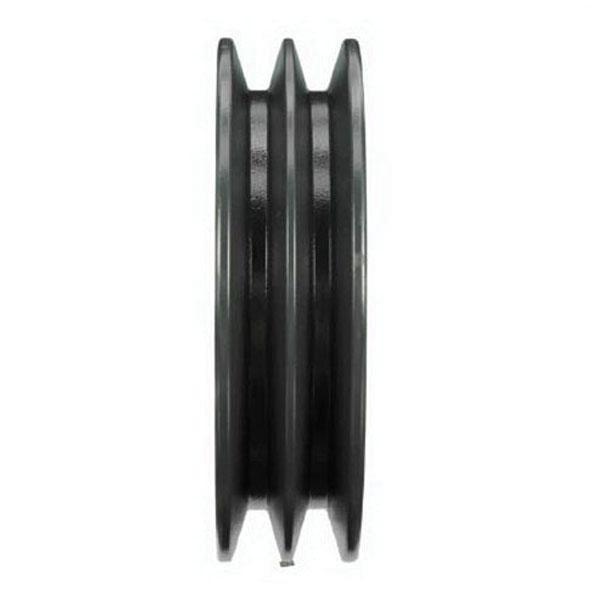

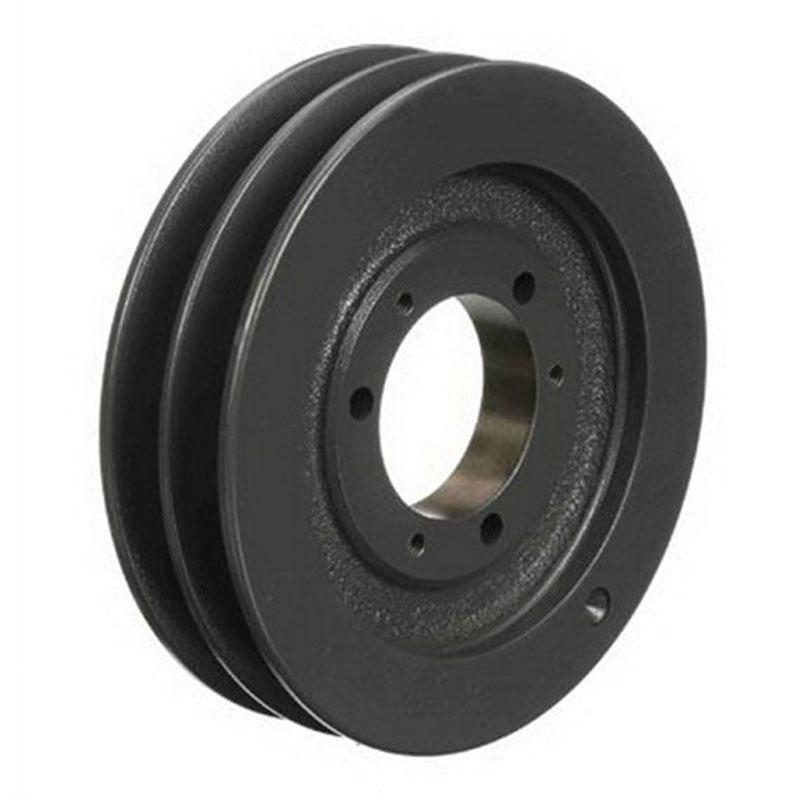

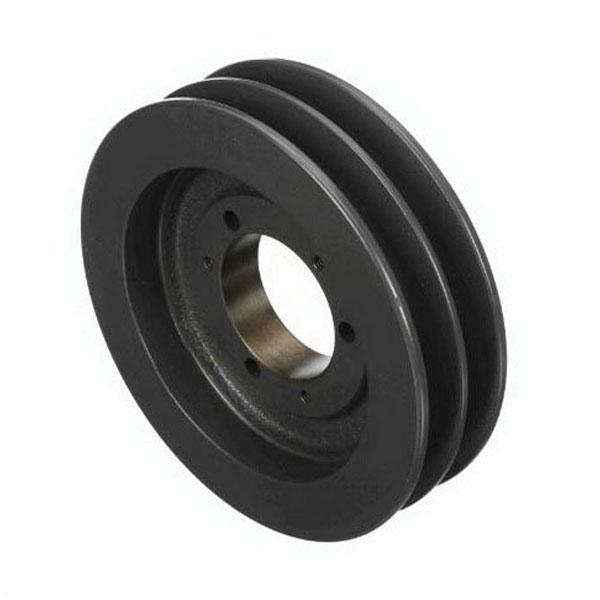

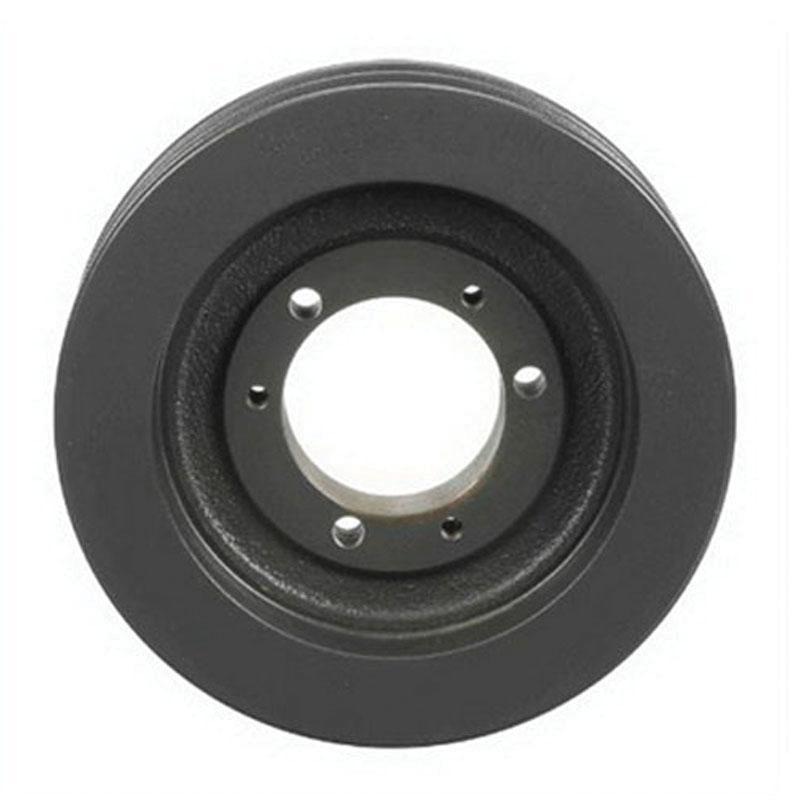

Browning 2B62SDS Multiple Sheave, QD Bushed Bore, 1/2 in Dia Bore, 1-3/4 in W Face, 6 in (A), 6.5 in (B) Dia Pitch

Browning® 2B62SDS Multiple Sheave, Bushed Bore, 1/2 in Dia Bore, 1-3/4 in W Face, 6 in Dia Pitch

Browning® 2B62SDS Multiple Sheave, Bushed Bore, 1/2 in Dia Bore, 1-3/4 in W Face, 6 in Dia Pitch 2B62SDS

Browning® Multiple Sheave, Model: 2AB_LG_SheaveMaster, Bushed Bore, 1/2 in Bore Diameter, A, B Belt Section Size, SDS Bushing Style, 2 Number of Grooves, 6 in Pitch Diameter, 1-5/16 in Length Through Bore, 1-3/4 in Face Width, Iron

Belt Section Size      :      A, B
Bore Diameter      :      1/2 in
Bore Type      :      Bushed
Bushing Style      :      SDS
Face Width      :      1-3/4 in
Length Through Bore      :      1-5/16 in
Material      :      Iron
Model      :      2AB_LG_SheaveMaster
Number of Grooves      :      2
Pitch Diameter      :      6 in
  • All Browning B sheaves permit the running of A and B belts to be run in them, thus providing a variety of different pitch diameters and horsepower
  • Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
  • pdfInstruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/Browning_1B5V46_Instruction_Installation_Manual.pdf
  • pdfLine Drawing https://assets.unilogcorp.com/267/ITEM/DOC/Browning_2B62SDS_Line_Drawing.pdf
