Browning® 1033893 1033893

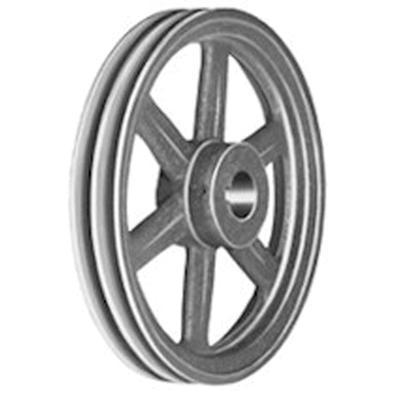

Browning 2BK 1033893 Sheave With Keyway Bore, Finished with Keyway Bore, 1-7/16 in Dia Bore, 1-3/4 in W Face

Browning® 2BK Series 1033893 Sheave With Keyway Bore, Finished with Keyway Bore, 1-7/16 in Dia Bore, 1-3/4 in W Face

Browning® 2BK Series 1033893 Sheave With Keyway Bore, Finished with Keyway Bore, 1-7/16 in Dia Bore, 1-3/4 in W Face 1033893

Browning® Sheave, Series: 2BK Series, Finished with Keyway Bore, 1-7/16 in Bore Diameter, A, B Belt Section Size, 2 Number of Grooves, 6 in Pitch Diameter, 1-19/32 in Length Through Bore, 1-3/4 in Face Width, 3/8 x 3/16 in Keyway Size, Iron, 6-3/4 in OD x 1-19/32 in L

Belt Section Size      :      A, B
Bore Diameter      :      1-7/16 in
Bore Type      :      Finished with Keyway
Dimensions      :      6-3/4 in OD x 1-19/32 in L
Face Width      :      1-3/4 in
Keyway Size      :      3/8 x 3/16 in
Length Through Bore      :      1-19/32 in
Material      :      Iron
Number of Grooves      :      2
Pitch Diameter      :      6 in
Series      :      2BK Series
  • Largest selection of finished bore sheaves of any other manufacturer-Browning offers finished bore sheaves in both A and B combination (A/B) Configuration. 1, 2 and 3 grooves are available to meet any fractional horsepower requirement
  • Combination groove-all Browning BK sheaves permit the running of A, 4L, B and 5L belts to be run in them, thus providing a variety of different pitch diameters and horsepowers
  • pdfCatalog https://cx1content.unilogcorp.com/cx1/view/api/asset/v1/dam/assets/ITEM/DOC/file/267/Browning_1045517_Catalog.pdf
  • pdfFull Engineering Drawing https://cx1content.unilogcorp.com/cx1/view/api/asset/v1/dam/assets/ITEM/DOC/file/267/Browning_1033893_Full_Engineering_Drawing.pdf
