Browning® 2BK140H 2BK140H

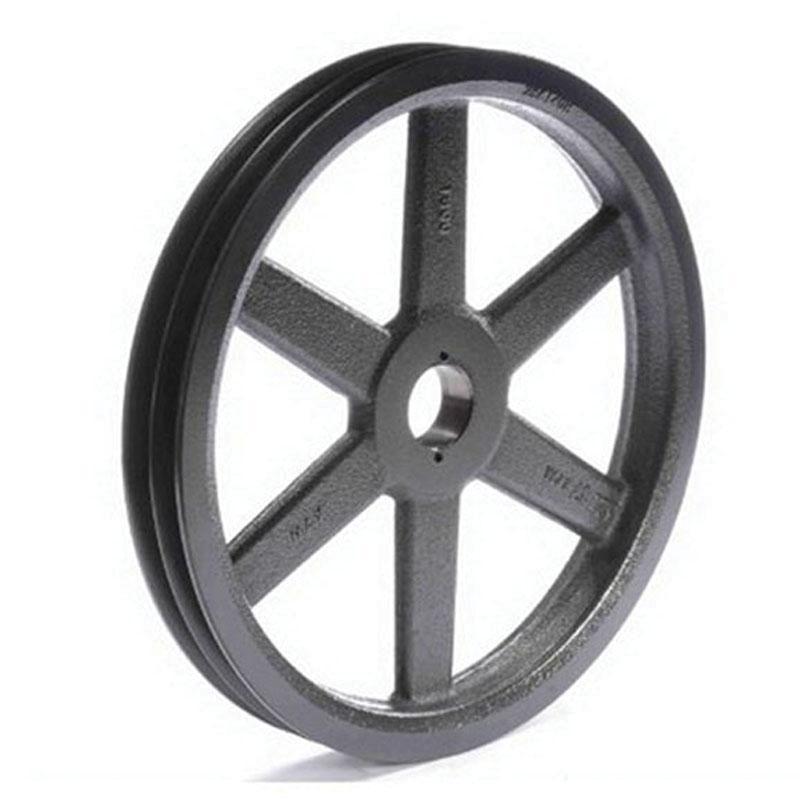

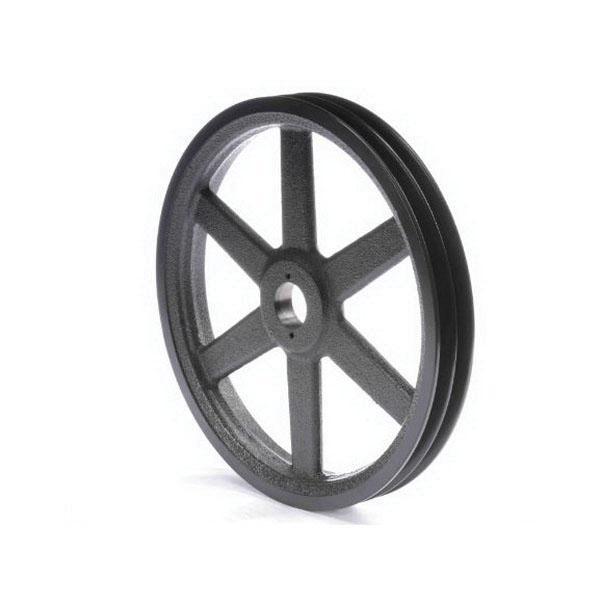

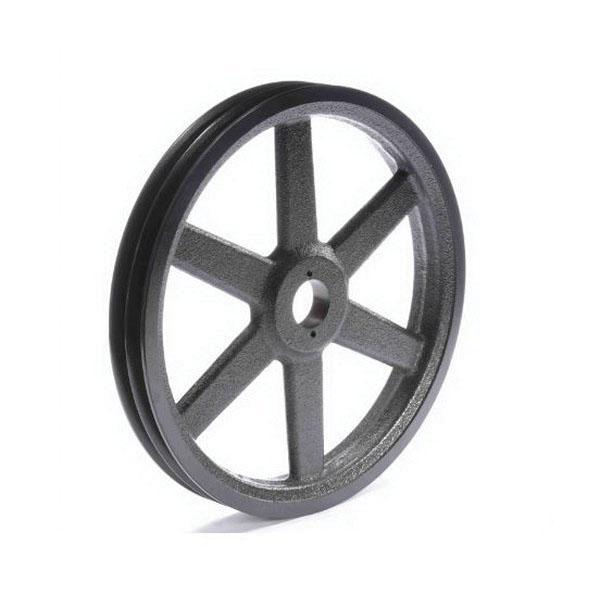

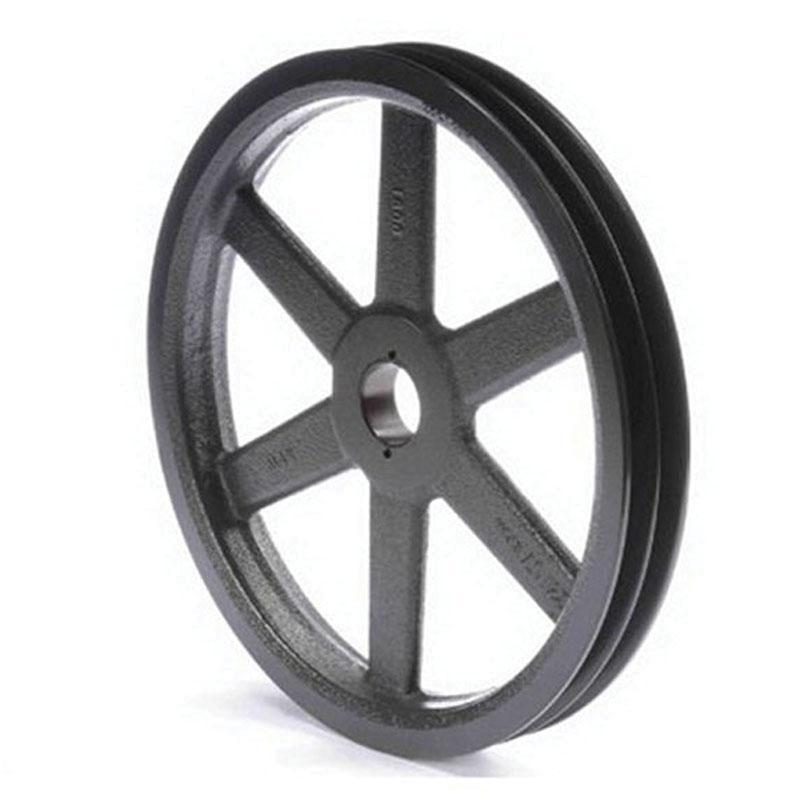

Browning 2BK140H FHP Sheave, Split Taper Bushed Bore, 3/8 in Dia Bore, 1-3/4 in W Face

Browning® 2BK140H FHP Sheave, Split Taper Bushed Bore, 3/8 in Dia Bore, 1-3/4 in W Face, 13.2 in Dia Pitch

Browning® 2BK140H FHP Sheave, Split Taper Bushed Bore, 3/8 in Dia Bore, 1-3/4 in W Face, 13.2 in Dia Pitch 2BK140H

Browning® FHP Sheave, Model: 2BKH_Sheave_Master, Split Taper Bushed Bore, 3/8 in Bore Diameter, 4L, 5L, A, B Belt Section Size, 2 Number of Grooves, 13.2 in Pitch Diameter, 1-3/4 in Face Width, Iron, 1-3/4 in L x 1-3/4 in W

Belt Section Size      :      4L, 5L, A, B
Bore Diameter      :      3/8 in
Bore Type      :      Split Taper Bushed
Dimensions      :      1-3/4 in L x 1-3/4 in W
Face Width      :      1-3/4 in
Material      :      Iron
Model      :      2BKH_Sheave_Master
Number of Grooves      :      2
Pitch Diameter      :      13.2 in
  • Largest selection of H bushed sheaves of any other manufacturer, Browning offers bushed sheaves in both A and B combination (A/B) configuration
  • Sheaves are statically balanced, all sheaves are statically balanced to assure smooth, vibration-free performance
  • Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
  • All Browning BK H sheaves permit the running of A, 4L, B and 5L belts to be run in them, thus providing a variety of different pitch diameters and horsepower
  • pdfLine Drawing https://assets.unilogcorp.com/267/ITEM/DOC/Browning_2BK140H_Line_Drawing.pdf
