Browning® 2BK45H 2BK45H

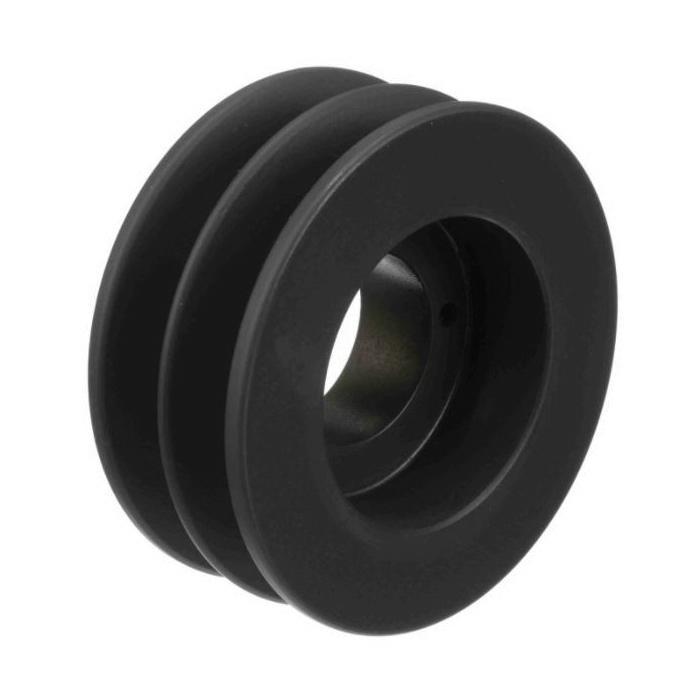

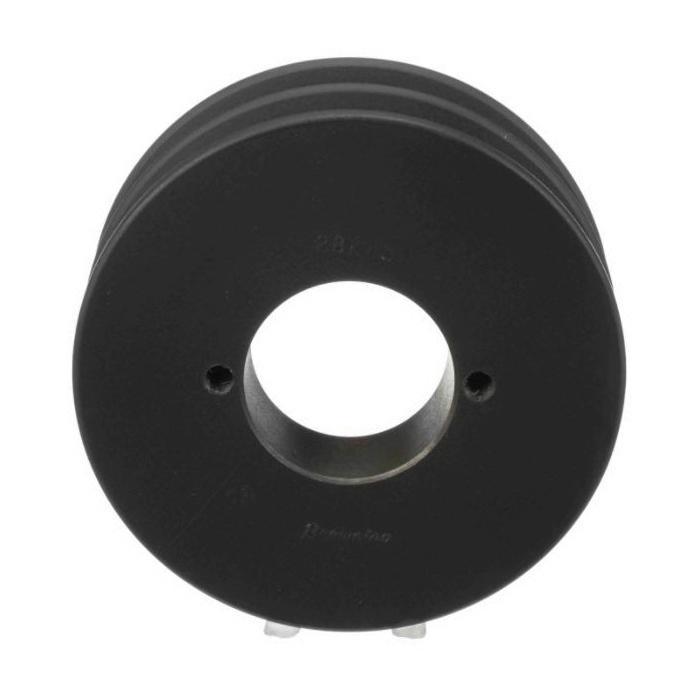

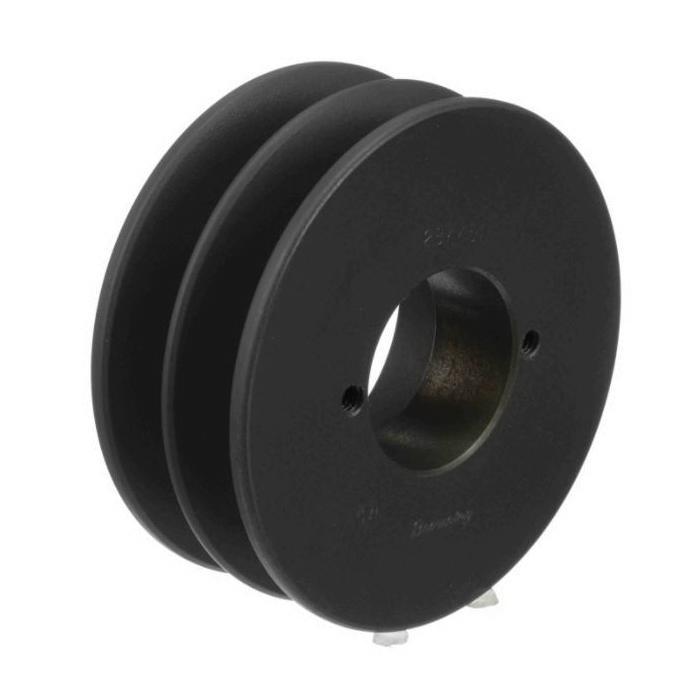

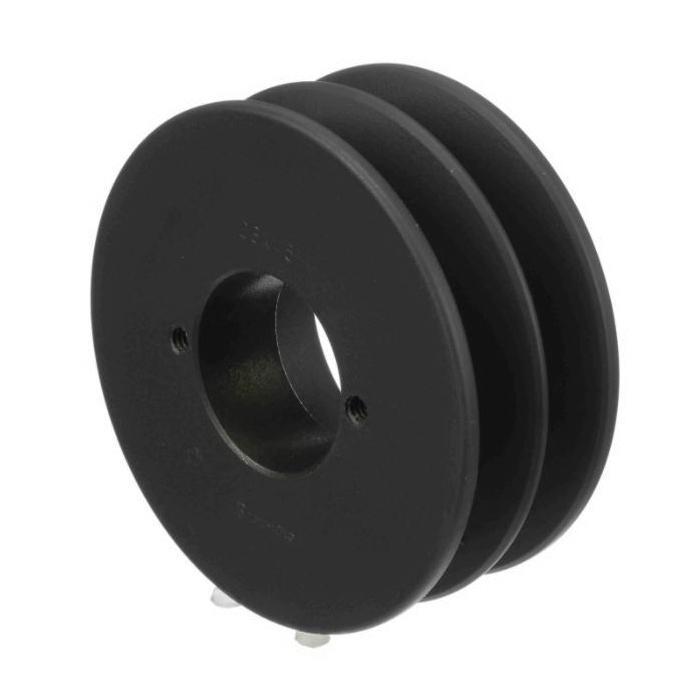

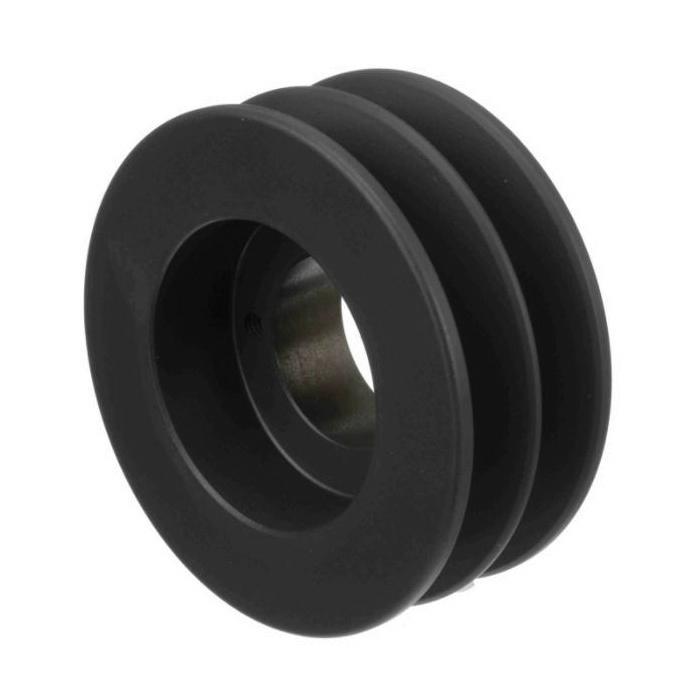

Browning 2BK45H V-Belt Sheave, 3/8 to 1-1/2 in Dia Bore, Bushed Bore, 4-1/4 in OD, 2-Groove, 4.2 in Dia Pitch

Browning® 2BK45H V-Belt Sheave, 3/8 to 1-1/2 in Dia Bore, Bushed Bore, 4-1/4 in OD, 2 -Groove, 4.2 in Dia Pitch

Browning® 2BK45H V-Belt Sheave, 3/8 to 1-1/2 in Dia Bore, Bushed Bore, 4-1/4 in OD, 2 -Groove, 4.2 in Dia Pitch 2BK45H

Browning® V-Belt Sheave, Bushed Bore, 3/8 to 1-1/2 in Bore Diameter, 4-1/4 in OD, 4.2 in Pitch Diameter, 2 Number of Grooves, 1-3/4 in Face Width, Split Taper Bushing Type, 2-3/8 in Overall Length, Iron, For Use With: 3L, 4L/A and 5L/B Cross Section Belts

Bore Diameter      :      3/8 to 1-1/2 in
Bore Type      :      Bushed
Bushing Type      :      Split Taper
Face Width      :      1-3/4 in
Material      :      Iron
Number of Grooves      :      2
Outside Diameter      :      4-1/4 in
Overall Length      :      2-3/8 in
Pitch Diameter      :      4.2 in
Suitable For Use With      :      3L, 4L/A and 5L/B Cross Section Belts
  • Largest selection of H bushed sheaves of any other manufacturer, Browning® offers bushed sheaves in both A and B Combination (A/B) configuration
  • Sheaves are statically balanced, all sheaves are statically balanced to assure smooth, vibration free performance
  • Close grain cast iron allows Browning® to machine our sheaves to the closest tolerances possible
  • Combination groove, all Browning® BK H sheaves permit the running of A, 4L, B and 5L Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers
