Browning® 2BK70X1 2BK70X1

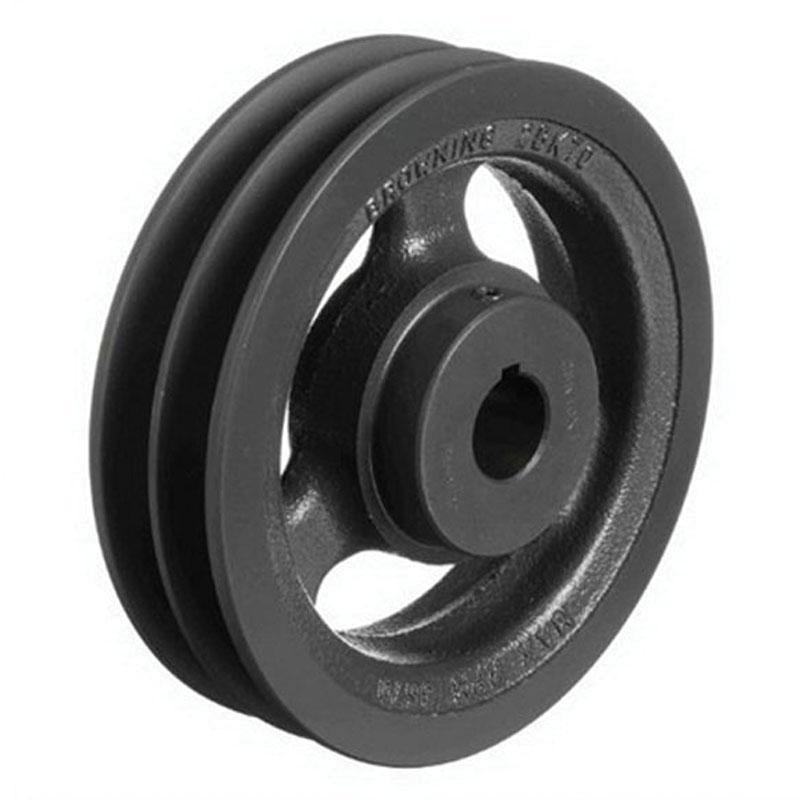

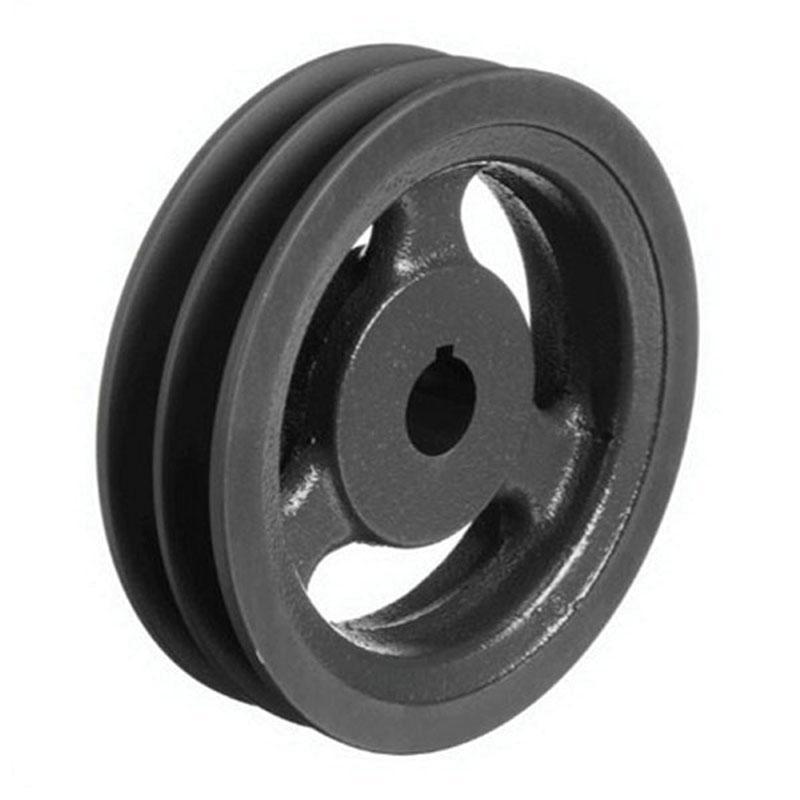

Browning 2BK70X1 FHP Sheave, Finished with Keyway and SS Bore, 1 in Dia Bore, 1-3/4 in W Face

Browning® 2BK70X1 FHP Sheave, Finished with Keyway Bore, 1 in Dia Bore, 1-3/4 in W Face, 6.2 in Dia Pitch

Browning® 2BK70X1 FHP Sheave, Finished with Keyway Bore, 1 in Dia Bore, 1-3/4 in W Face, 6.2 in Dia Pitch 2BK70X1

Browning® FHP Sheave, Model: 2BK_Sheave_Master3, Finished with Keyway Bore, 1 in Bore Diameter, A, B Belt Section Size, 2 Number of Grooves, 6.2 in Pitch Diameter, 1-3/4 in Face Width, 1/4 in Keyway Size, Iron, 2.09 in W

Belt Section Size      :      A, B
Bore Diameter      :      1 in
Bore Type      :      Finished with Keyway
Dimensions      :      2.09 in W
Face Width      :      1-3/4 in
Keyway Size      :      1/4 in
Material      :      Iron
Model      :      2BK_Sheave_Master3
Number of Grooves      :      2
Pitch Diameter      :      6.2 in
  • Largest selection of finished bore sheaves of any other manufacturer, Browning offers finished bore sheaves in both A and B combination (A/B) configuration
  • All Browning BK sheaves permit the running of A, 4L, B and 5L belts to be run in them, thus providing a variety of different pitch diameters and horsepower
  • pdfLine Drawing https://assets.unilogcorp.com/267/ITEM/DOC/Browning_2BK70X1_Line_Drawing.pdf
