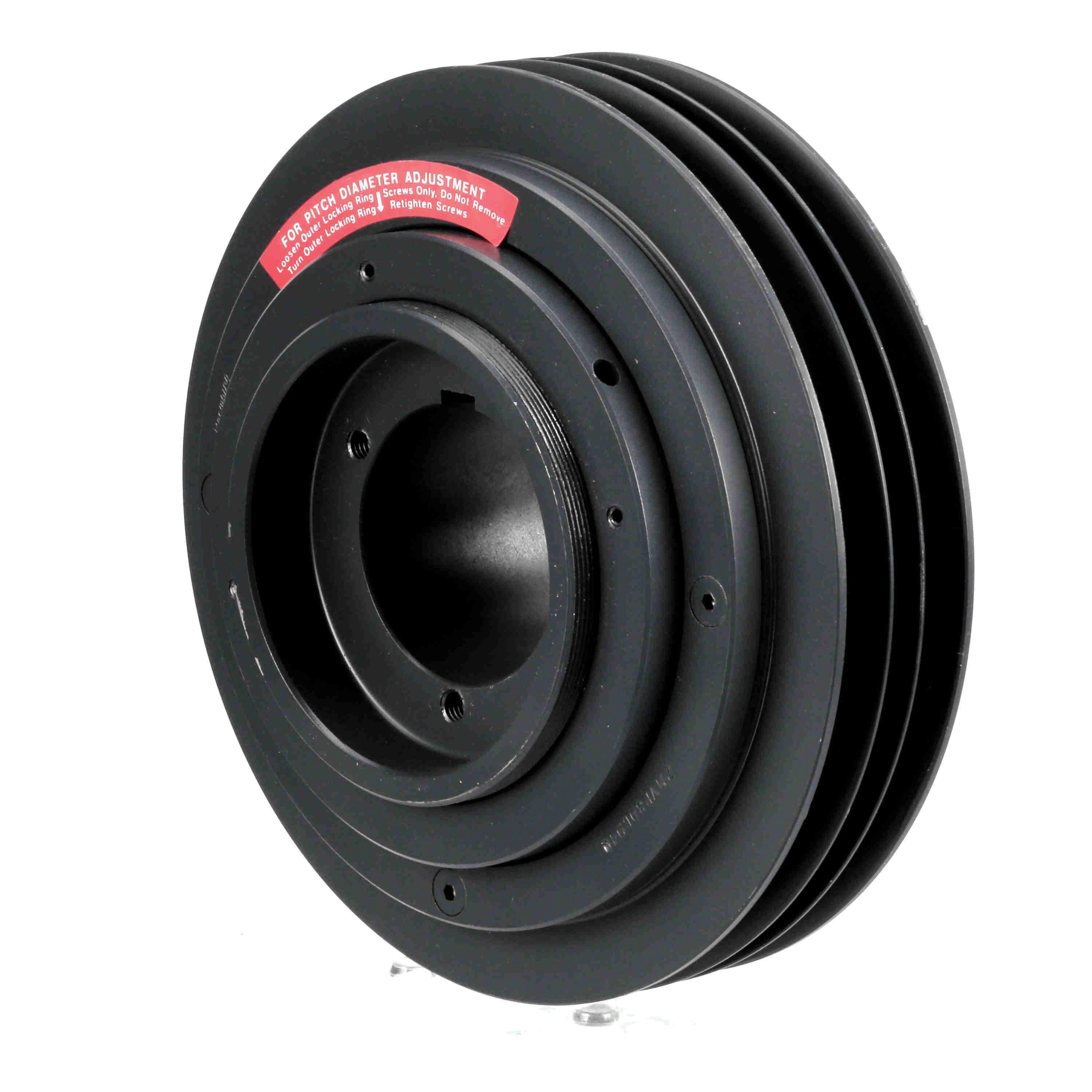

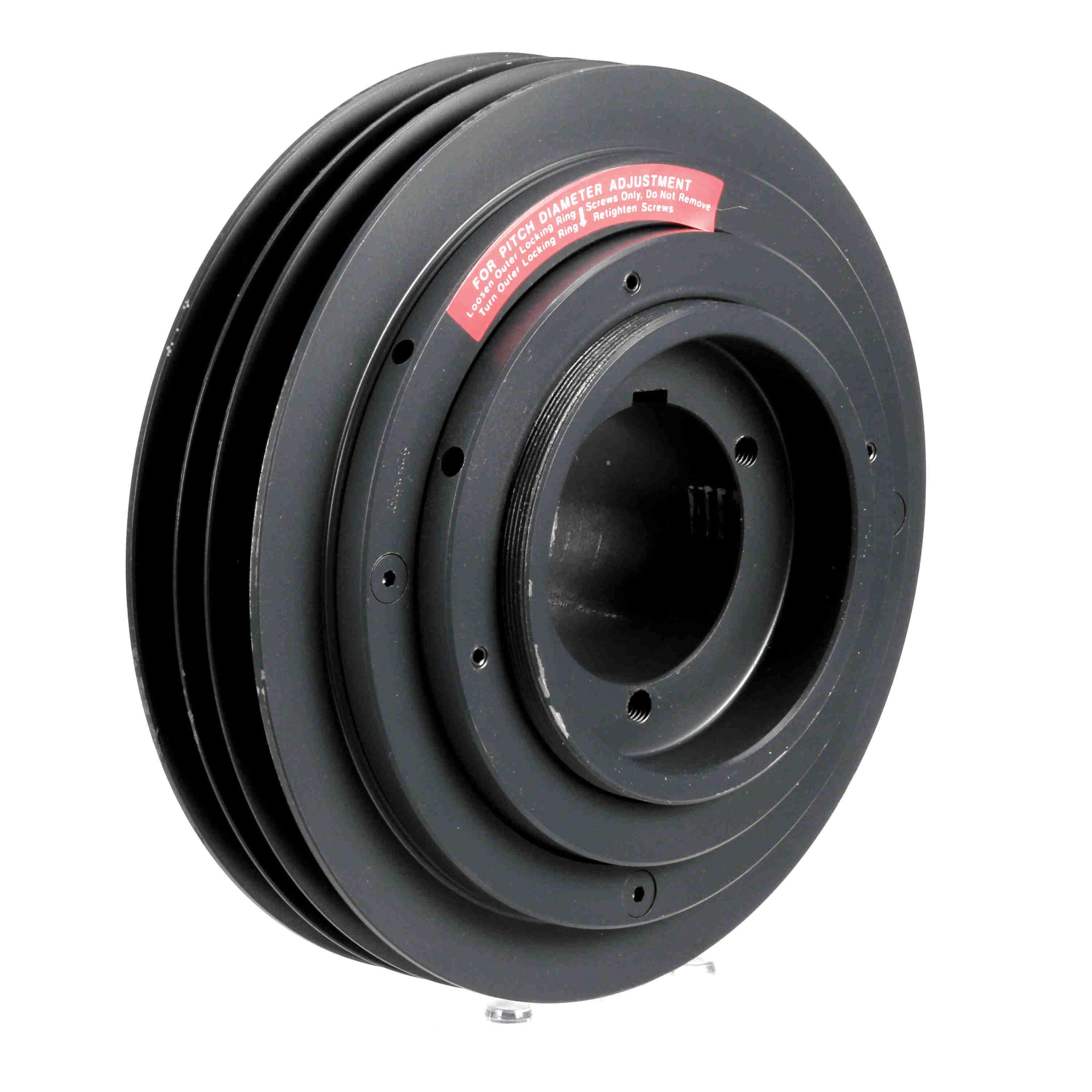

Browning 2MVP80B94Q Multiple Variable Pitch Sheave, Bushed Bore, 2-5/8 in Dia Bore, 1.93 to 2.31 in W Face

Browning® Multiple Variable Pitch Sheave, Bushed Bore, 2-5/8 in Bore Diameter, A, B Belt Section Size, Q2 Bushing Style, 2 Number of Grooves, 9.2 to 8.1 in Pitch Diameter, 1.93 to 2.31 in Face Width, Iron, 9.68 in Dia

• Large selection - MVP companion sheaves are offered in A/B, C, 5 V and 8 V-belt sections and from 3 to 10 grooves giving Browning® the largest selection of MVP companion sheaves in the industry
• Statically balanced - all MVP companion sheaves are statically balanced to assure smooth, vibration-free performance
• VP sheaves consist of a male with a threaded barrel and a female with a threaded bore
• The male section with threaded barrel has flat surfaces at 180 deg increments that allow a flat surface for the setscrew to mate with
• When discs are moved toward each other, the belt rides higher in the groove and the pitch diameter of the sheave is larger which increases the driven speed
• When discs are moved away from each other, the belt rides lower and the pitch diameter is smaller decreasing the driven speed
