Browning® 2P3V60 2P3V60

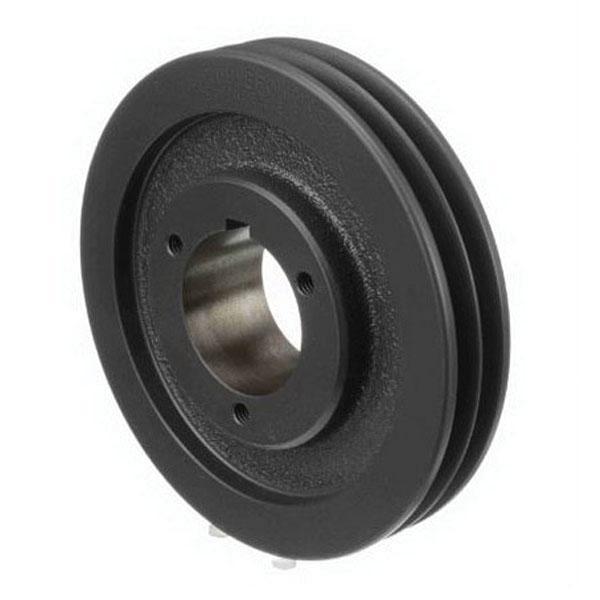

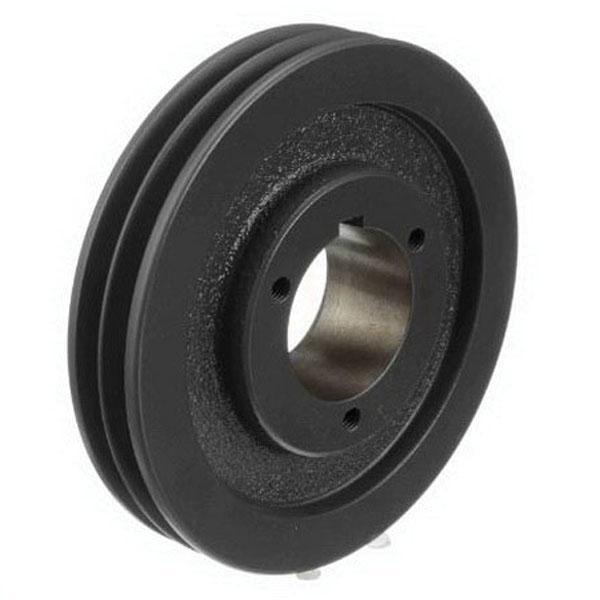

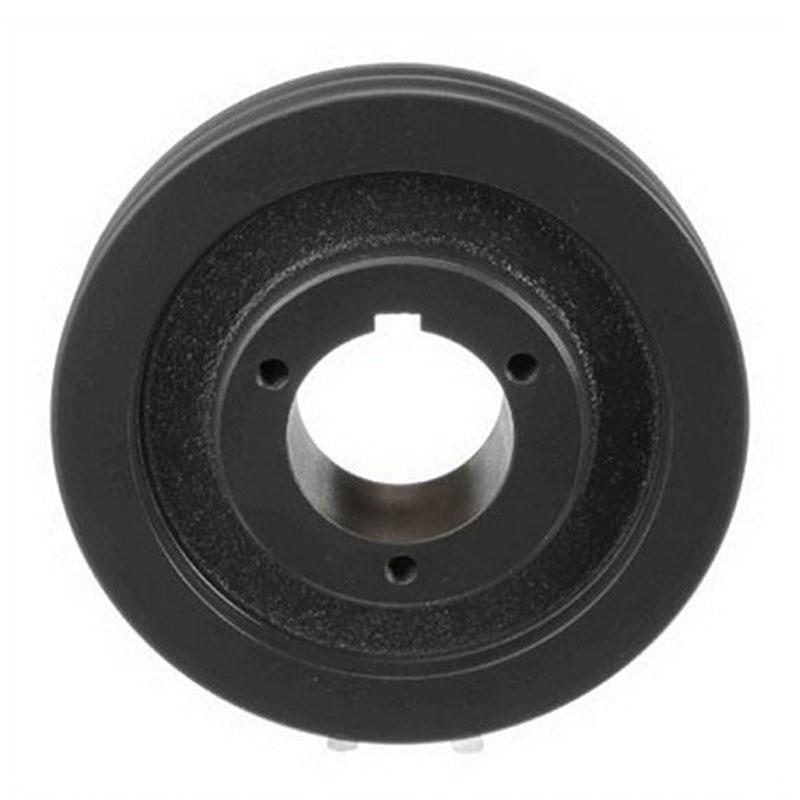

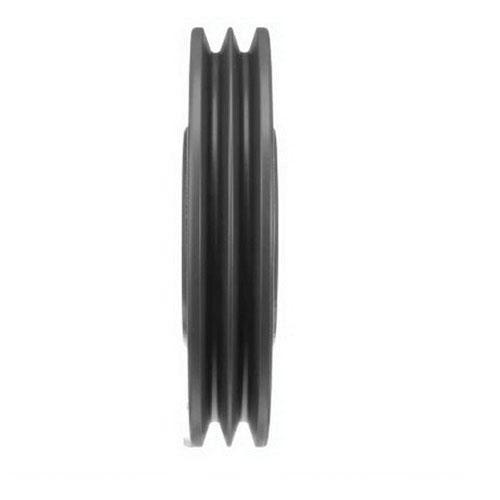

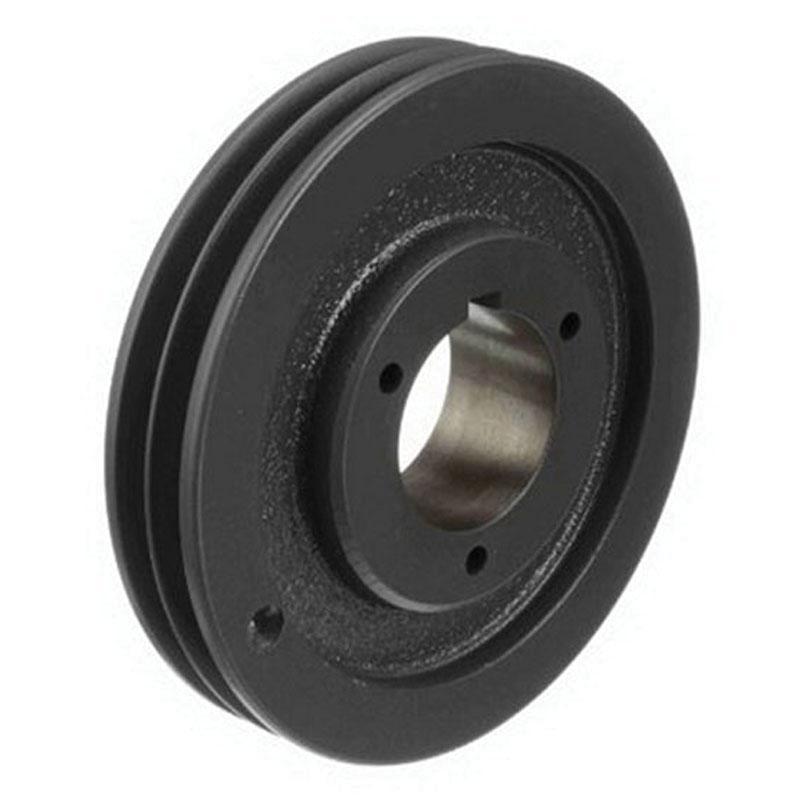

Browning 2P3V60 Multiple Sheave, Bushed Bore, 1.04 in W Face, 5.95 in Dia Pitch

Browning® 2P3V60 Multiple Sheave, Bushed Bore, 1.04 in W Face, 5.95 in Dia Pitch

Browning® 2P3V60 Multiple Sheave, Bushed Bore, 1.04 in W Face, 5.95 in Dia Pitch 2P3V60

Browning® Multiple Sheave, Bushed Bore, 3V Belt Section Size, P1 Bushing Style, 2 Number of Grooves, 5.95 in Pitch Diameter, 1.04 in Face Width, 3/8 in Keyway Size, Iron, 2.14 in L x 2.18 in W

Belt Section Size      :      3V
Bore Type      :      Bushed
Bushing Style      :      P1
Dimensions      :      2.14 in L x 2.18 in W
Face Width      :      1.04 in
Keyway Size      :      3/8 in
Material      :      Iron
Number of Grooves      :      2
Pitch Diameter      :      5.95 in
  • Incorporates Browning split taper bushing, the only bushing system that provides a true key-to-key drive to both the shaft and the hub
  • All sheaves are statically balanced to assure smooth, vibration-free performance
  • Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
  • pdfInstruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/Browning_1B5V46_Instruction_Installation_Manual.pdf
  • pdfLine Drawing https://assets.unilogcorp.com/267/ITEM/DOC/Browning_2P3V60_Line_Drawing.pdf
