Browning® 2Q5V109 2Q5V109

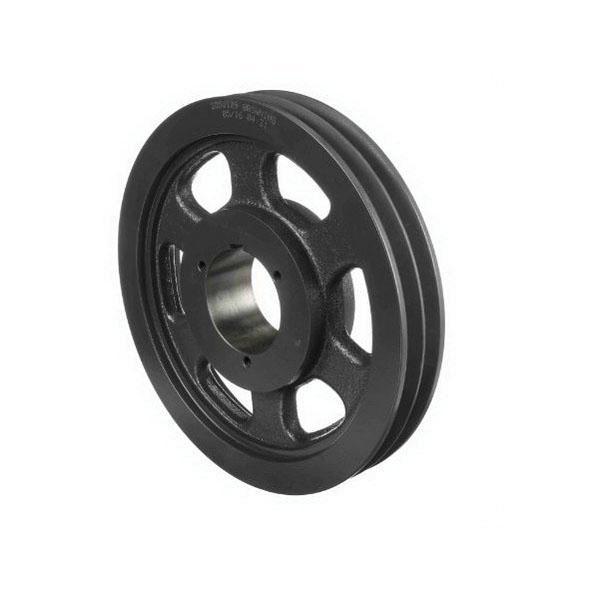

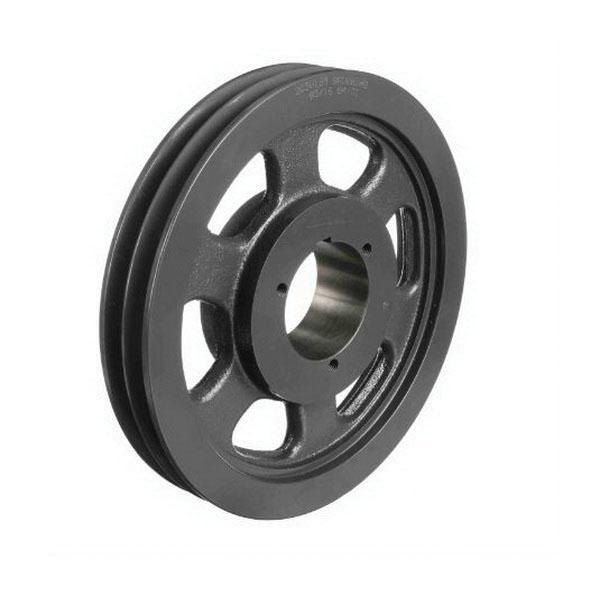

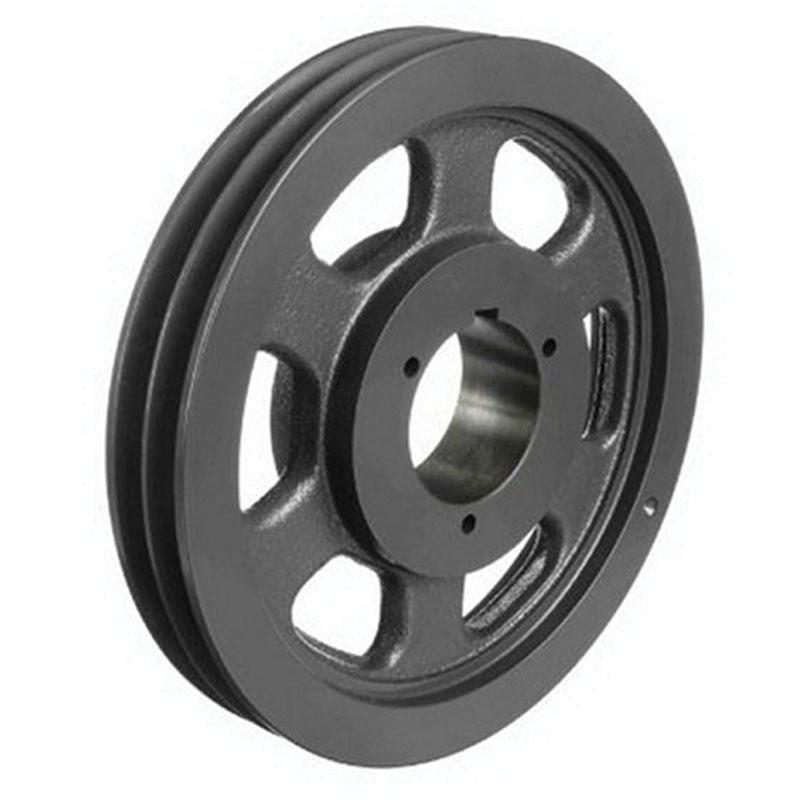

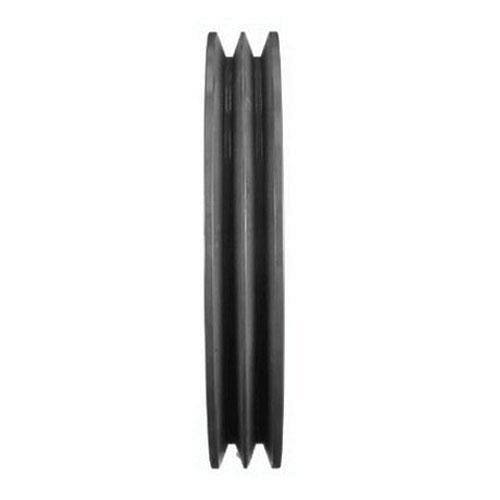

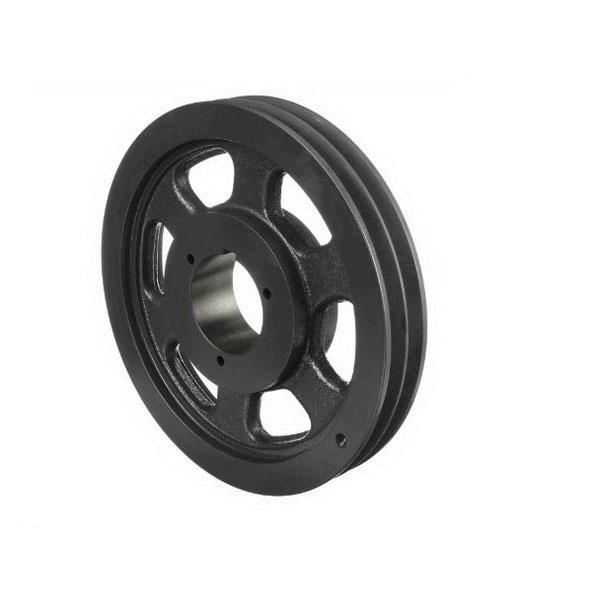

Browning 2Q5V109 Multiple Sheave, Split Taper Bushed Bore, 3/4 in Dia Bore, 1-11/16 in W Face, 10.8 in Dia Pitch

Browning® 2Q5V109 Multiple Sheave, Split Taper Bushed Bore, 3/4 in Dia Bore, 1-11/16 in W Face, 10.8 in Dia Pitch

Browning® 2Q5V109 Multiple Sheave, Split Taper Bushed Bore, 3/4 in Dia Bore, 1-11/16 in W Face, 10.8 in Dia Pitch 2Q5V109

Browning® Multiple Sheave, Split Taper Bushed Bore, 3/4 in Bore Diameter, 5V Belt Section Size, Q1 Bushing Style, 2 Number of Grooves, 10.8 in Pitch Diameter, 1-11/16 in Face Width, 1/2 in Keyway Size, Iron, 2.83 in L x 2.72 in W

Belt Section Size      :      5V
Bore Diameter      :      3/4 in
Bore Type      :      Split Taper Bushed
Bushing Style      :      Q1
Dimensions      :      2.83 in L x 2.72 in W
Face Width      :      1-11/16 in
Keyway Size      :      1/2 in
Material      :      Iron
Number of Grooves      :      2
Pitch Diameter      :      10.8 in
  • Incorporates Browning split taper bushing, the only bushing system that provides a true key-to-key drive to both the shaft and the hub
  • All sheaves are statically balanced to assure smooth, vibration-free performance
  • Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
  • pdfInstruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/Browning_1B5V46_Instruction_Installation_Manual.pdf
  • pdfLine Drawing https://assets.unilogcorp.com/267/ITEM/DOC/Browning_2Q5V109_Line_Drawing.pdf
