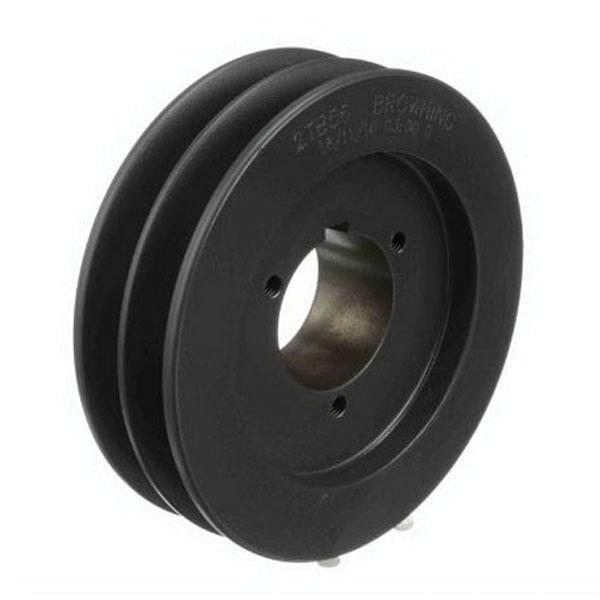

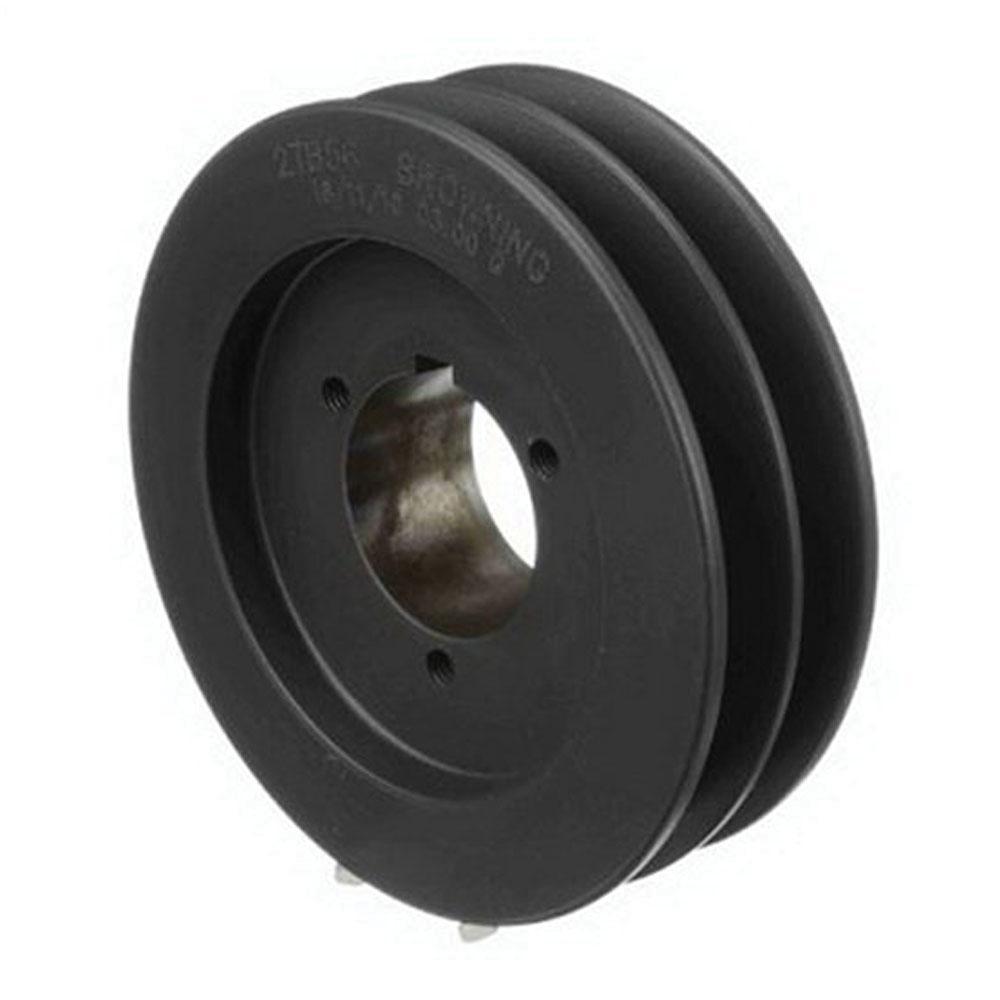

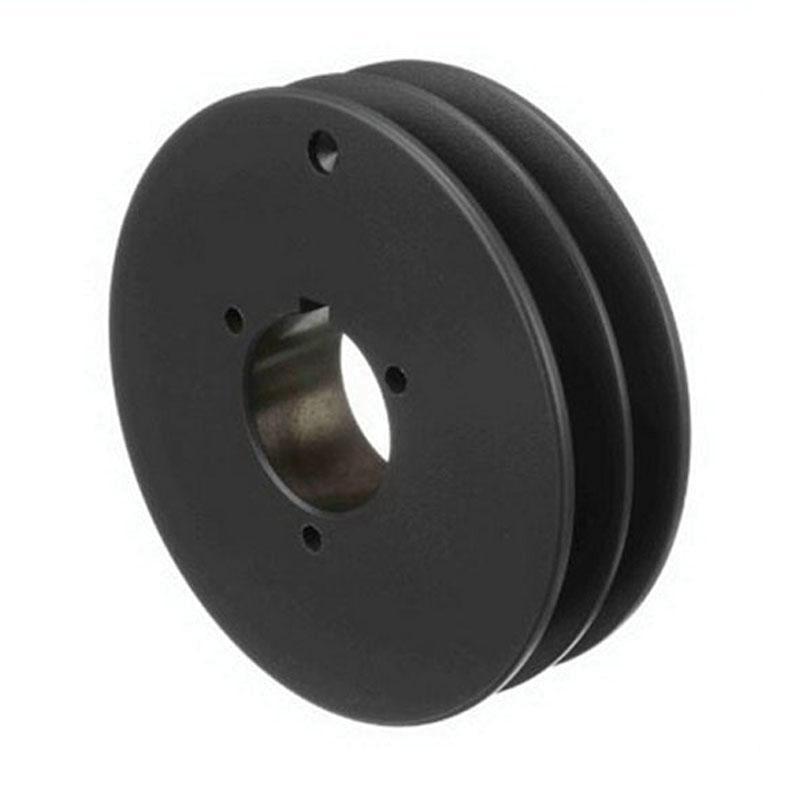

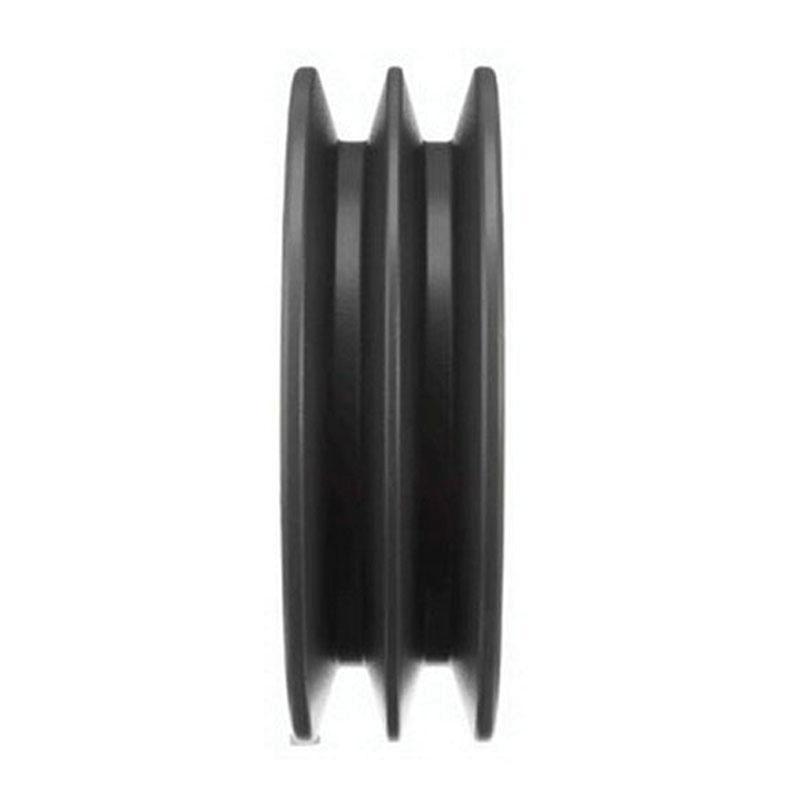

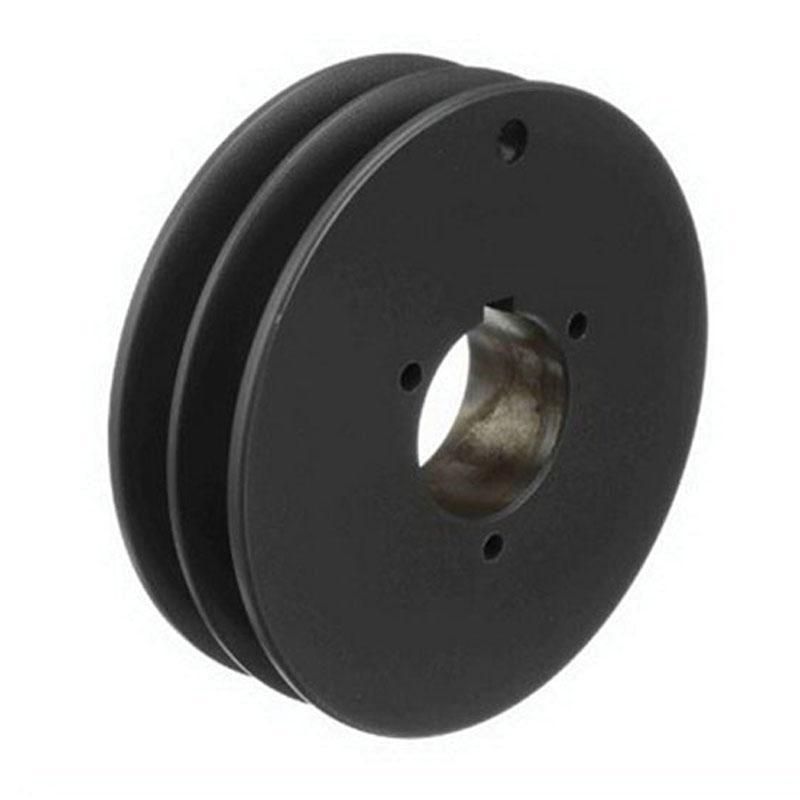

Browning® 2TB56 2TB56

Browning 2TB56 Multiple Sheave, Split Taper Bushed Bore, 1/2 in Dia Bore, 1-3/4 in W Face

Browning® 2TB56 Multiple Sheave, Split Taper Bushed Bore, 1/2 in Dia Bore, 1-3/4 in W Face, 5.4 in Dia Pitch

Browning® 2TB56 Multiple Sheave, Split Taper Bushed Bore, 1/2 in Dia Bore, 1-3/4 in W Face, 5.4 in Dia Pitch 2TB56

Browning® Multiple Sheave, Model: 2TB-M_Sheave_Master, Split Taper Bushed Bore, 1/2 in Bore Diameter, A, B Belt Section Size, P1 Bushing Style, 2 Number of Grooves, 5.4 in Pitch Diameter, 1-3/4 in Face Width, 3/8 in Keyway Size, Iron, 2.14 in L x 2.18 in W

Belt Section Size      :      A, B
Bore Diameter      :      1/2 in
Bore Type      :      Split Taper Bushed
Bushing Style      :      P1
Dimensions      :      2.14 in L x 2.18 in W
Face Width      :      1-3/4 in
Keyway Size      :      3/8 in
Material      :      Iron
Model      :      2TB-M_Sheave_Master
Number of Grooves      :      2
Pitch Diameter      :      5.4 in
  • Incorporates Browning split taper bushing, the only bushing system that provides a true key-to-key drive to both the shaft and the hub
  • All Browning B sheaves permit the running of A and B belts to be run in them, thus providing a variety of different pitch diameters and horsepower
  • Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
  • pdfInstruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/Browning_1B5V46_Instruction_Installation_Manual.pdf
  • pdfLine Drawing https://assets.unilogcorp.com/267/ITEM/DOC/Browning_3TB160_Line_Drawing.pdf
