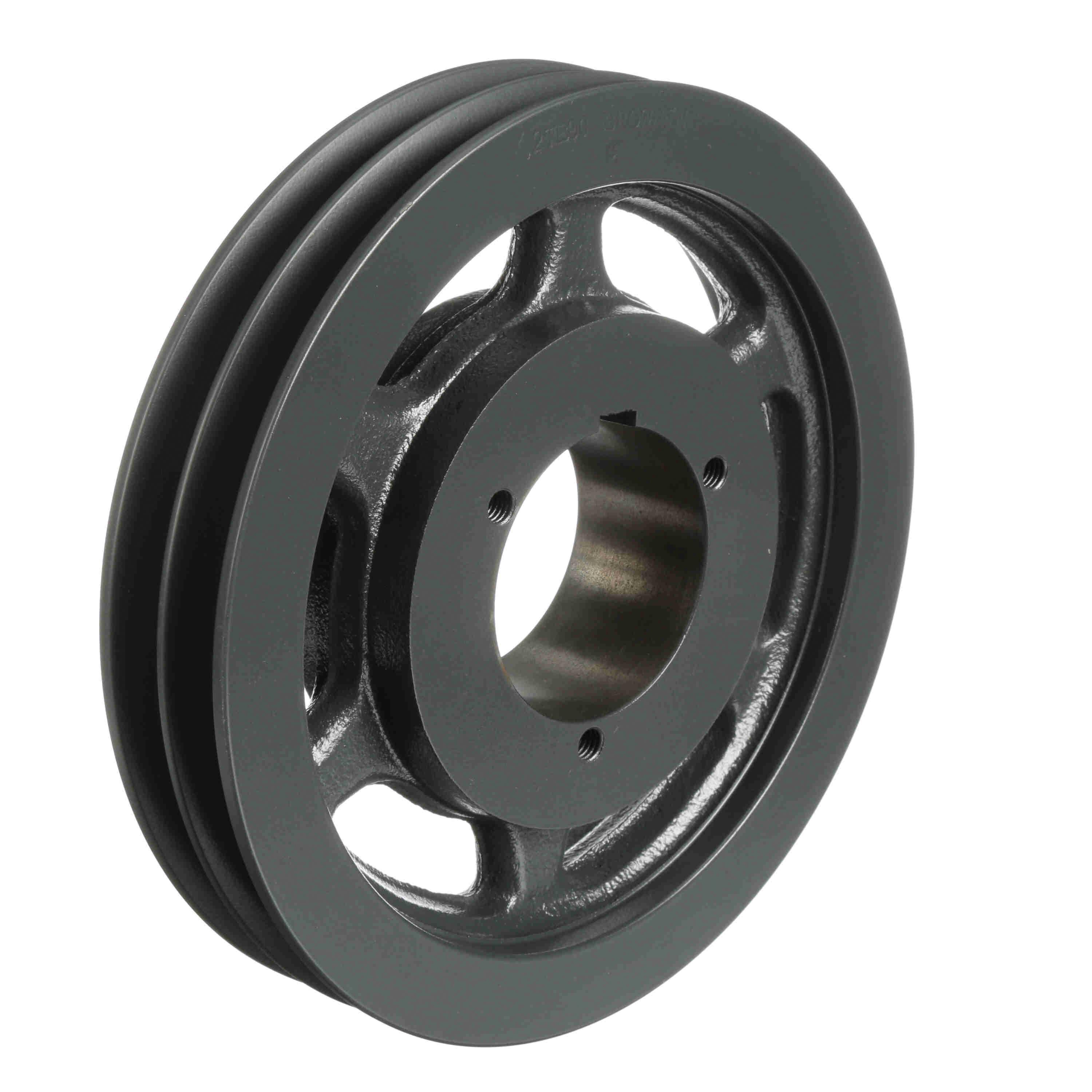

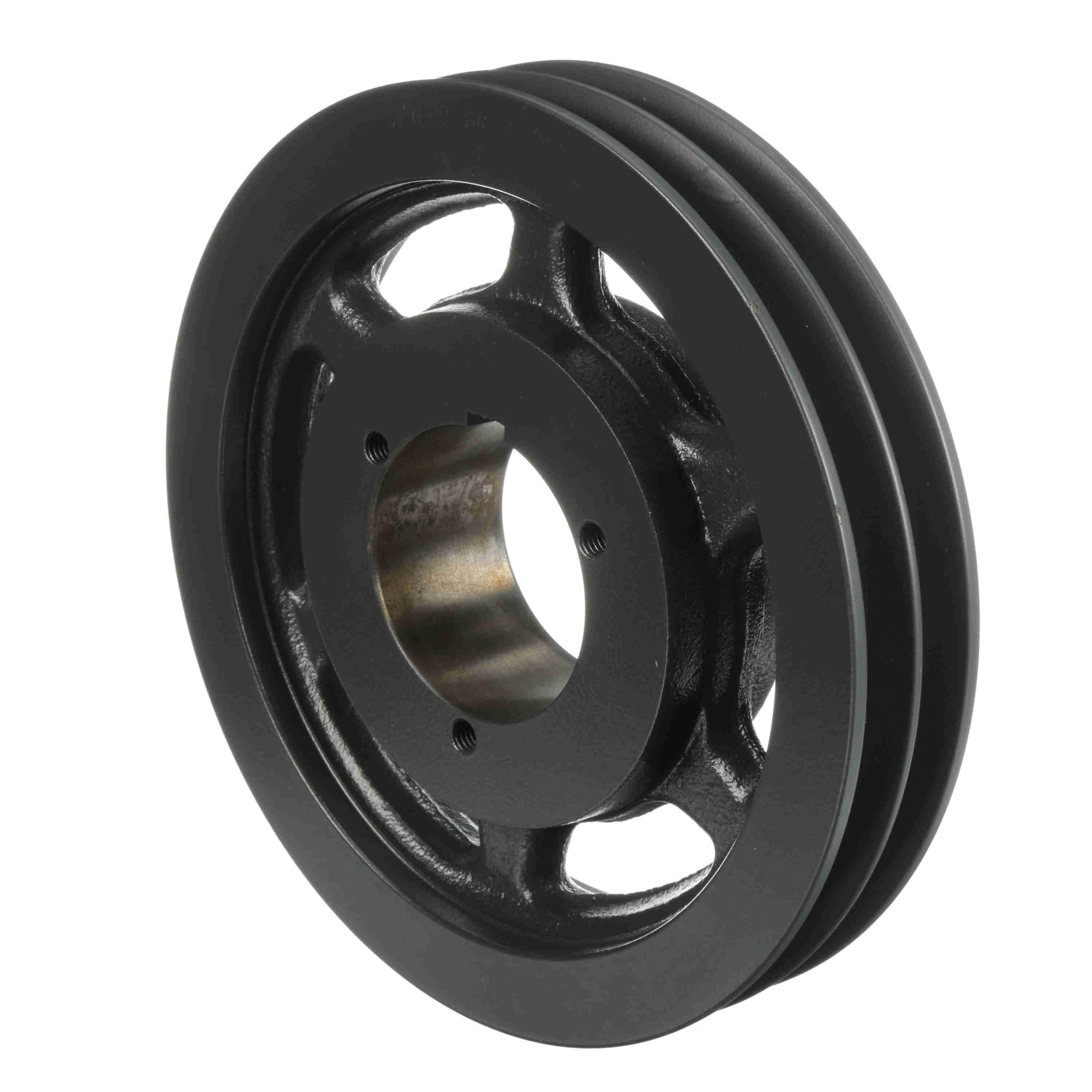

Browning 2TB90 Multiple Sheave, Split Taper Bushed Bore, 3/4 in Dia Bore, 1-3/4 in W Face, 8.8 in, 9.3 in Dia Pitch
Browning® 2TB90 Multiple Sheave, Split Taper Bushed Bore, 3/4 in Dia Bore, 1-3/4 in W Face, 8.8 in Dia Pitch
Browning® 2TB90 Multiple Sheave, Split Taper Bushed Bore, 3/4 in Dia Bore, 1-3/4 in W Face, 8.8 in Dia Pitch 2TB90- Brand Name: Browning®
- Part Number: 2TB90
- UPC: 662289202102
- Check Stock
Add To Favorites ListBrowning® Multiple Sheave, Model: 2TB-L_Sheave_Master, Split Taper Bushed Bore, 3/4 in Bore Diameter, A, B Belt Section Size, Q1 Bushing Style, 2 Number of Grooves, 8.8 in Pitch Diameter, 1-3/4 in Face Width, 1/2 in Keyway Size, Iron, 9.35 in Dia x 2.82 in L x 2.78 in W
| Belt Section Size | : | A, B |
| Bore Diameter | : | 3/4 in |
| Bore Type | : | Split Taper Bushed |
| Bushing Style | : | Q1 |
| Dimensions | : | 9.35 in Dia x 2.82 in L x 2.78 in W |
| Face Width | : | 1-3/4 in |
| Keyway Size | : | 1/2 in |
| Material | : | Iron |
| Model | : | 2TB-L_Sheave_Master |
| Number of Grooves | : | 2 |
| Pitch Diameter | : | 8.8 in |
- Incorporates Browning® split taper bushing - the only bushing system that provides a true key-to-key drive to both the shaft and the hub
- Combination groove - all Browning® B sheaves permit the running of A and B belts to be run in them, thus providing a variety of different pitch diameters and horsepowers
- Close grain cast iron - close grain cast iron allows Browning® to machine our sheaves to the closest tolerances possible
