Browning® 1045871 1045871

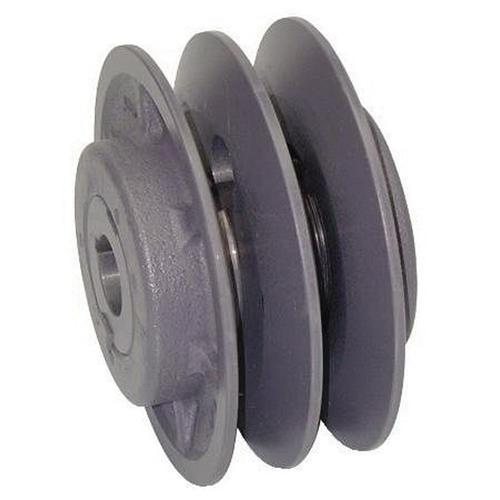

Browning 2VP 1045871 Sheave With Keyway Bore, Finished with Keyway Bore, 7/8 in Dia Bore, 1-3/8-2-1/8 in W Face

Browning® 2VP Series 1045871 Sheave With Keyway Bore, Finished with Keyway Bore, 7/8 in Dia Bore

Browning® 2VP Series 1045871 Sheave With Keyway Bore, Finished with Keyway Bore, 7/8 in Dia Bore 1045871

Browning® Sheave, Series: 2VP Series, Finished with Keyway Bore, 7/8 in Bore Diameter, 3L, 4L, 5L, A, B Belt Section Size, 2 Number of Grooves, 2.5 to 3.3 in Pitch Diameter, 3 in Length Through Bore, 1-3/8 to 2-1/8 in Face Width, 3/16 x 3/32 in Keyway Size, Iron, 3.95 in OD x 3 in L

Belt Section Size      :      3L, 4L, 5L, A, B
Bore Diameter      :      7/8 in
Bore Type      :      Finished with Keyway
Dimensions      :      3.95 in OD x 3 in L
Face Width      :      1-3/8 to 2-1/8 in
Keyway Size      :      3/16 x 3/32 in
Length Through Bore      :      3 in
Material      :      Iron
Number of Grooves      :      2
Pitch Diameter      :      2.5 to 3.3 in
Series      :      2VP Series
  • Largest selection in the industry-Browning offers the widest range of variable speed sheaves in the market today, one and two-groove product are available in 1.6 - 8.5 in covering up to 25 hp
  • pdfCatalog https://cx1content.unilogcorp.com/cx1/view/api/asset/v1/dam/assets/ITEM/DOC/file/267/Browning_1045517_Catalog.pdf
  • pdfFull Engineering Drawing https://cx1content.unilogcorp.com/cx1/view/api/asset/v1/dam/assets/ITEM/DOC/file/267/Browning_1045871_Full_Engineering_Drawing.pdf
  • pdfInstruction/Installation Manual https://cx1content.unilogcorp.com/cx1/view/api/asset/v1/dam/assets/ITEM/DOC/file/267/Browning_1045251_Manual.pdf
