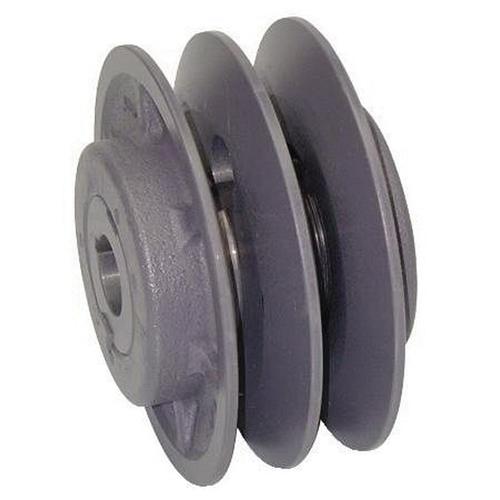

Browning 2VP 1046127 Sheave, Finished with Keyway Bore, 1-1/8 in Dia Bore, 1-5/8-2-3/8 in W Face
Browning® 2VP Series 1046127 Sheave, Finished with Keyway Bore, 1-1/8 in Dia Bore, 1-5/8 to 2-3/8 in W Face
Browning® 2VP Series 1046127 Sheave, Finished with Keyway Bore, 1-1/8 in Dia Bore, 1-5/8 to 2-3/8 in W Face 1046127- Brand Name: Browning®
- Part Number: 1046127
- Check Stock
Add To Favorites ListBrowning® Sheave, Series: 2VP Series, Finished with Keyway Bore, 1-1/8 in Bore Diameter, 4L, 5L, 5V, A, B Belt Section Size, 2 Number of Grooves, 4.9 to 5.9 in Pitch Diameter, 3-1/4 in Length Through Bore, 1-5/8 to 2-3/8 in Face Width, 1/4 x 1/8 in Keyway Size, Iron, 6-1/2 in OD x 3-1/4 in L
| Belt Section Size | : | 4L, 5L, 5V, A, B |
| Bore Diameter | : | 1-1/8 in |
| Bore Type | : | Finished with Keyway |
| Dimensions | : | 6-1/2 in OD x 3-1/4 in L |
| Face Width | : | 1-5/8 to 2-3/8 in |
| Keyway Size | : | 1/4 x 1/8 in |
| Length Through Bore | : | 3-1/4 in |
| Material | : | Iron |
| Number of Grooves | : | 2 |
| Pitch Diameter | : | 4.9 to 5.9 in |
| Series | : | 2VP Series |
- Largest selection in the industry-Browning offers the widest range of variable speed sheaves in the market today, one and two-groove product are available in 1.6 - 8.5 in covering up to 25 hp
