Browning® 1046135 1046135

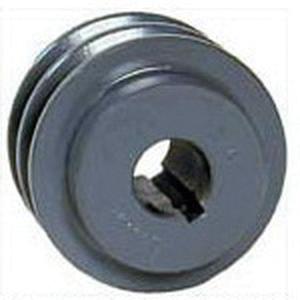

Browning 2VP 1046135 Sheave, Finished with Keyway Bore, 1-3/8 in Dia Bore, 1-5/8-2-3/8 in W Face

Browning® 2VP Series 1046135 Sheave, Finished with Keyway Bore, 1-3/8 in Dia Bore, 1-5/8 to 2-3/8 in W Face

Browning® 2VP Series 1046135 Sheave, Finished with Keyway Bore, 1-3/8 in Dia Bore, 1-5/8 to 2-3/8 in W Face 1046135

Browning® Sheave, Series: 2VP Series, Finished with Keyway Bore, 1-3/8 in Bore Diameter, 3L, 4L, 5L, 5V, A, B Belt Section Size, 2 Number of Grooves, 4.7 to 5.7 in Pitch Diameter, 3-1/4 in Length Through Bore, 1-5/8 to 2-3/8 in Face Width, 5/16 x 5/32 in Keyway Size, Iron, 6-1/2 in OD x 3-1/4 in L

Belt Section Size      :      3L, 4L, 5L, 5V, A, B
Bore Diameter      :      1-3/8 in
Bore Type      :      Finished with Keyway
Dimensions      :      6-1/2 in OD x 3-1/4 in L
Face Width      :      1-5/8 to 2-3/8 in
Keyway Size      :      5/16 x 5/32 in
Length Through Bore      :      3-1/4 in
Material      :      Iron
Number of Grooves      :      2
Pitch Diameter      :      4.7 to 5.7 in
Series      :      2VP Series
  • Largest selection in the industry-Browning offers the widest range of variable speed sheaves in the market today, one and two-groove product are available in 1.6 - 8.5 in covering up to 25 hp
