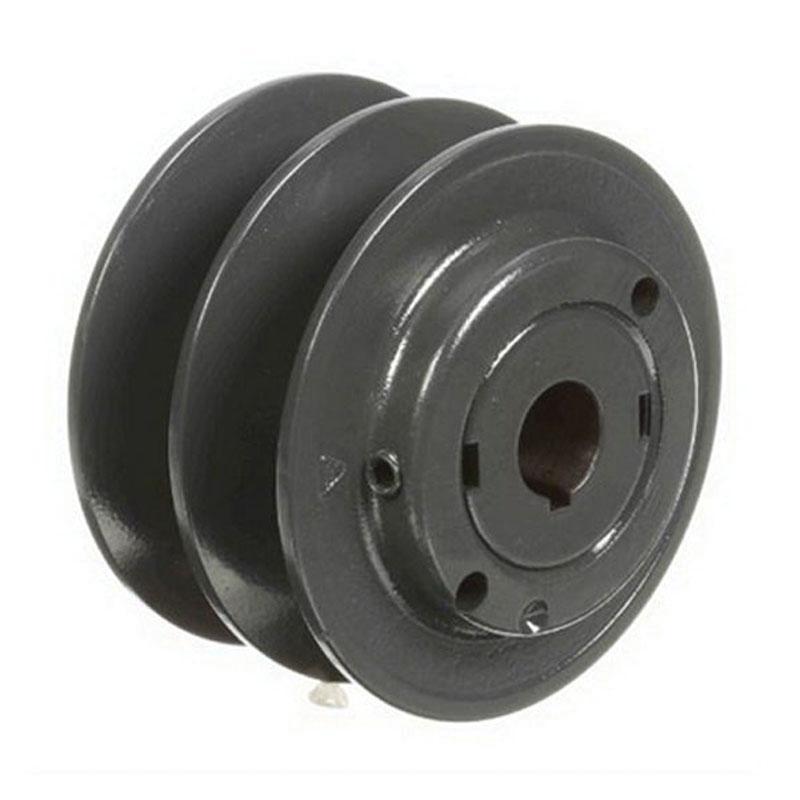

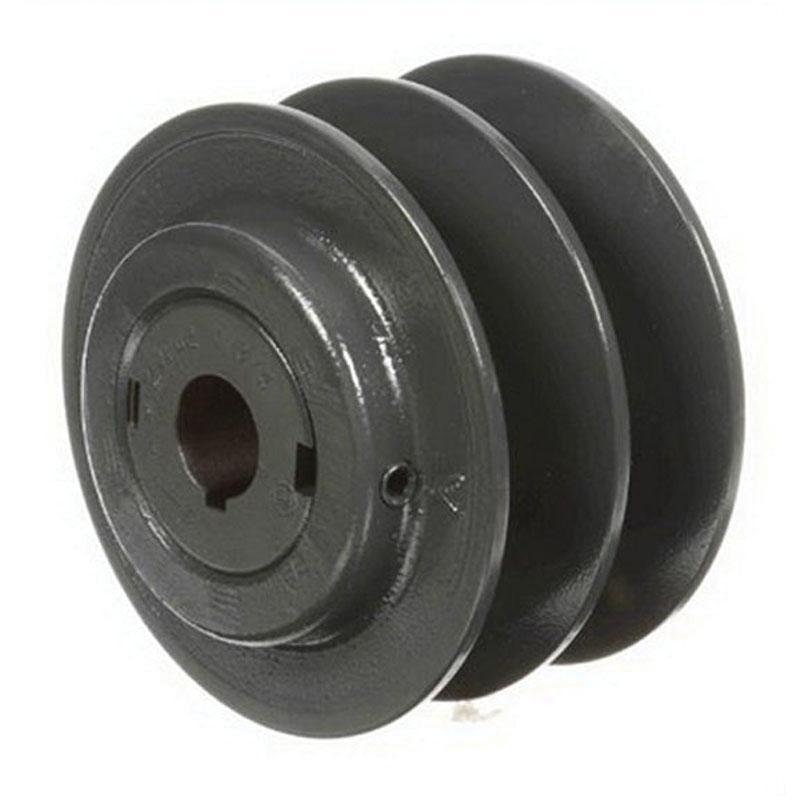

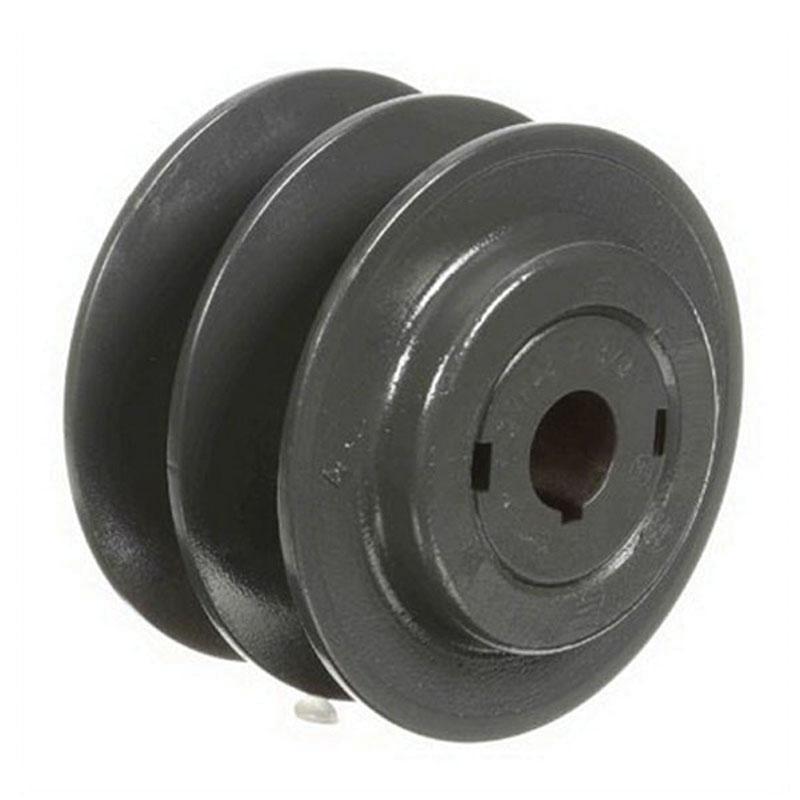

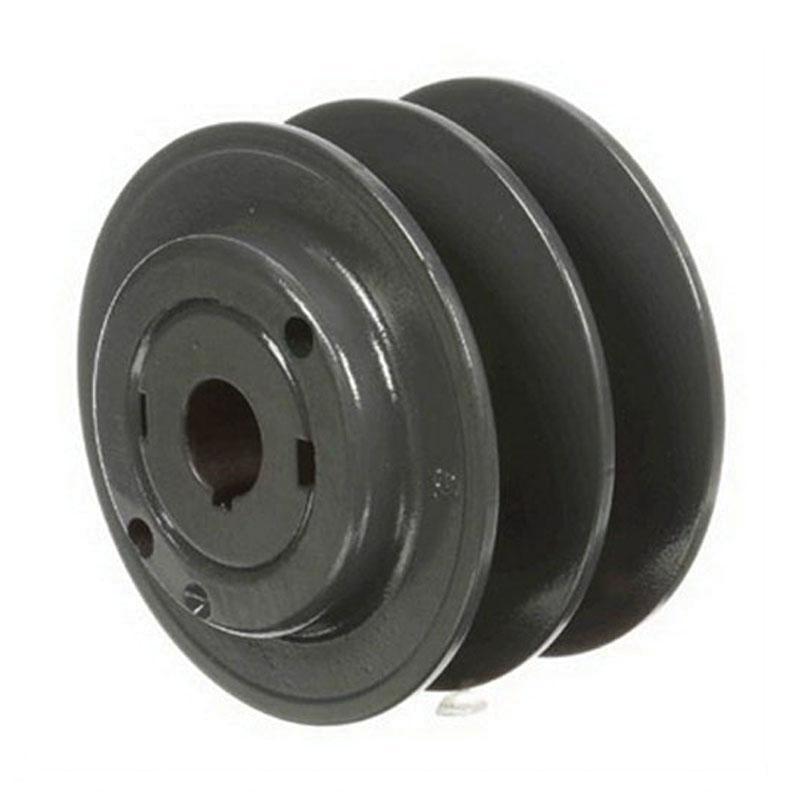

Browning 2VP42X3/4 FHP Variable Pitch Sheave, Finished Bore, 3/4 in Dia Bore, 2.5 to 3.3 in (3L) Dia Pitch

Browning® FHP Variable Pitch Sheave, Finished Bore, 3/4 in Bore Diameter, 3L, 4L, 5L, A, B Belt Section Size, 2 Number of Grooves, 2.5 to 3.3 in Pitch Diameter, Iron

• Largest selection in the industry, Browning offers the widest range of variable speed sheaves in the market today

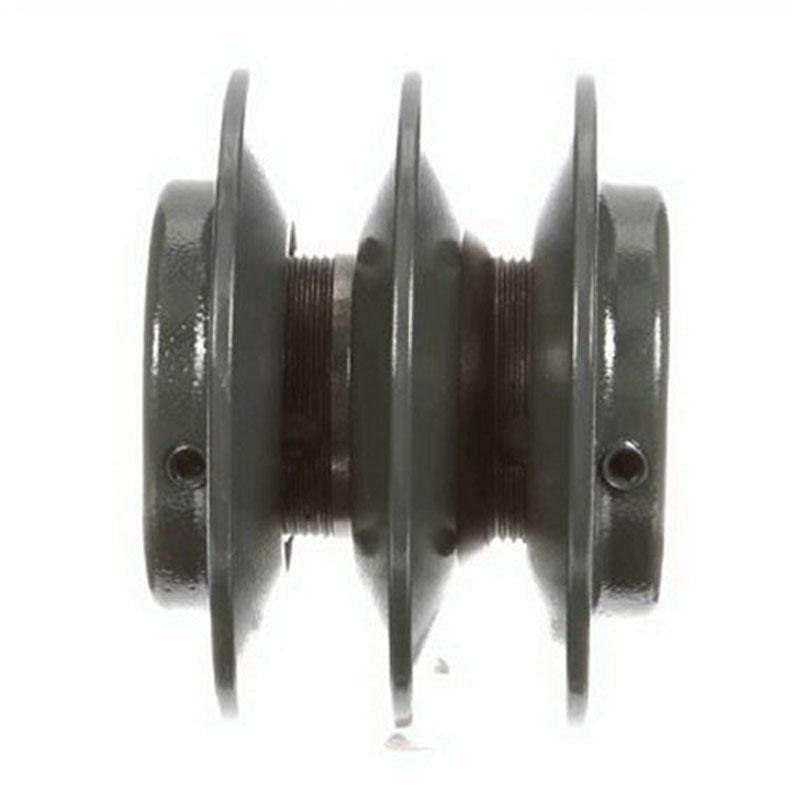

• VP sheaves consist of a male with a threaded barrel and a female with a threaded bore
• The male section with threaded barrel has flat surfaces at 180 deg increments that allow a flat surface for the setscrew to mate with
• When discs are moved toward each other, the belt rides higher in the groove and the pitch diameter of the sheave is larger which increases the driven speed
• When discs are moved away from each other, the belt rides lower and the pitch diameter is smaller decreasing the driven speed
