Browning® 2VP65X1-1/8 2VP65X1-1/8

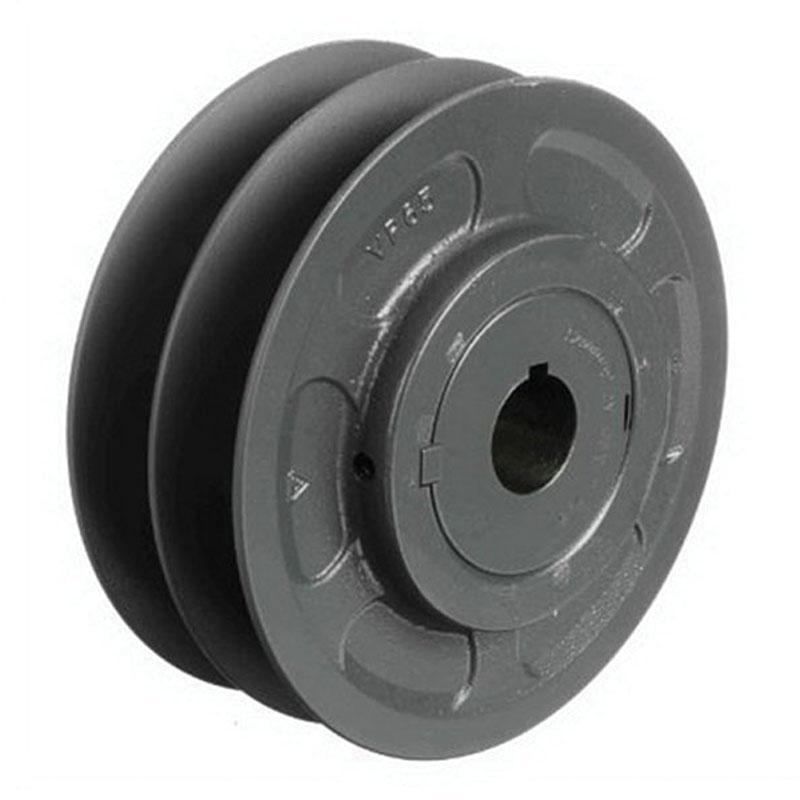

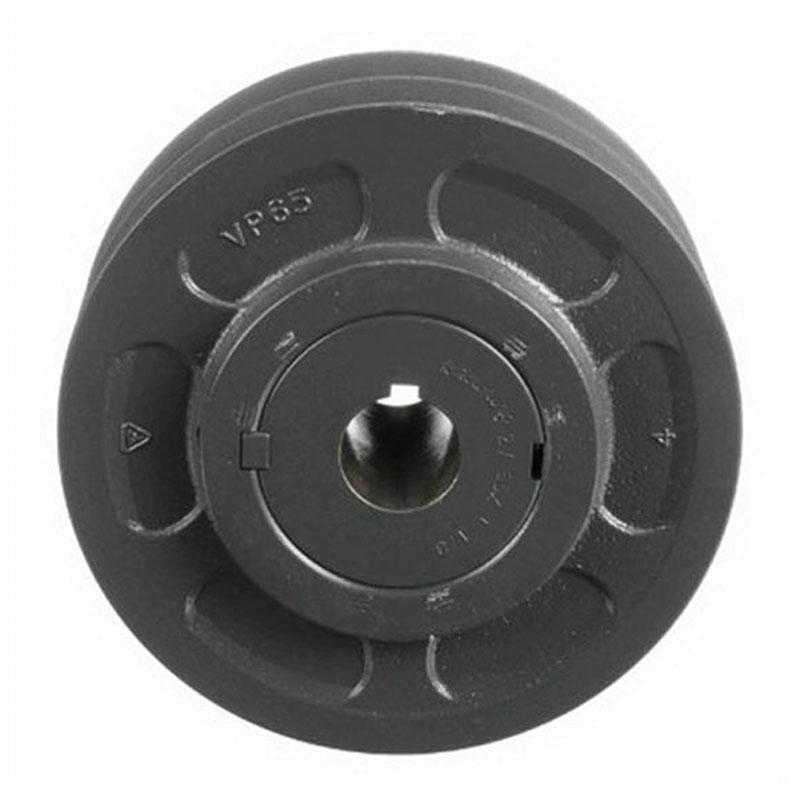

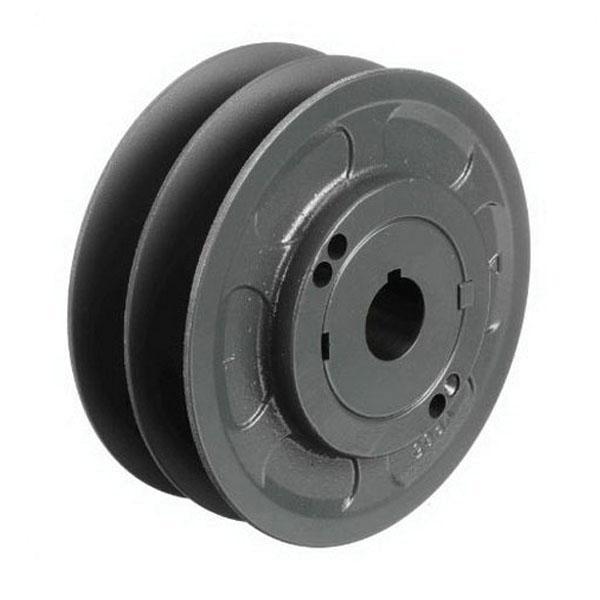

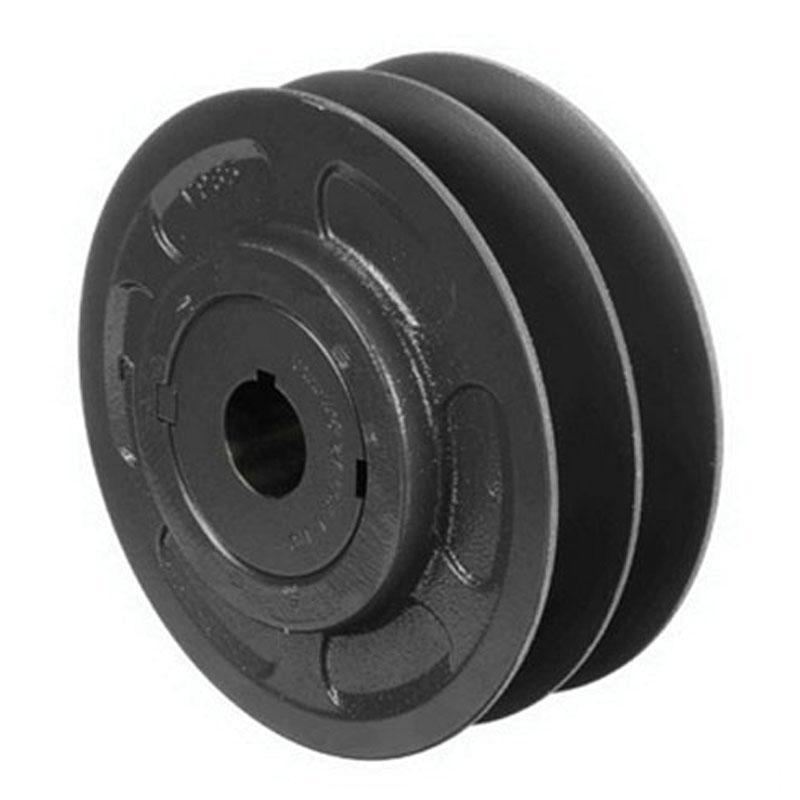

Browning 2VP65X1-1/8 FHP Variable Pitch Sheave, Finished Bore, 1-1/8 in Dia Bore, 5.2 to 6.4 in Dia Pitch

Browning® 2VP65X1-1/8 FHP Variable Pitch Sheave, Finished Bore, 1-1/8 in Dia Bore, 5.2 to 6.4 in Dia Pitch

Browning® 2VP65X1-1/8 FHP Variable Pitch Sheave, Finished Bore, 1-1/8 in Dia Bore, 5.2 to 6.4 in Dia Pitch 2VP65X1-1/8

Browning® FHP Variable Pitch Sheave, Finished Bore, 1-1/8 in Bore Diameter, 4L, 5L, 5V, A, B Belt Section Size, 2 Number of Grooves, 5.2 to 6.4 in Pitch Diameter, 1/4 x 1/8 in Keyway Size, Iron

Belt Section Size      :      4L, 5L, 5V, A, B
Bore Diameter      :      1-1/8 in
Bore Type      :      Finished
Keyway Size      :      1/4 x 1/8 in
Material      :      Iron
Number of Grooves      :      2
Pitch Diameter      :      5.2 to 6.4 in
  • Largest selection in the industry, Browning offers the widest range of variable speed sheaves in the market today
  • VP sheaves consist of a male with a threaded barrel and a female with a threaded bore
  • The male section with threaded barrel has flat surfaces at 180 deg increments that allow a flat surface for the setscrew to mate with
  • When discs are moved toward each other, the belt rides higher in the groove and the pitch diameter of the sheave is larger which increases the driven speed
  • When discs are moved away from each other, the belt rides lower and the pitch diameter is smaller decreasing the driven speed
  • pdfInstruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/Browning_2VP50X3_4_Instruction_Installation_Manual.pdf
  • pdfLine Drawing https://assets.unilogcorp.com/267/ITEM/DOC/Browning_2VP50X3_4_Line_Drawing.pdf
