Browning® 2VP75X1-3/8 2VP75X1-3/8

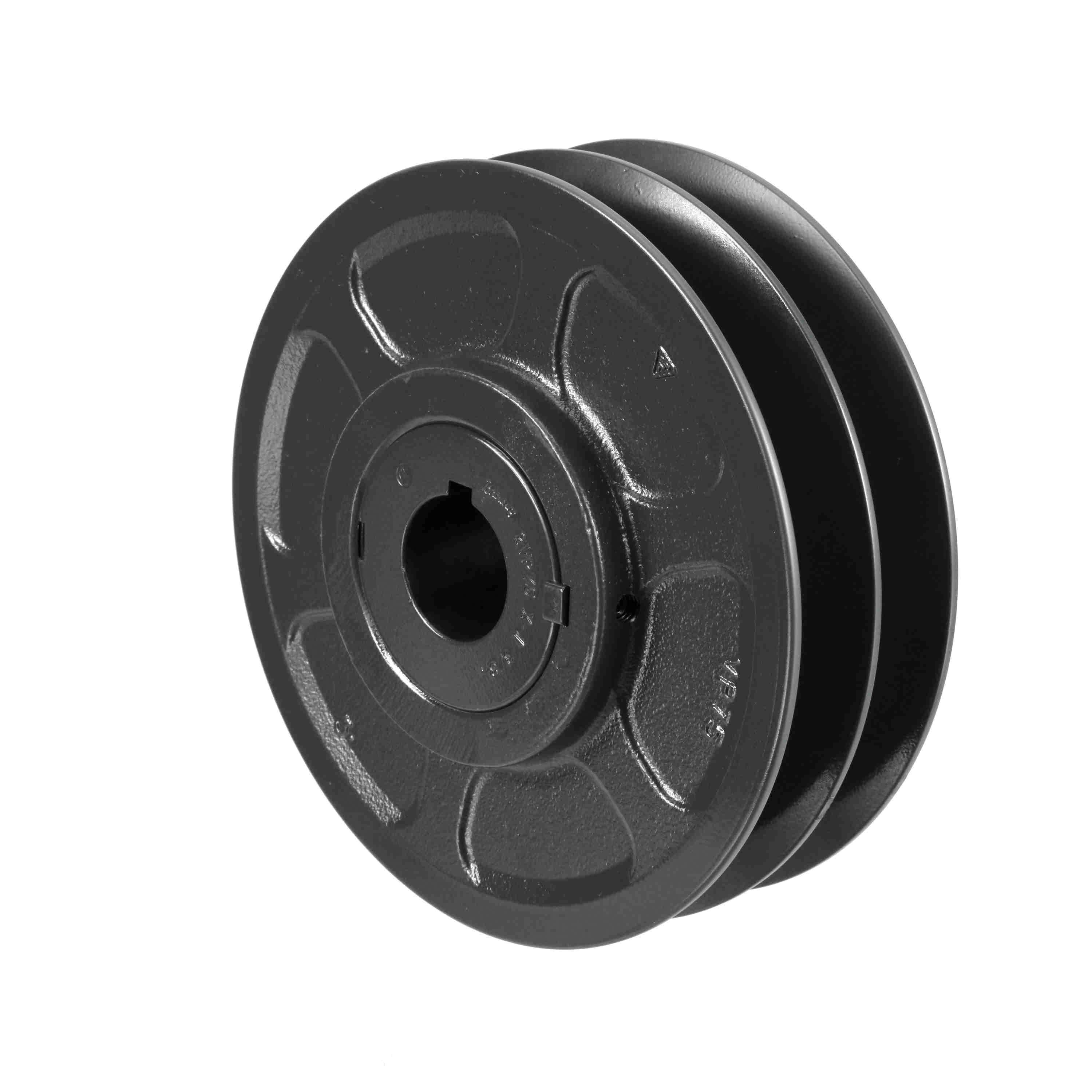

Browning 2VP75X1-3/8 Variable Pitch Sheave, Finished Bore, 1-3/8 in Dia Bore, 7.4 in, 6.2 in Dia Pitch

Browning® 2VP75X1-3/8 Variable Pitch Sheave, Finished Bore, 1-3/8 in Dia Bore, 6.2 in Dia Pitch

Browning® 2VP75X1-3/8 Variable Pitch Sheave, Finished Bore, 1-3/8 in Dia Bore, 6.2 in Dia Pitch 2VP75X1-3/8

Browning® Variable Pitch Sheave, Finished Bore, 1-3/8 in Bore Diameter, 4L, 5L, 5V, A, B Belt Section Size, 2 Number of Grooves, 6.2 in Pitch Diameter, 5/16 x 5/32 in Keyway Size, Iron, 7-1/2 in Dia

Belt Section Size      :      4L, 5L, 5V, A, B
Bore Diameter      :      1-3/8 in
Bore Type      :      Finished
Dimensions      :      7-1/2 in Dia
Keyway Size      :      5/16 x 5/32 in
Material      :      Iron
Number of Grooves      :      2
Pitch Diameter      :      6.2 in
  • Largest selection in the industry - Browning® offers the widest range of variable speed sheaves in the market today
  • VP sheaves consist of a male with a threaded barrel and a female with a threaded bore
  • The male section with threaded barrel has flat surfaces at 180 deg increments that allow a flat surface for the setscrew to mate with
  • When discs are moved toward each other, the belt rides higher in the groove and the pitch diameter of the sheave is larger which increases the driven speed
  • When discs are moved away from each other, the belt rides lower and the pitch diameter is smaller decreasing the driven speed
