Browning® 3694742 3694742

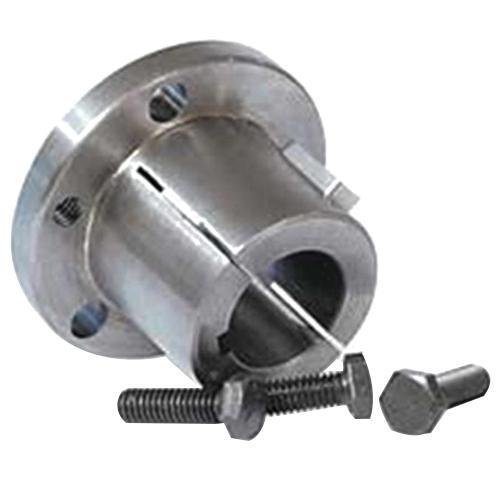

Browning 3694742 Split Taper Bushing, 7/8 in Dia Bore, 2-5/8 in Dia Barrel, 1-15/16 in L, Sintered Steel

Browning® 3694742 Split Tapered Bushing, 7/8 in Dia Bore, 2-5/8 in Dia Barrel, 1-15/16 in L, Steel

Browning® 3694742 Split Tapered Bushing, 7/8 in Dia Bore, 2-5/8 in Dia Barrel, 1-15/16 in L, Steel 3694742

Browning® Split Tapered Bushing, Finished with Keyway Bore, 7/8 in Bore Diameter, 3-11/16 in OD, 2-5/8 in Barrel Diameter, 1-15/16 in Length, 3/16 x 3/32 in Keyway Size, Solid Flange Type, 1/2 in Flange Thickness, 3 Number of Cap Screws, 5/16 x 1-1/4 in Cap Screw Size, 192 in-lb Torque, Steel

Barrel Diameter      :      2-5/8 in
Bore Diameter      :      7/8 in
Bore Type      :      Finished with Keyway
Cap Screw Size      :      5/16 x 1-1/4 in
Flange Thickness      :      1/2 in
Flange Type      :      Solid
Keyway Size      :      3/16 x 3/32 in
Length      :      1-15/16 in
Material      :      Steel
Number of Cap Screws      :      3
Outside Diameter      :      3-11/16 in
Torque Rating      :      192 in-lb
  • Keyed to both shaft and hub
  • External key provides positive drive with no torque on the cap screws
  • Highest torque carrying capacity
  • Lifetime guarantee
  • 3-1/8 in Dia bolt circle
  • 5/16 in screw thread size
  • 1-1/4 in L screw
  • Double split barrel improves true concentricity-grips the shaft with positive clamp fit
  • pdfCatalog https://cx1content.unilogcorp.com/cx1/view/api/asset/v1/dam/assets/ITEM/DOC/file/267/Browning_3694742_Catalog.pdf
