Browning 3B 3695236 Sheave, Split Taper Bushed Bore, 1/2-1-3/8 in Dia Bore, 2-7/16 in W Face

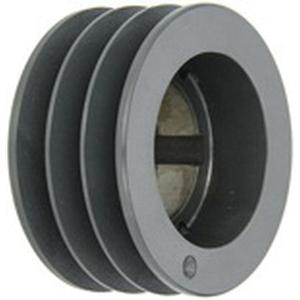

Browning® 3B Series 3695236 Sheave, Split Taper Bushed Bore, 1/2 to 1-3/8 in Dia Bore, 2-7/16 in W Face, 4 in Dia Pitch
Browning® 3B Series 3695236 Sheave, Split Taper Bushed Bore, 1/2 to 1-3/8 in Dia Bore, 2-7/16 in W Face, 4 in Dia Pitch 3695236- Brand Name: Browning®
- Part Number: 3695236
- Check Stock
Add To Favorites ListBrowning® Sheave, Series: 3B Series, Split Taper Bushed Bore, 1/2 to 1-3/8 in Bore Diameter, 5V, A, B Belt Section Size, P1 Bushing Style, 3 Number of Grooves, 4 in Pitch Diameter, 1.09 in Length Through Bore, 2-7/16 in Face Width, Iron, 4.68 in OD x 2.671875 in L
| Belt Section Size | : | 5V, A, B |
| Bore Diameter | : | 1/2 to 1-3/8 in |
| Bore Type | : | Split Taper Bushed |
| Bushing Style | : | P1 |
| Dimensions | : | 4.68 in OD x 2.671875 in L |
| Face Width | : | 2-7/16 in |
| Length Through Bore | : | 1.09 in |
| Material | : | Iron |
| Number of Grooves | : | 3 |
| Pitch Diameter | : | 4 in |
| Series | : | 3B Series |
- Combination groove-all Browning B5V sheaves permit the running of A, 4L, B, 5L and 5V belts to be run in them, thus providing a variety of different pitch diameters and horsepowers
- Broad horsepower coverage-the B5V is available in 1 through 6 grooves allowing it to cover from 5-125 hp drives
- Incorporates browning split taper bushing-the only bushing system that provides a true key-to-key drive to both the shaft and the hub
- New casting design-the B5V castings were developed using CAD and finite elements analysis to determine where to add and eliminate material
