Browning® 3B5V60 3B5V60

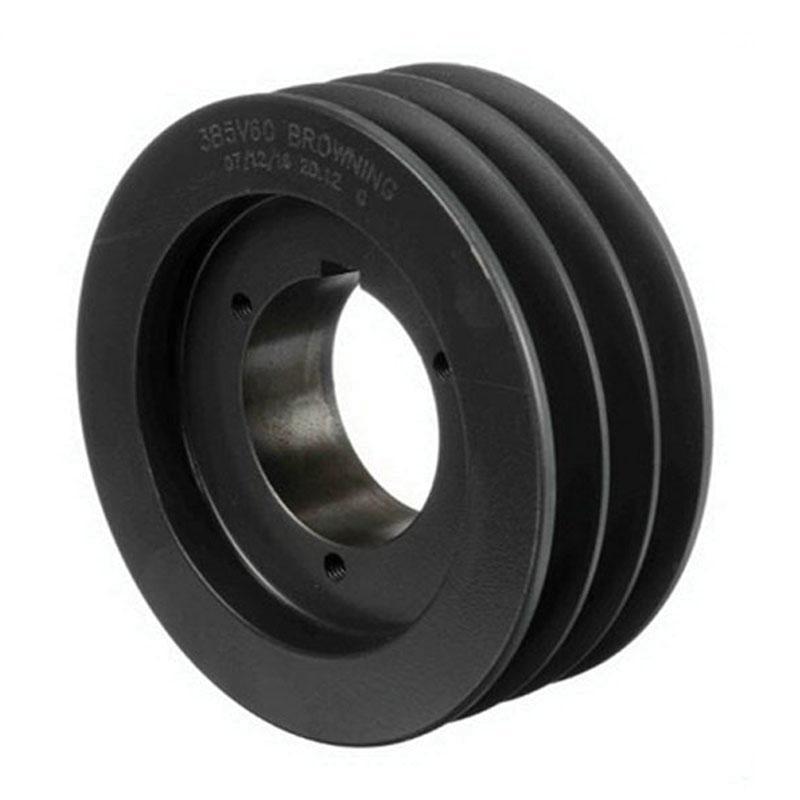

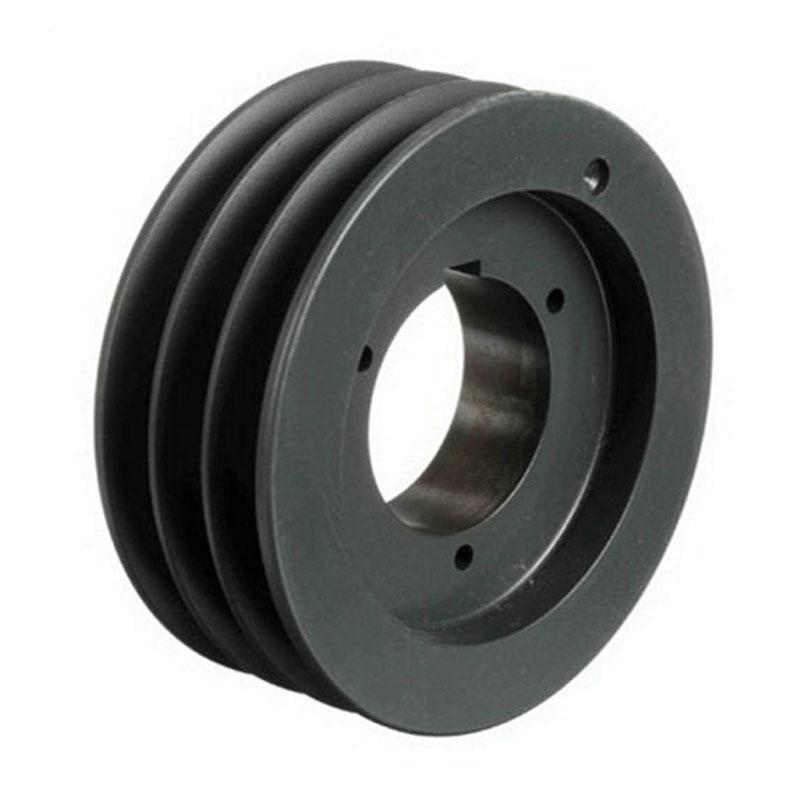

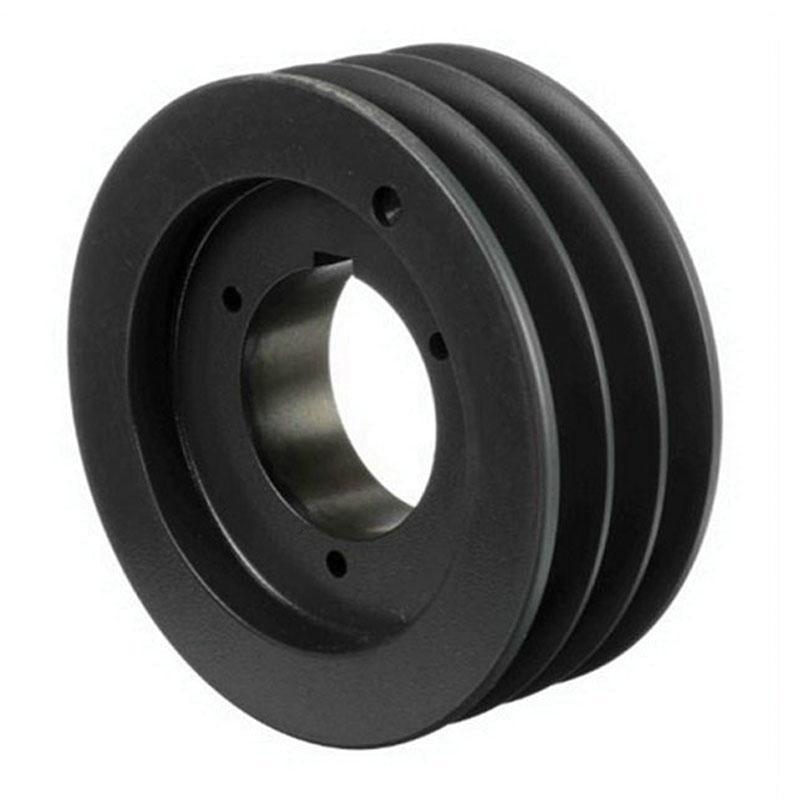

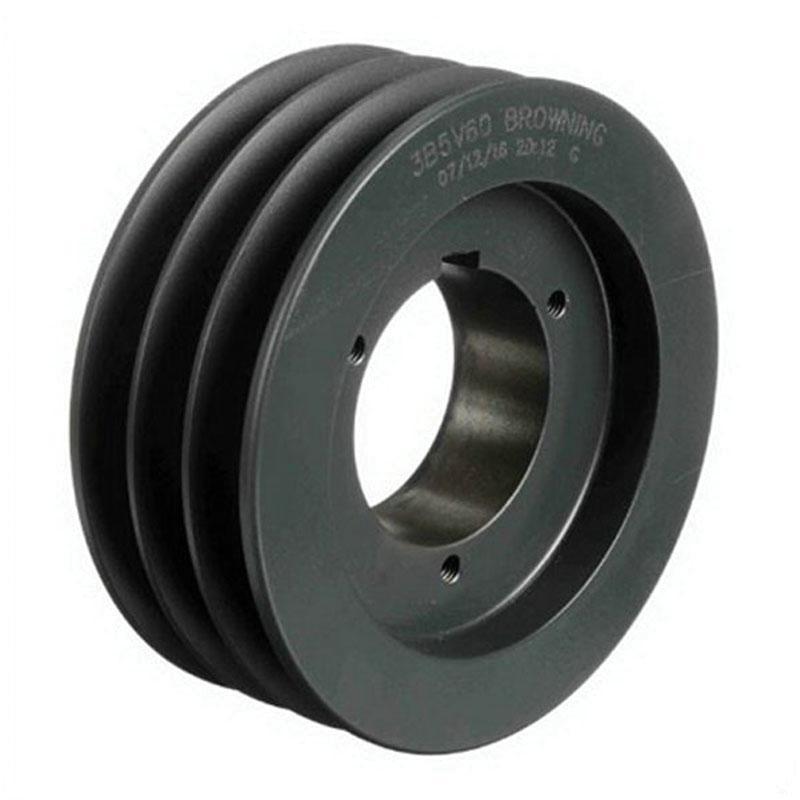

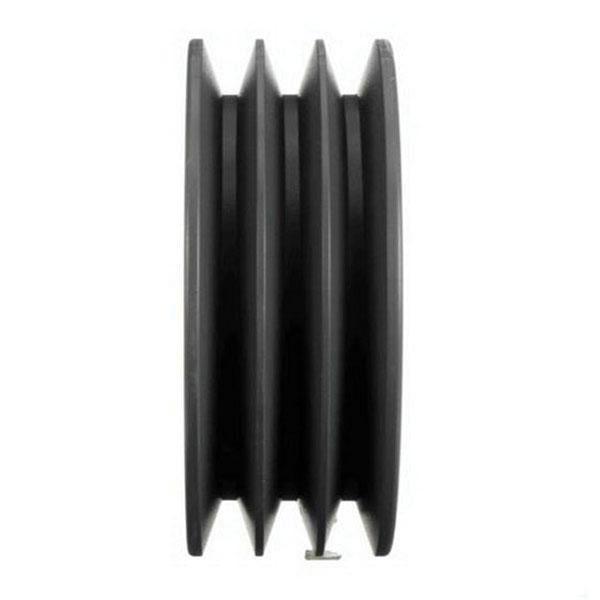

Browning 3B5V60 Multiple Sheave, Split Taper Bushed Bore, 1/2 in Dia Bore, 2.44 in W Face

Browning® 3B5V60 Multiple Sheave, Split Taper Bushed Bore, 1/2 in Dia Bore, 2.44 in W Face, 5.8 in Dia Pitch

Browning® 3B5V60 Multiple Sheave, Split Taper Bushed Bore, 1/2 in Dia Bore, 2.44 in W Face, 5.8 in Dia Pitch 3B5V60

Browning® Multiple Sheave, Model: 3B5V-SheaveMaster, Split Taper Bushed Bore, 1/2 in Bore Diameter, 5V, A, B Belt Section Size, B Bushing Style, 3 Number of Grooves, 5.8 in Pitch Diameter, 2.44 in Face Width, 1/2 in Keyway Size, Iron, 2.9 in L x 2.92 in W

Belt Section Size      :      5V, A, B
Bore Diameter      :      1/2 in
Bore Type      :      Split Taper Bushed
Bushing Style      :      B
Dimensions      :      2.9 in L x 2.92 in W
Face Width      :      2.44 in
Keyway Size      :      1/2 in
Material      :      Iron
Model      :      3B5V-SheaveMaster
Number of Grooves      :      3
Pitch Diameter      :      5.8 in
  • All Browning B5V sheaves permit the running of A, 4L, B, 5L and 5V belts to be run in them, thus providing a variety of different pitch diameters and horsepower
  • Incorporates Browning split taper bushing, the only bushing system that provides a true key-to-key drive to both the shaft and the hub
  • New casting design, the B5V castings were developed using cad and finite elements analysis to determine where to add and eliminate material
  • pdfInstruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/Browning_1B5V46_Instruction_Installation_Manual.pdf
  • pdfLine Drawing https://assets.unilogcorp.com/267/ITEM/DOC/Browning_3B5V66_Line_Drawing.pdf
