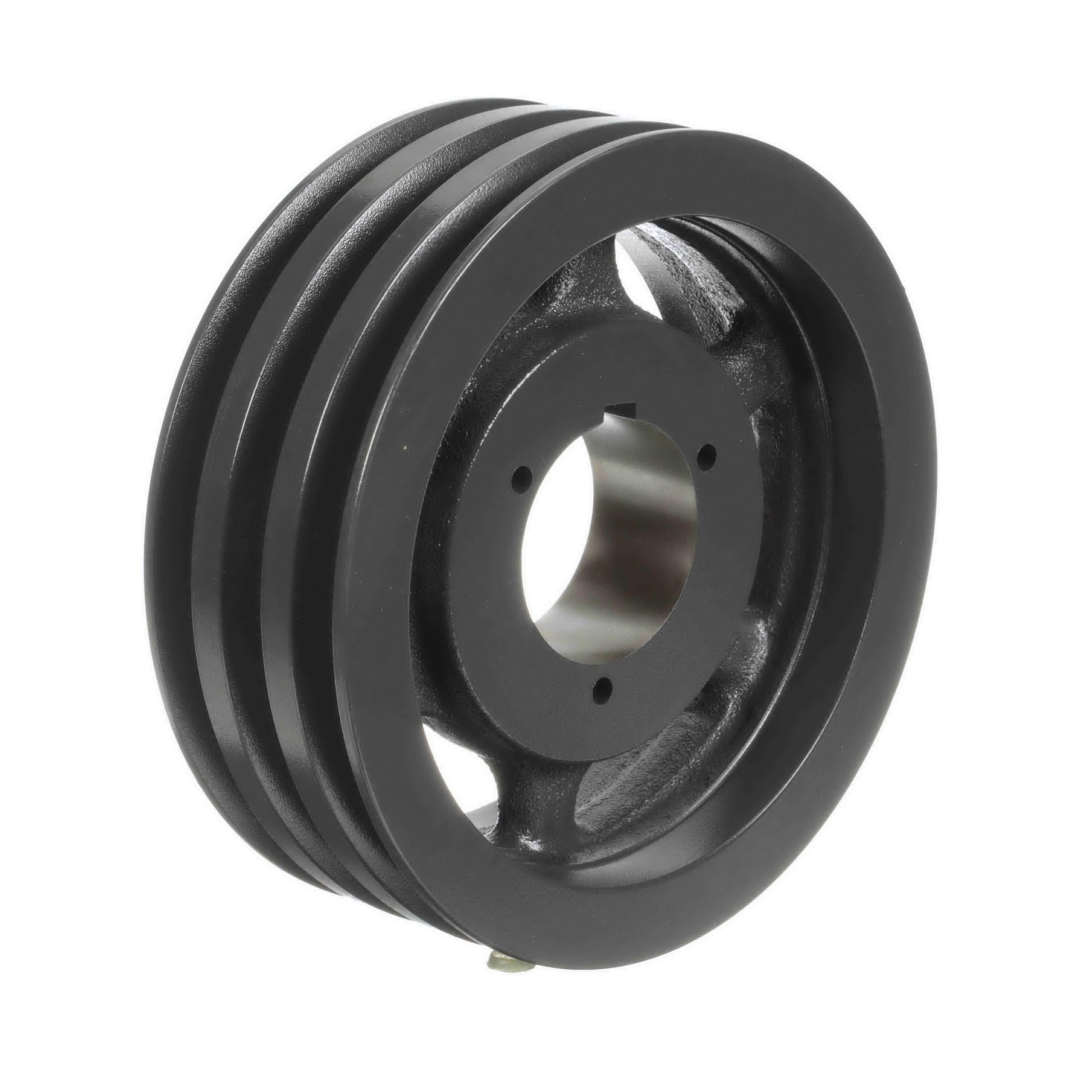

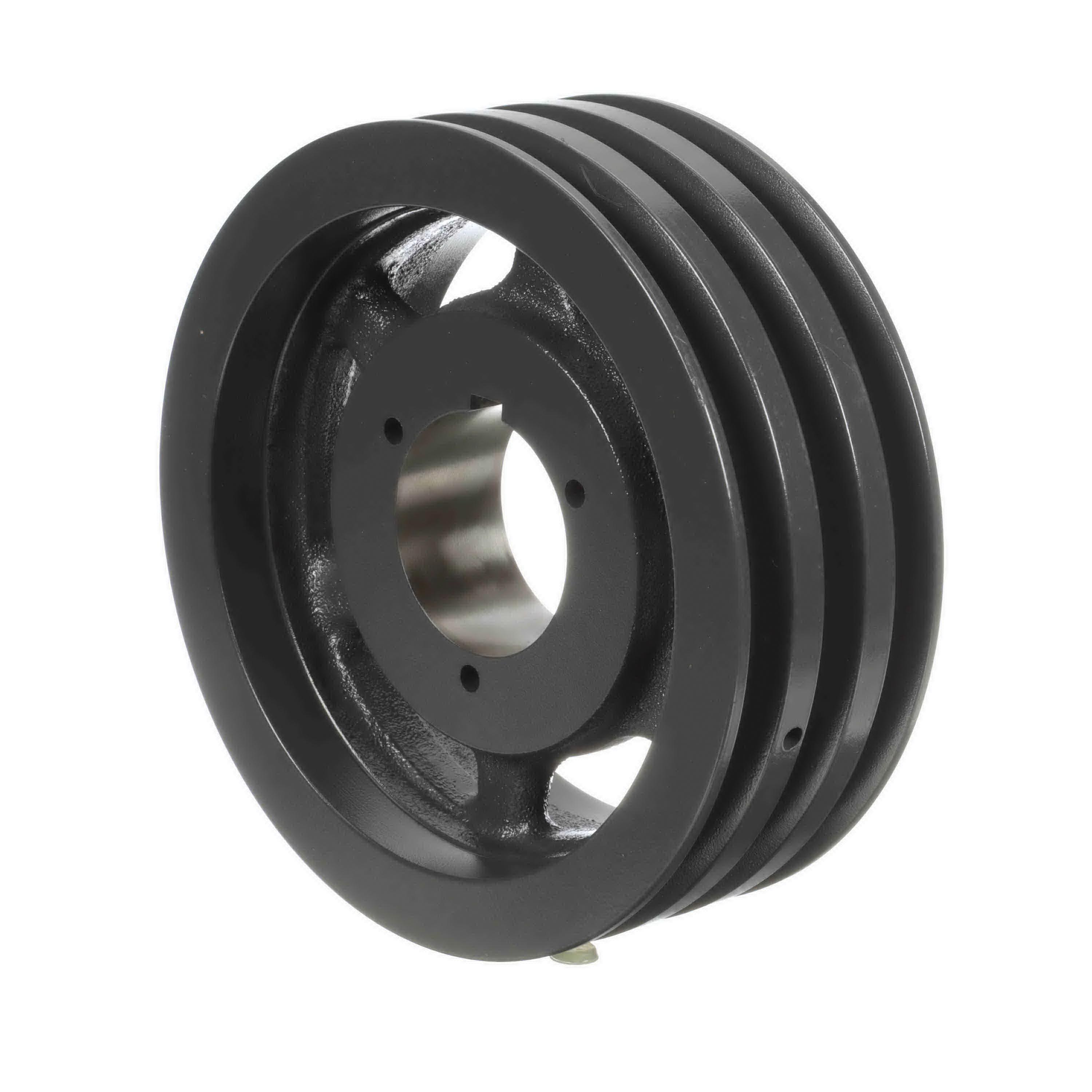

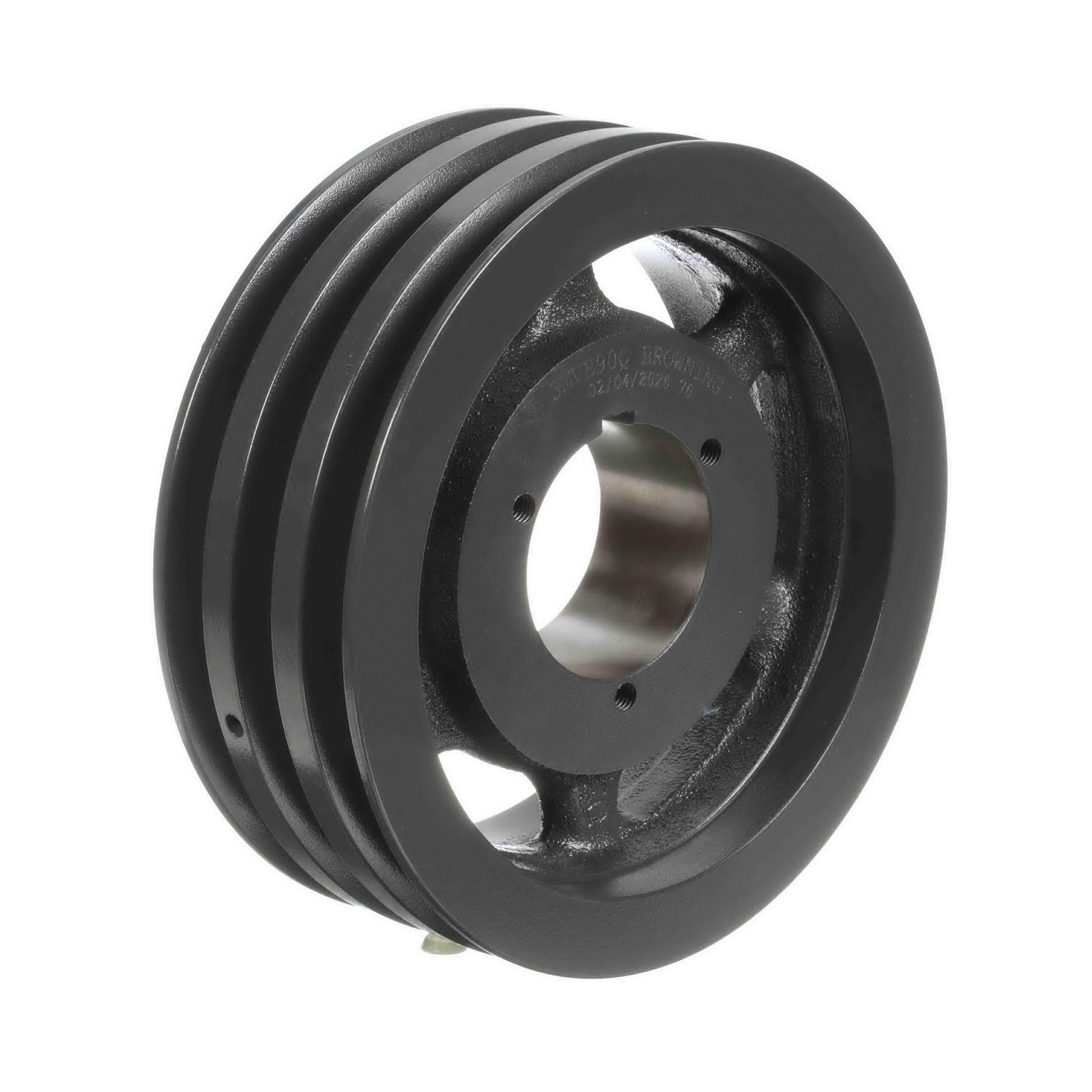

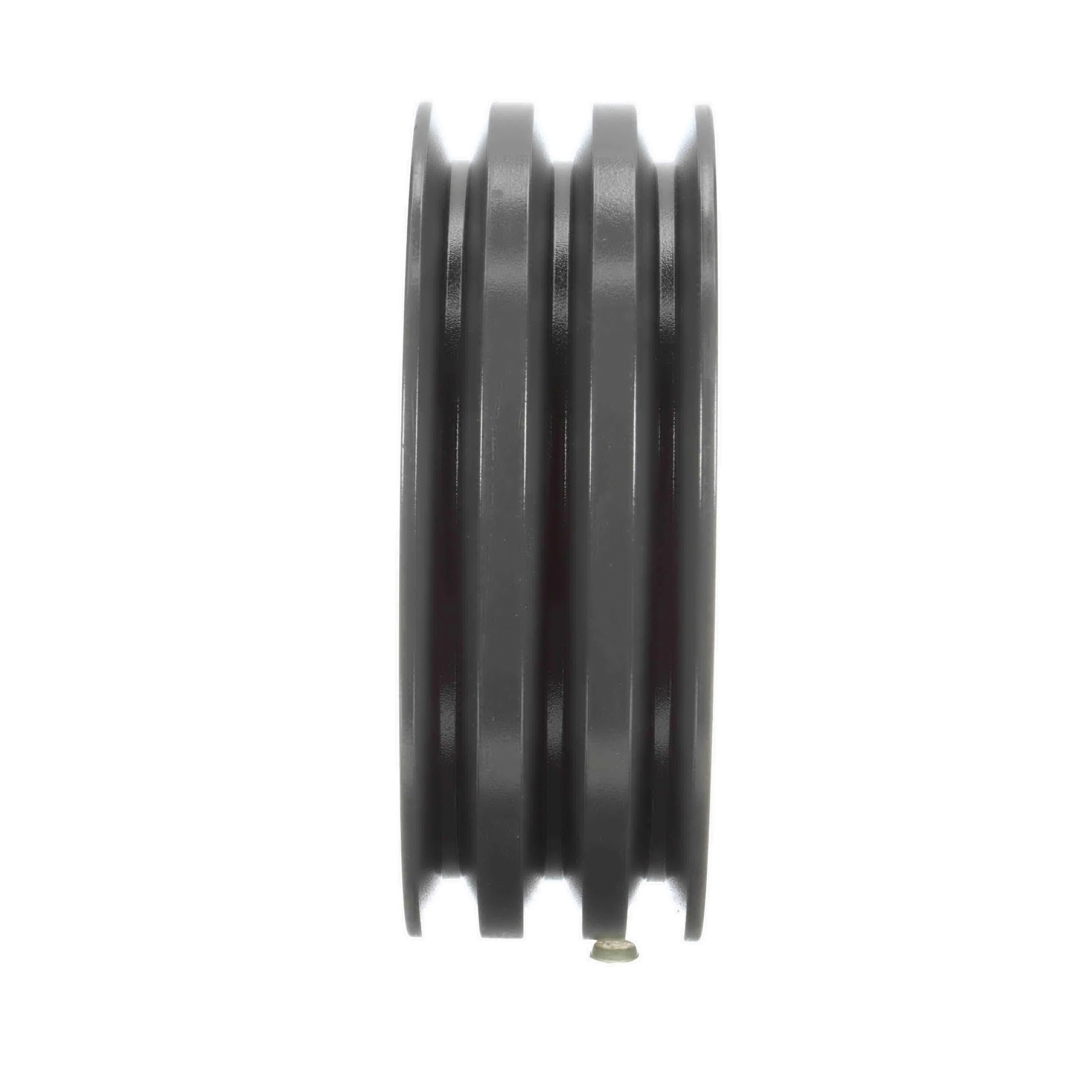

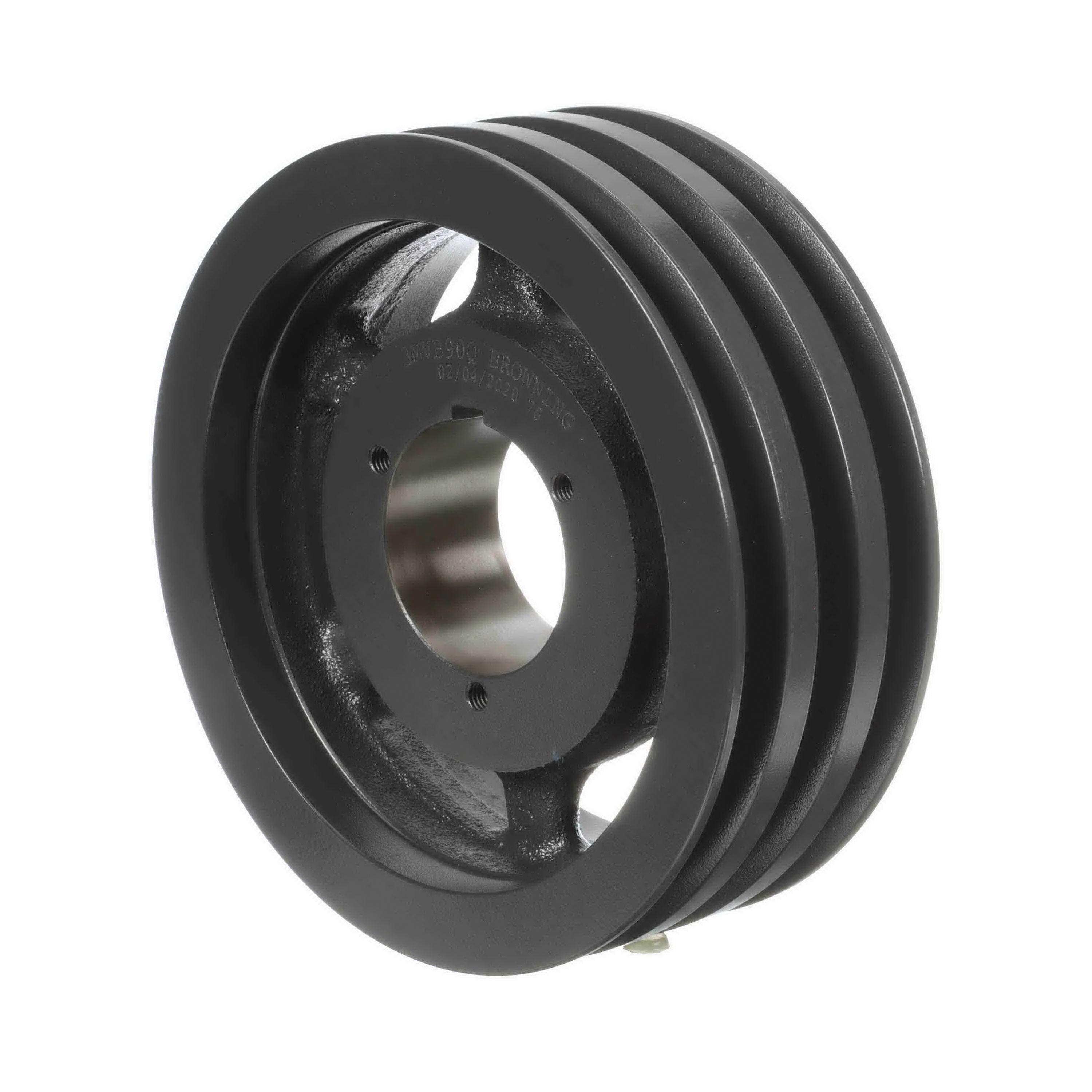

Browning 3MVB90Q V-Belt Sheave, 3/4 to 2-11/16 in Dia Bore, Bushed Bore, 9.35 in OD, 3-Groove, 9.3 in Dia Pitch

Browning® V-Belt Sheave, Bushed Bore, 3/4 to 2-11/16 in Bore Diameter, 9.35 in OD, 9.3 in Pitch Diameter, 3 Number of Grooves, 3-1/4 in Face Width, 3-17/32 in Overall Length, Iron, For Use With: A and B Cross Section Belts

• Large Selection, MVP companion sheaves are offered in A/B, C, 5V and 8V belt sections and from 3 to 10 grooves giving Browning® the largest selection of MVP Companion sheaves in the industry
• Statically balanced, All MVP companion sheaves are statically balanced to assure smooth, vibration-free performance
• VP sheaves consist of a male with a threaded barrel and a female with a threaded bore
• The male section with threaded barrel has flat surfaces at 180 deg increments that allow a flat surface for the setscrew to mate with
• When discs are moved toward each other, the belt rides higher in the groove and the pitch diameter of the sheave is larger which increases the driven speed
• When discs are moved away from each other, the belt rides lower and the pitch diameter is smaller decreasing the driven speed
