Browning® 3MVP40B54X1-5/8 3MVP40B54X1-5/8

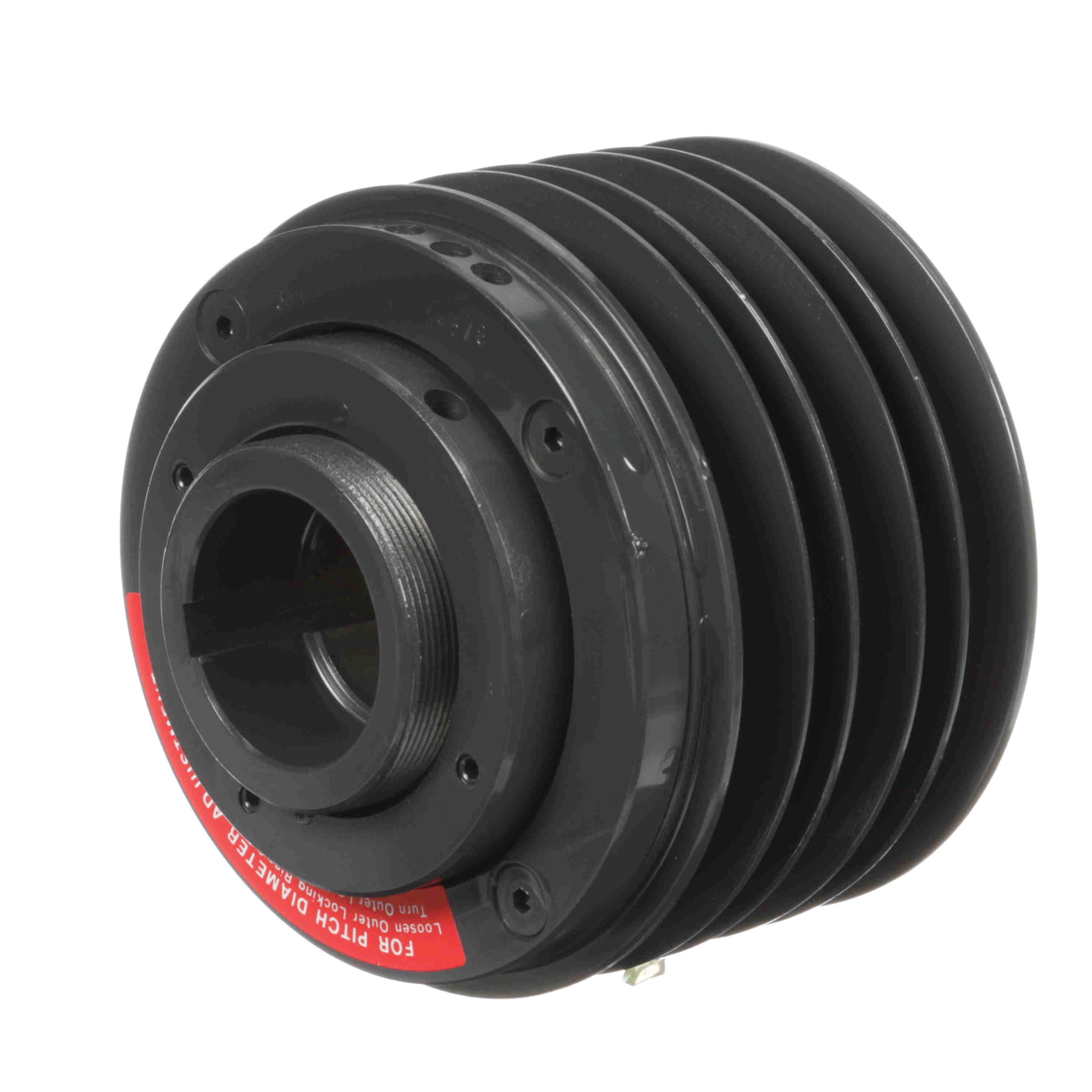

Browning 3MVP40B54X1-5/8 Multiple Variable Pitch Sheave, Finished Bore, 1-5/8 in Dia Bore, 3.06 to 3.43 in W Face

Browning® 3MVP40B54X1-5/8 Multiple Variable Pitch Sheave, Finished Bore, 1-5/8 in Dia Bore, 3.06 to 3.43 in W Face

Browning® 3MVP40B54X1-5/8 Multiple Variable Pitch Sheave, Finished Bore, 1-5/8 in Dia Bore, 3.06 to 3.43 in W Face 3MVP40B54X1-5/8

Browning® Multiple Variable Pitch Sheave, Finished Bore, 1-5/8 in Bore Diameter, A, B Belt Section Size, 3 Number of Grooves, 5.2 to 4.1 in Pitch Diameter, 3.06 to 3.43 in Face Width, Iron, 5.68 in Dia

Belt Section Size      :      A, B
Bore Diameter      :      1-5/8 in
Bore Type      :      Finished
Dimensions      :      5.68 in Dia
Face Width      :      3.06 to 3.43 in
Material      :      Iron
Number of Grooves      :      3
Pitch Diameter      :      5.2 to 4.1 in
  • Large selection - MVP companion sheaves are offered in A/B, C, 5 V and 8 V-belt sections and from 3 to 10 grooves giving Browning® the largest selection of MVP companion sheaves in the industry
  • Statically balanced - all MVP companion sheaves are statically balanced to assure smooth, vibration-free performance
  • VP sheaves consist of a male with a threaded barrel and a female with a threaded bore
  • The male section with threaded barrel has flat surfaces at 180 deg increments that allow a flat surface for the setscrew to mate with
  • When discs are moved toward each other, the belt rides higher in the groove and the pitch diameter of the sheave is larger which increases the driven speed
  • When discs are moved away from each other, the belt rides lower and the pitch diameter is smaller decreasing the driven speed
