Browning® 3TB160 3TB160

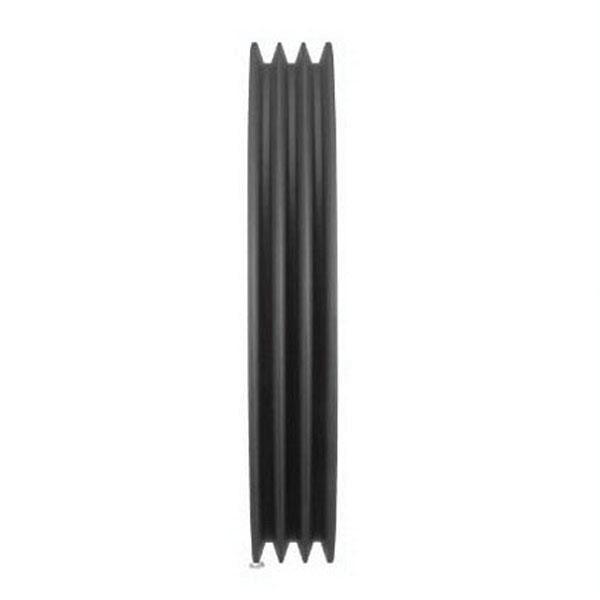

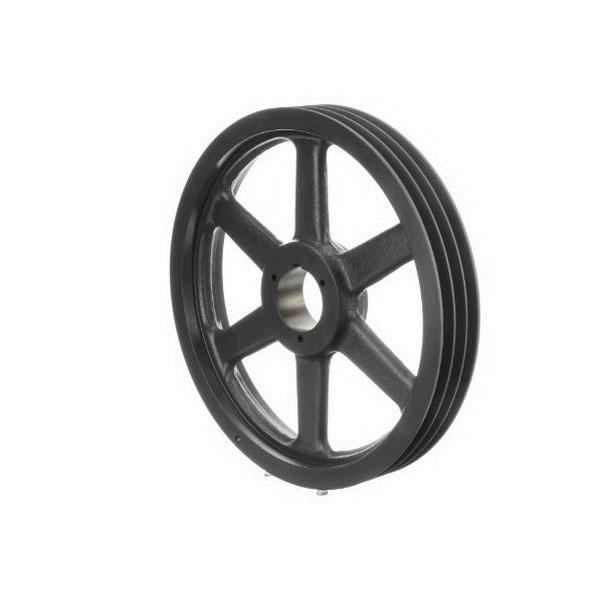

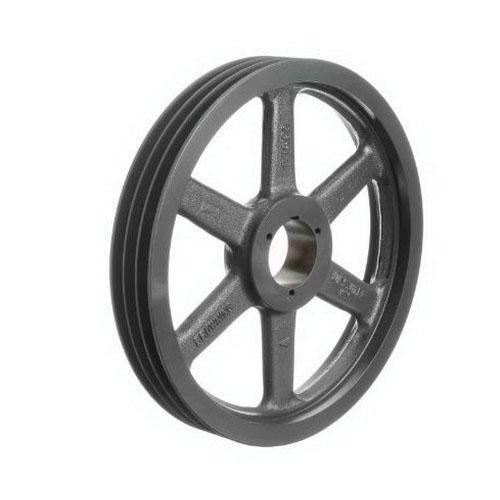

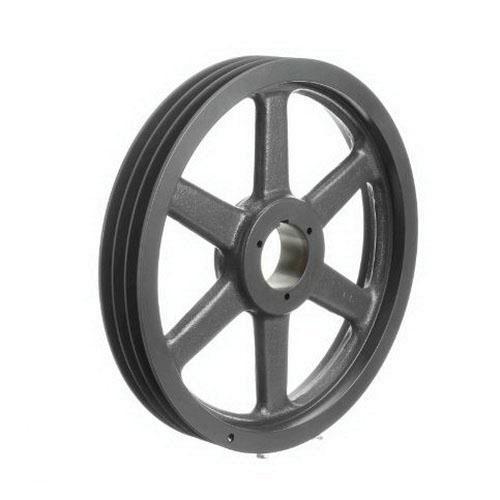

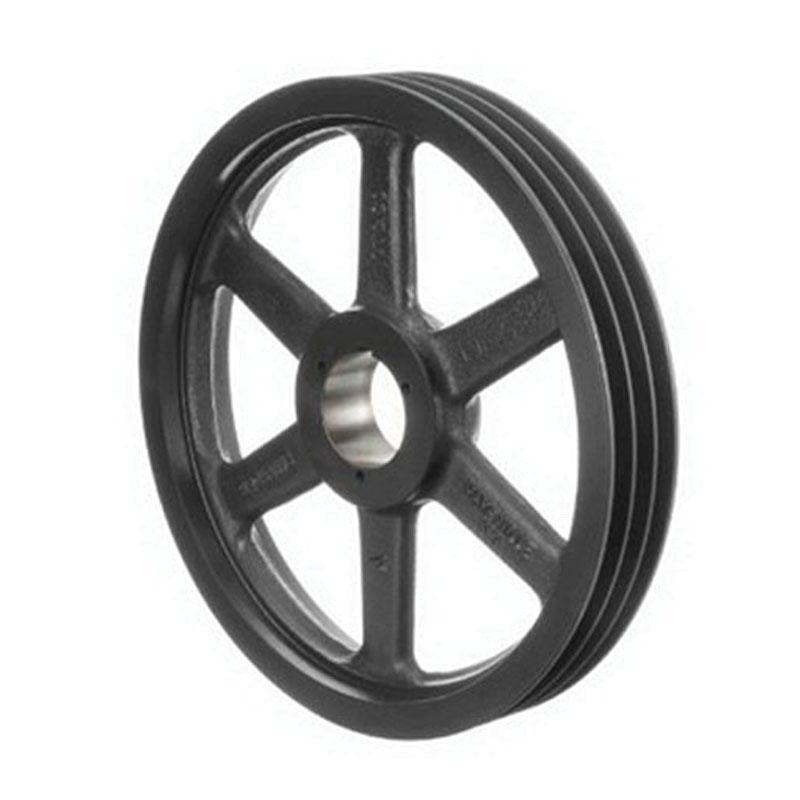

Browning 3TB160 Multiple Sheave, Split Taper Bushed Bore, 3/4 in Dia Bore, 2-1/2 in W Face

Browning® 3TB160 Multiple Sheave, Split Taper Bushed Bore, 3/4 in Dia Bore, 2-1/2 in W Face, 15.8 in Dia Pitch

Browning® 3TB160 Multiple Sheave, Split Taper Bushed Bore, 3/4 in Dia Bore, 2-1/2 in W Face, 15.8 in Dia Pitch 3TB160

Browning® Multiple Sheave, Model: 3TB-L_Sheave_Master, Split Taper Bushed Bore, 3/4 in Bore Diameter, A, B Belt Section Size, 3 Number of Grooves, 15.8 in Pitch Diameter, 2-1/2 in Face Width, 1/2 in Keyway Size, Iron, 3.2 in L x 3.15 in W

Belt Section Size      :      A, B
Bore Diameter      :      3/4 in
Bore Type      :      Split Taper Bushed
Dimensions      :      3.2 in L x 3.15 in W
Face Width      :      2-1/2 in
Keyway Size      :      1/2 in
Material      :      Iron
Model      :      3TB-L_Sheave_Master
Number of Grooves      :      3
Pitch Diameter      :      15.8 in
  • Incorporates Browning split taper bushing, the only bushing system that provides a true key-to-key drive to both the shaft and the hub
  • All Browning B sheaves permit the running of A and B belts to be run in them, thus providing a variety of different pitch diameters and horsepower
  • Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
  • pdfInstruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/Browning_1B5V46_Instruction_Installation_Manual.pdf
  • pdfLine Drawing https://assets.unilogcorp.com/267/ITEM/DOC/Browning_3TB160_Line_Drawing.pdf
