Browning® 3TB42 3TB42

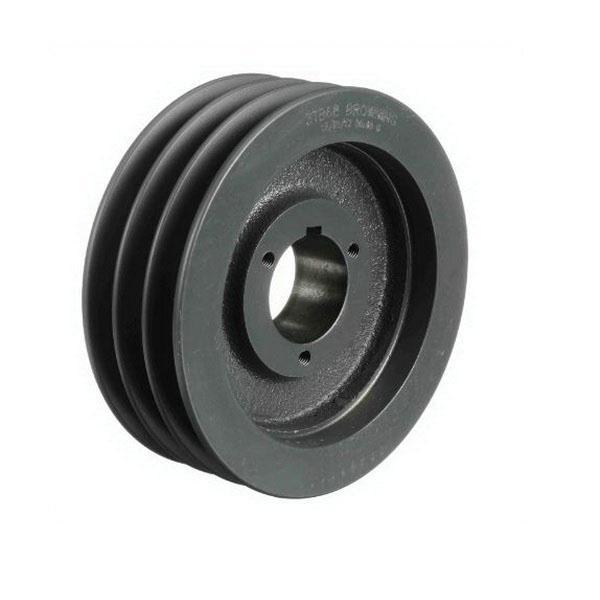

Browning 3TB42 Multiple Sheave, Split Taper Bushed Bore, 1/2 in Dia Bore, 2-1/2 in W Face

Browning® 3TB42 Multiple Sheave, Split Taper Bushed Bore, 1/2 in Dia Bore, 2-1/2 in W Face, 4 in Dia Pitch

Browning® 3TB42 Multiple Sheave, Split Taper Bushed Bore, 1/2 in Dia Bore, 2-1/2 in W Face, 4 in Dia Pitch 3TB42

Browning® Multiple Sheave, Model: 3TB-S_Sheave_Master, Split Taper Bushed Bore, 1/2 in Bore Diameter, A, B Belt Section Size, P1 Bushing Style, 3 Number of Grooves, 4 in Pitch Diameter, 2-1/2 in Face Width, 3/8 in Keyway Size, Iron, 3.33 in L x 3.375 in W

Belt Section Size      :      A, B
Bore Diameter      :      1/2 in
Bore Type      :      Split Taper Bushed
Bushing Style      :      P1
Dimensions      :      3.33 in L x 3.375 in W
Face Width      :      2-1/2 in
Keyway Size      :      3/8 in
Material      :      Iron
Model      :      3TB-S_Sheave_Master
Number of Grooves      :      3
Pitch Diameter      :      4 in
  • Incorporates Browning split taper bushing, the only bushing system that provides a true key-to-key drive to both the shaft and the hub
  • All Browning B sheaves permit the running of A and B belts to be run in them, thus providing a variety of different pitch diameters and horsepower
  • Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
  • pdfInstruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/Browning_1B5V46_Instruction_Installation_Manual.pdf
  • pdfLine Drawing https://assets.unilogcorp.com/267/ITEM/DOC/Browning_3TB42_Line_Drawing.pdf
