Browning® 3TB62 3TB62

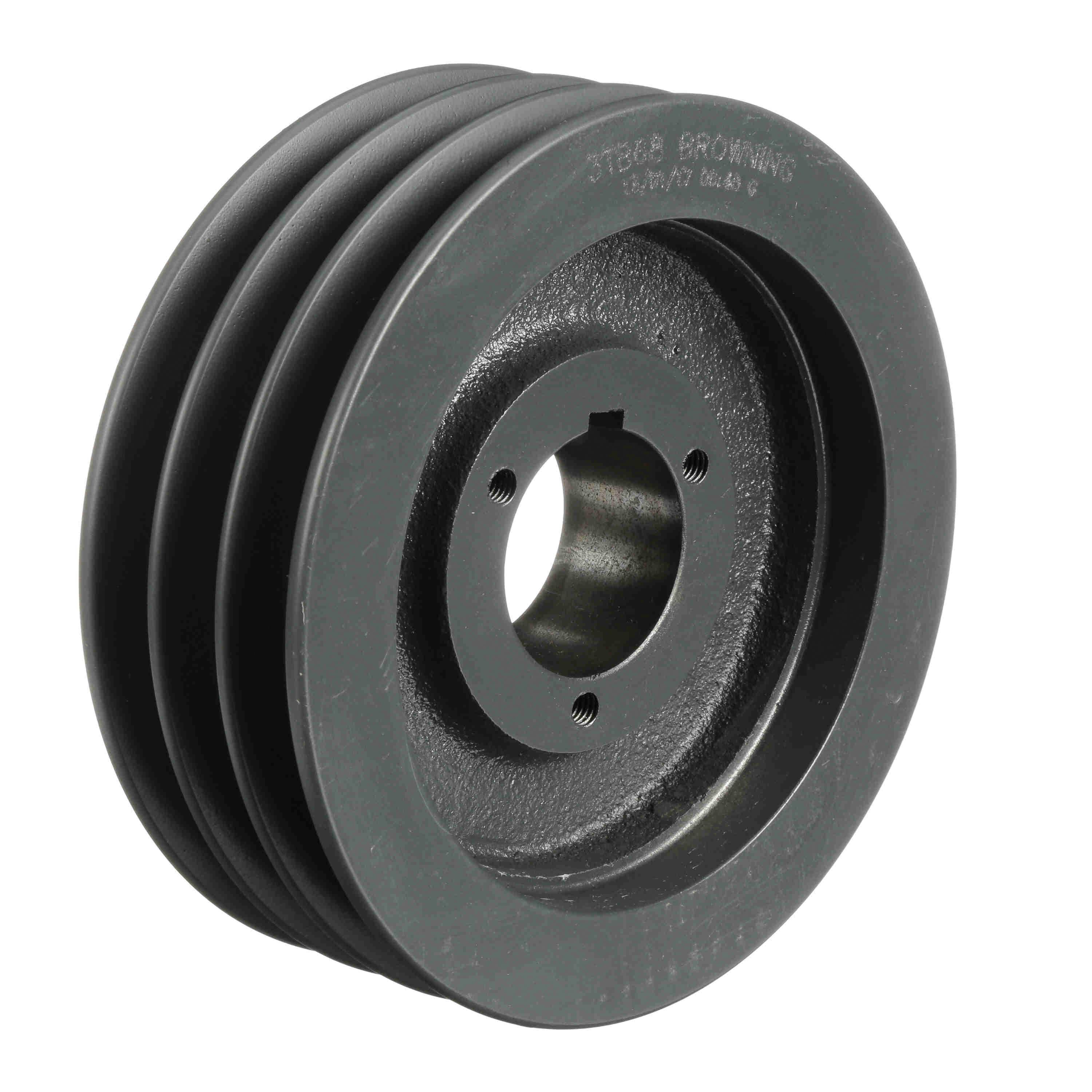

Browning 3TB62 Multiple Sheave, Split Taper Bushed Bore, 1/2 in Dia Bore, 2-1/2 in W Face, 6 in, 6-1/2 in Dia Pitch

Browning® 3TB62 Multiple Sheave, Split Taper Bushed Bore, 1/2 in Dia Bore, 2-1/2 in W Face, 6 in Dia Pitch

Browning® 3TB62 Multiple Sheave, Split Taper Bushed Bore, 1/2 in Dia Bore, 2-1/2 in W Face, 6 in Dia Pitch 3TB62

Browning® Multiple Sheave, Model: 3TB-L_Sheave_Master, Split Taper Bushed Bore, 1/2 in Bore Diameter, A, B Belt Section Size, P1 Bushing Style, 3 Number of Grooves, 6 in Pitch Diameter, 2-1/2 in Face Width, 3/8 in Keyway Size, Iron, 6.55 in Dia x 2.7 in L x 2.71 in W

Belt Section Size      :      A, B
Bore Diameter      :      1/2 in
Bore Type      :      Split Taper Bushed
Bushing Style      :      P1
Dimensions      :      6.55 in Dia x 2.7 in L x 2.71 in W
Face Width      :      2-1/2 in
Keyway Size      :      3/8 in
Material      :      Iron
Model      :      3TB-L_Sheave_Master
Number of Grooves      :      3
Pitch Diameter      :      6 in
  • Incorporates Browning® split taper bushing - the only bushing system that provides a true key-to-key drive to both the shaft and the hub
  • Combination groove - all Browning® B sheaves permit the running of A and B belts to be run in them, thus providing a variety of different pitch diameters and horsepowers
  • Close grain cast iron - close grain cast iron allows Browning® to machine our sheaves to the closest tolerances possible
