Browning® 4B5V44 4B5V44

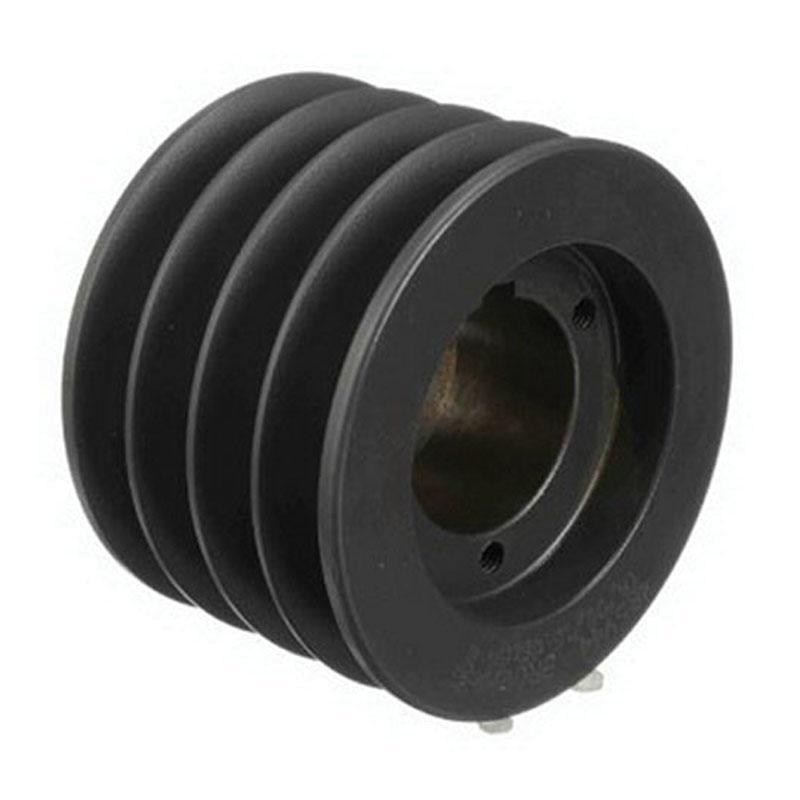

Browning 4B5V44 Multiple Sheave, 1/2 in Dia Bore, 3.16 in W Face, 4.2 in (A), 4.7 in (B), 4.5 in (5V) Dia Pitch

Browning® 4B5V44 Multiple Sheave, 1/2 in Dia Bore, 3.16 in W Face, 4.2 in Dia Pitch

Browning® 4B5V44 Multiple Sheave, 1/2 in Dia Bore, 3.16 in W Face, 4.2 in Dia Pitch 4B5V44

Browning® Multiple Sheave, Model: 4B5V-SheaveMaster, 1/2 in Bore Diameter, 5V, A, B Belt Section Size, 4 Number of Grooves, 4.2 in Pitch Diameter, 3.16 in Face Width, 3/8 in Keyway Size, Iron, 3.41 in L x 3.41 in W

Belt Section Size      :      5V, A, B
Bore Diameter      :      1/2 in
Dimensions      :      3.41 in L x 3.41 in W
Face Width      :      3.16 in
Keyway Size      :      3/8 in
Material      :      Iron
Model      :      4B5V-SheaveMaster
Number of Grooves      :      4
Pitch Diameter      :      4.2 in
  • All Browning B5V sheaves permit the running of A, 4L, B, 5L and 5V belts to be run in them, thus providing a variety of different pitch diameters and horsepower
  • Incorporates Browning split taper bushing, the only bushing system that provides a true key-to-key drive to both the shaft and the hub
  • New casting design, the B5V castings were developed using cad and finite elements analysis to determine where to add and eliminate material
  • pdfInstruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/Browning_1B5V46_Instruction_Installation_Manual.pdf
  • pdfLine Drawing https://assets.unilogcorp.com/267/ITEM/DOC/Browning_4B5V124_Line_Drawing.pdf
