Browning® 4TB36 4TB36

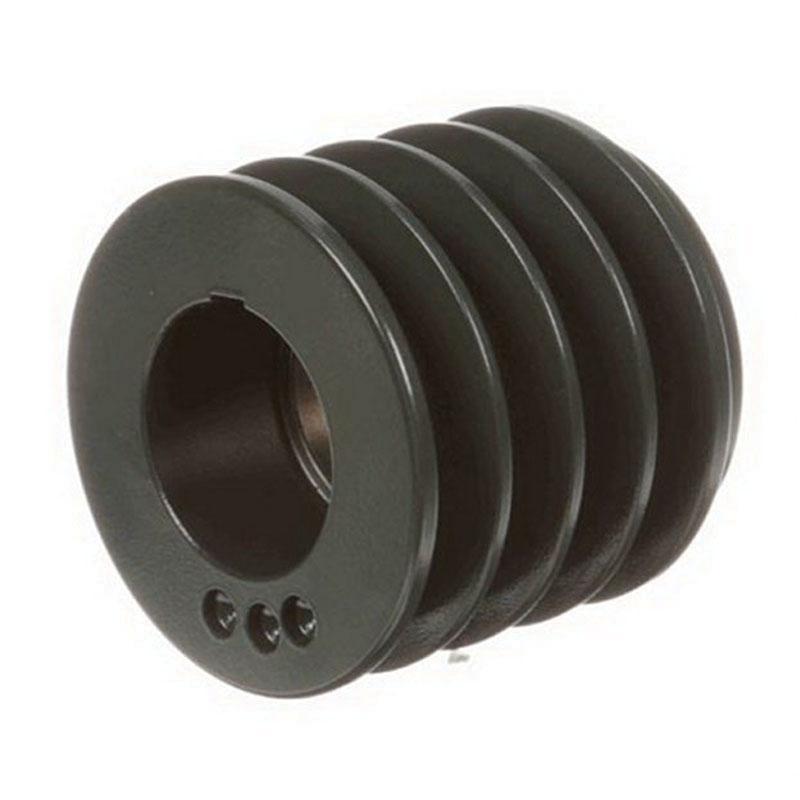

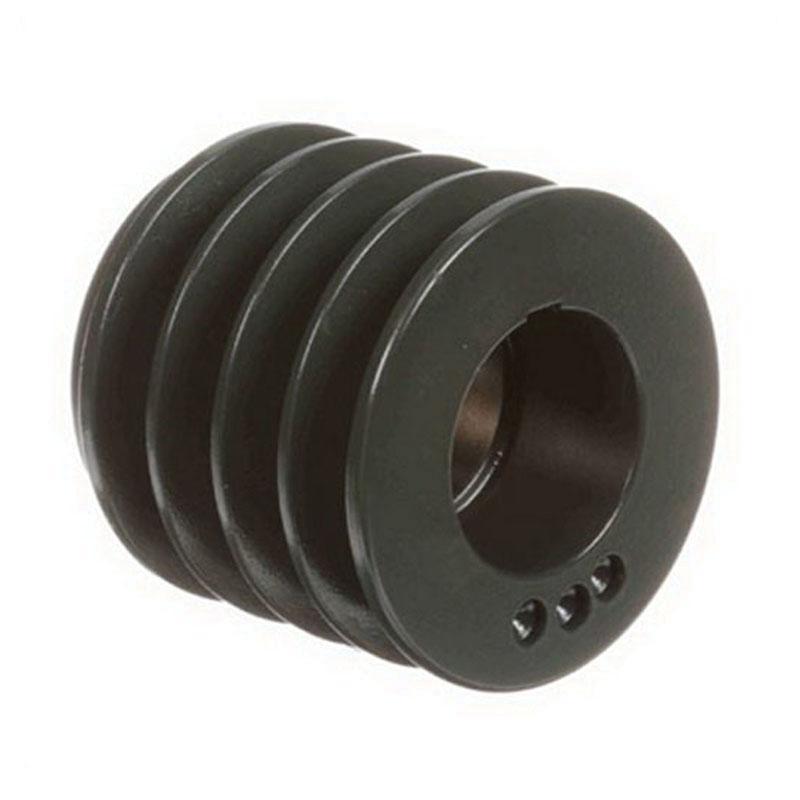

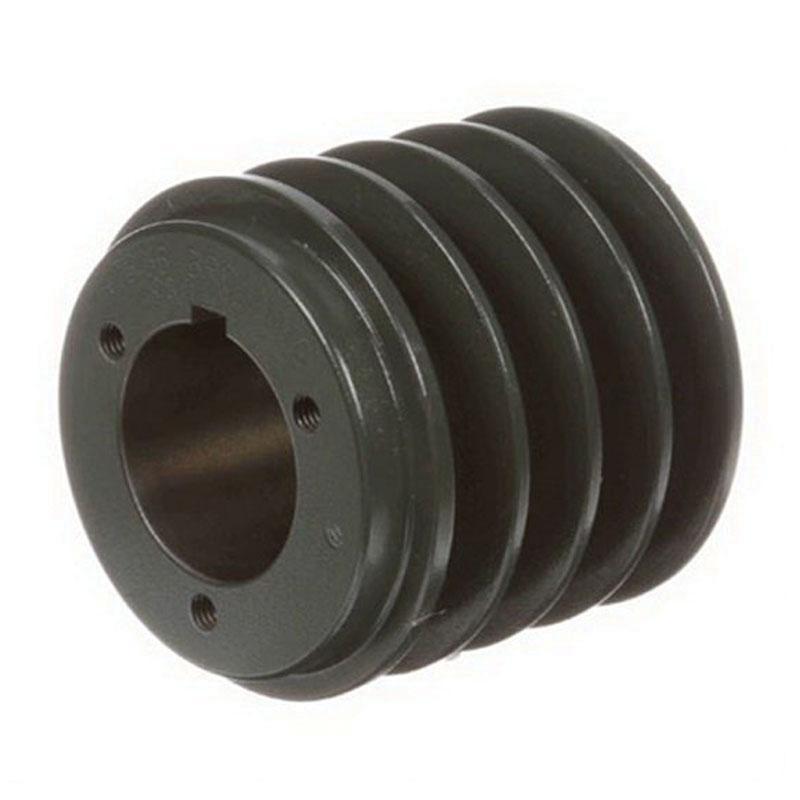

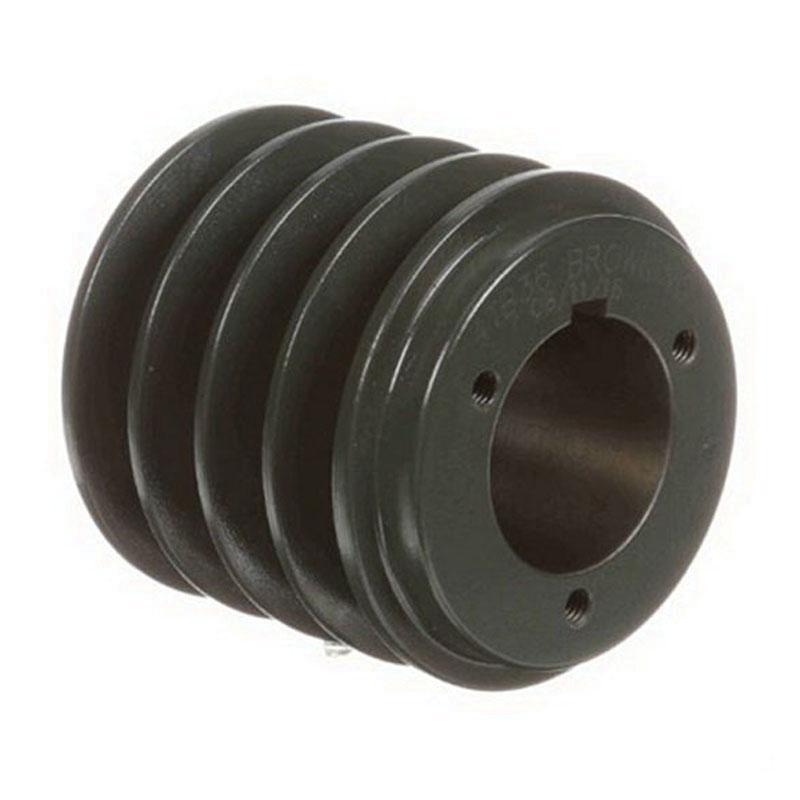

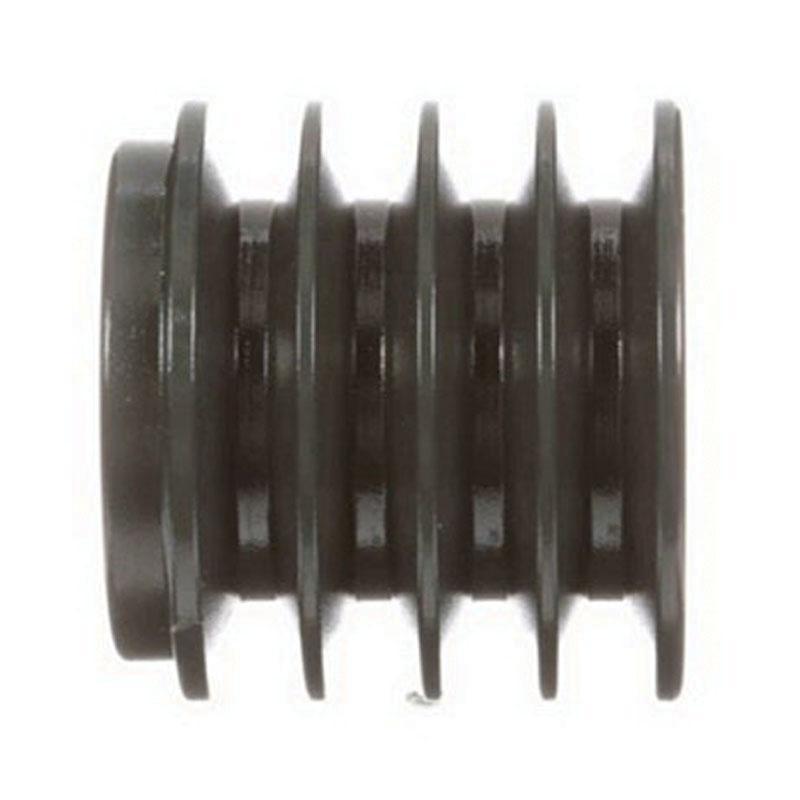

Browning 4TB36 Multiple Sheave, Split Taper Bushed Bore, 3/4 in Dia Bore, 3-1/4 in W Face

Browning® 4TB36 Multiple Sheave, Split Taper Bushed Bore, 3/4 in Dia Bore, 3-1/4 in W Face, 3.4 in Dia Pitch

Browning® 4TB36 Multiple Sheave, Split Taper Bushed Bore, 3/4 in Dia Bore, 3-1/4 in W Face, 3.4 in Dia Pitch 4TB36

Browning® Multiple Sheave, Model: 4TB-L_Sheave_Master, Split Taper Bushed Bore, 3/4 in Bore Diameter, A, B Belt Section Size, P2 Bushing Style, 4 Number of Grooves, 3.4 in Pitch Diameter, 3-1/4 in Face Width, 3/8 in Keyway Size, Iron, 4.51 in L x 4.56 in W

Belt Section Size      :      A, B
Bore Diameter      :      3/4 in
Bore Type      :      Split Taper Bushed
Bushing Style      :      P2
Dimensions      :      4.51 in L x 4.56 in W
Face Width      :      3-1/4 in
Keyway Size      :      3/8 in
Material      :      Iron
Model      :      4TB-L_Sheave_Master
Number of Grooves      :      4
Pitch Diameter      :      3.4 in
  • Incorporates Browning split taper bushing, the only bushing system that provides a true key-to-key drive to both the shaft and the hub
  • All Browning B sheaves permit the running of A and B belts to be run in them, thus providing a variety of different pitch diameters and horsepower
  • Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
  • pdfInstruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/Browning_1B5V46_Instruction_Installation_Manual.pdf
  • pdfLine Drawing https://assets.unilogcorp.com/267/ITEM/DOC/Browning_4TB136_Line_Drawing.pdf
