Browning® 5B250E 5B250E

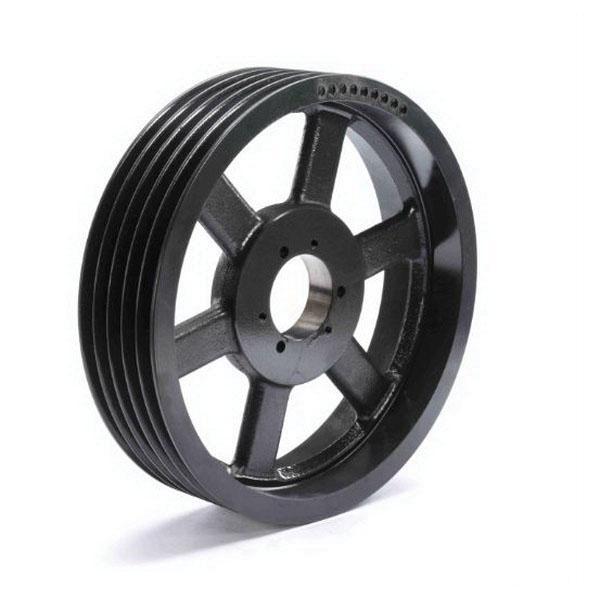

Browning 5B250E Multiple Sheave, QD Bushed Bore, 7/8 in Dia Bore, 4 in W Face, 24.8 in (A), 25.3 in (B) Dia Pitch

Browning® 5B250E Multiple Sheave, Bushed Bore, 7/8 in Dia Bore, 4 in W Face, 24.8 in Dia Pitch

Browning® 5B250E Multiple Sheave, Bushed Bore, 7/8 in Dia Bore, 4 in W Face, 24.8 in Dia Pitch 5B250E

Browning® Multiple Sheave, Model: 5AB_LG_SheaveMaster, Bushed Bore, 7/8 in Bore Diameter, A, B Belt Section Size, E Bushing Style, 5 Number of Grooves, 24.8 in Pitch Diameter, 2.64 in Length Through Bore, 4 in Face Width, Iron

Belt Section Size      :      A, B
Bore Diameter      :      7/8 in
Bore Type      :      Bushed
Bushing Style      :      E
Face Width      :      4 in
Length Through Bore      :      2.64 in
Material      :      Iron
Model      :      5AB_LG_SheaveMaster
Number of Grooves      :      5
Pitch Diameter      :      24.8 in
  • All Browning B sheaves permit the running of A and B belts to be run in them, thus providing a variety of different pitch diameters and horsepower
  • Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
  • pdfInstruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/Browning_1B5V46_Instruction_Installation_Manual.pdf
  • pdfLine Drawing https://assets.unilogcorp.com/267/ITEM/DOC/Browning_5B250E_Line_Drawing.pdf
