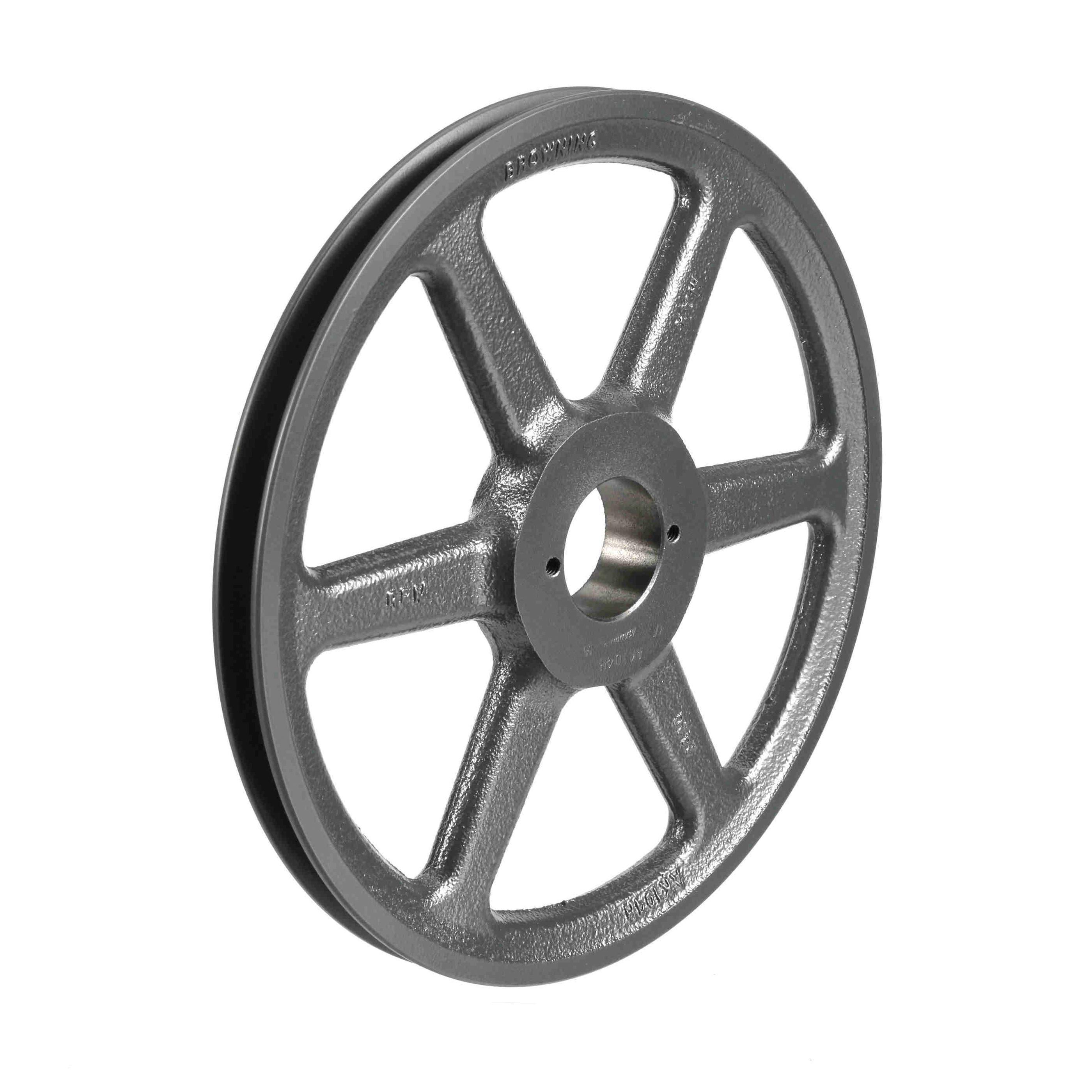

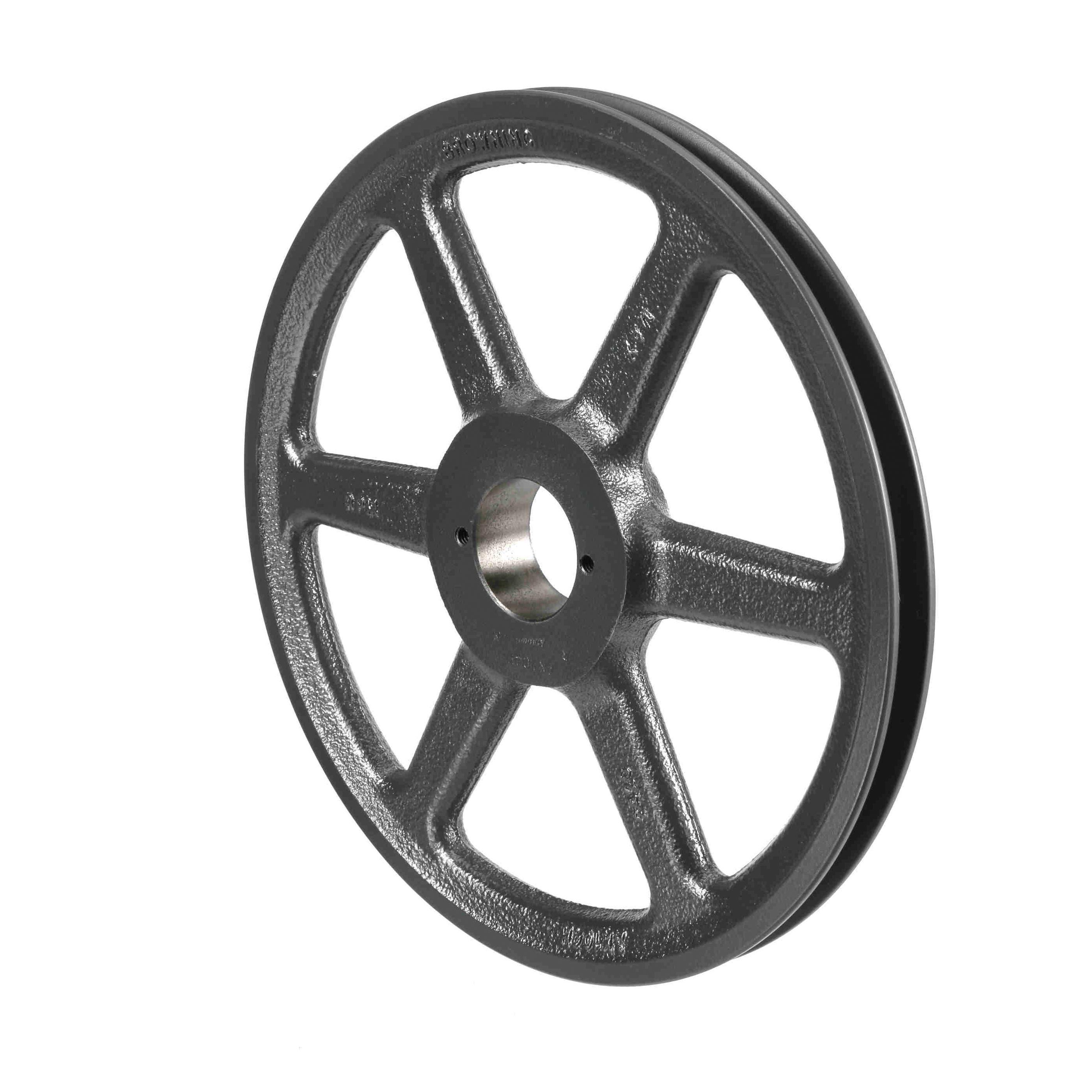

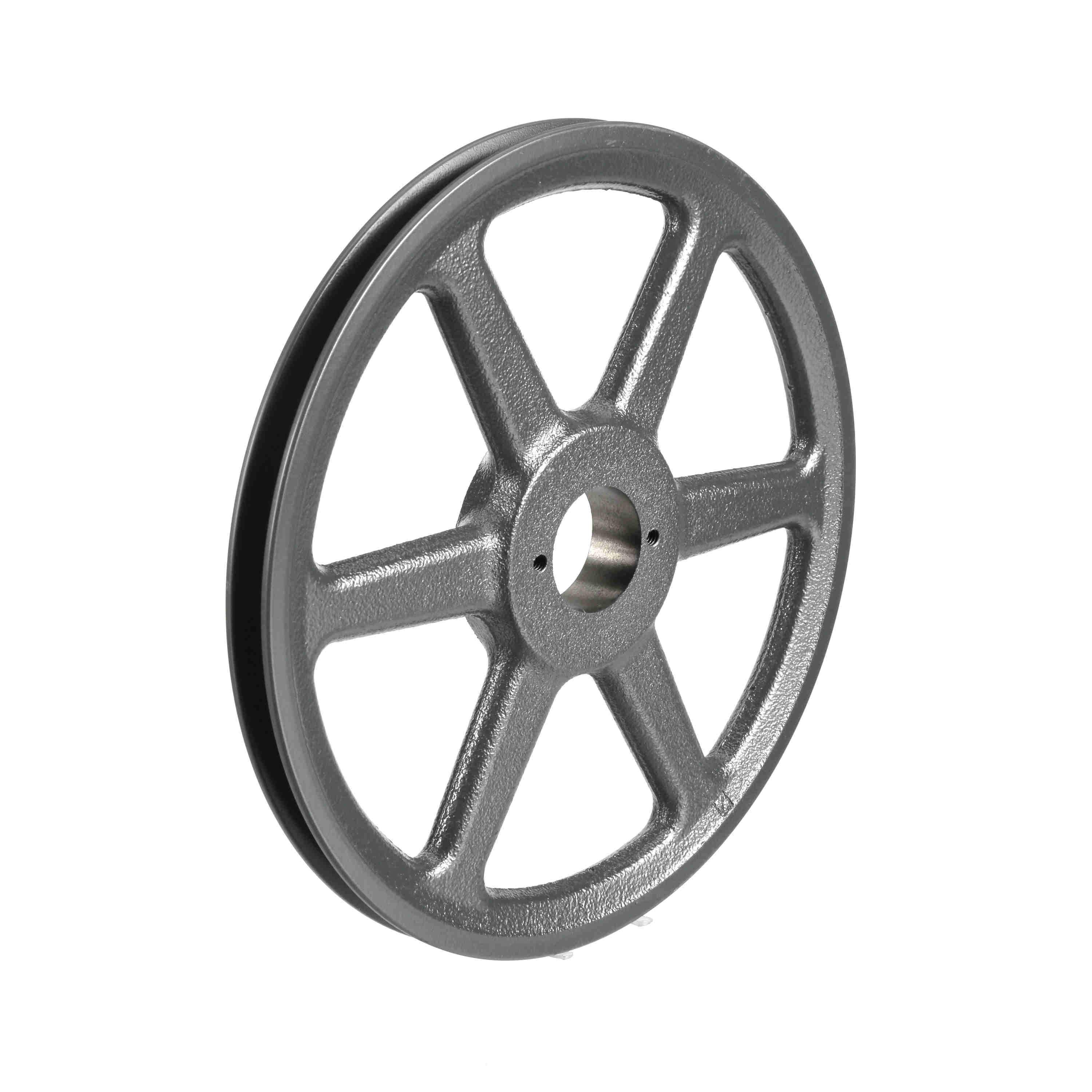

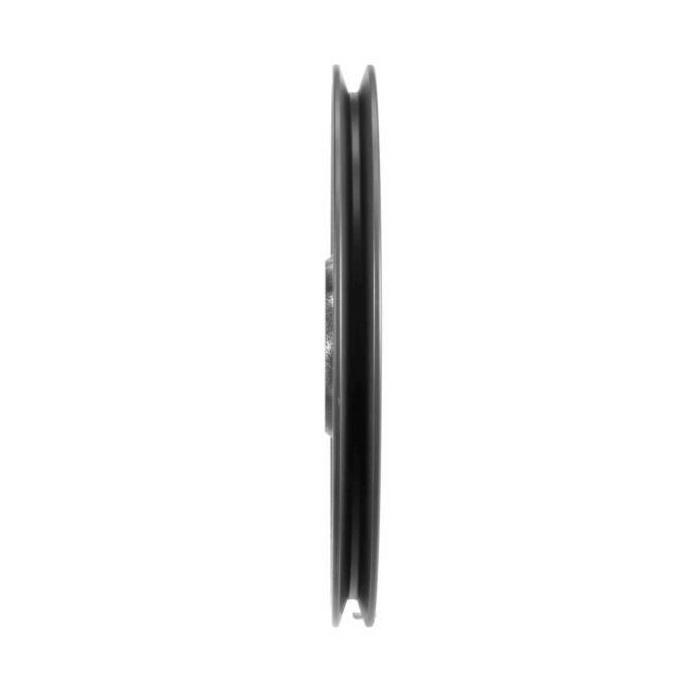

Browning AK104H V-Belt Sheave, 3/8 to 1-1/2 in Dia Bore, Bushed Bore, 10-1/4 in OD, 1-Groove, 10.2 in Dia Pitch
Browning® AK104H V-Belt Sheave, 3/8 to 1-1/2 in Dia Bore, Bushed Bore, 10-1/4 in OD, 1 -Groove, 10.2 in Dia Pitch
Browning® AK104H V-Belt Sheave, 3/8 to 1-1/2 in Dia Bore, Bushed Bore, 10-1/4 in OD, 1 -Groove, 10.2 in Dia Pitch AK104H- Brand Name: Browning®
- Part Number: AK104H
- UPC: 662289122134
- Check Stock
Add To Favorites ListBrowning® V-Belt Sheave, Bushed Bore, 3/8 to 1-1/2 in Bore Diameter, 10-1/4 in OD, 10.2 in Pitch Diameter, 1 Number of Grooves, 3/4 in Face Width, Split Taper Bushing Type, 1-1/2 in Overall Length, Iron, For Use With: 3L, 4L and A Cross Section Belts
| Bore Diameter | : | 3/8 to 1-1/2 in |
| Bore Type | : | Bushed |
| Bushing Type | : | Split Taper |
| Face Width | : | 3/4 in |
| Material | : | Iron |
| Number of Grooves | : | 1 |
| Outside Diameter | : | 10-1/4 in |
| Overall Length | : | 1-1/2 in |
| Pitch Diameter | : | 10.2 in |
| Suitable For Use With | : | 3L, 4L and A Cross Section Belts |
- Largest selection of H bushed sheaves of any other manufacturer, Browning® offers bushed sheaves in both A and B Combination (A/B) configuration
- Sheaves are statically balanced, all sheaves are statically balanced to assure smooth, vibration free performance
- Close grain cast iron allows Browning® to machine our sheaves to the closest tolerances possible
