Browning® AK184H AK184H

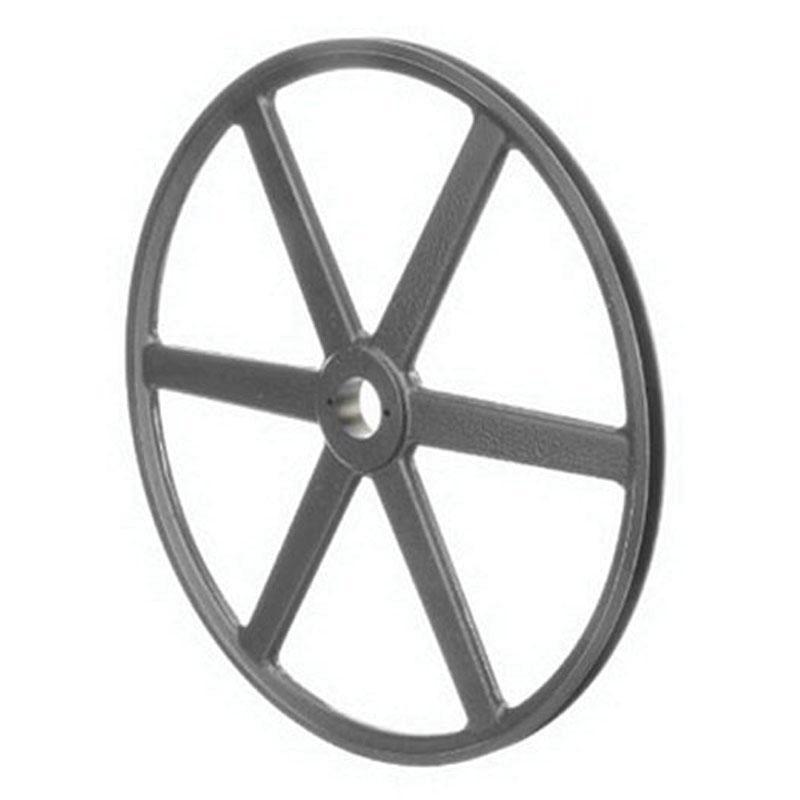

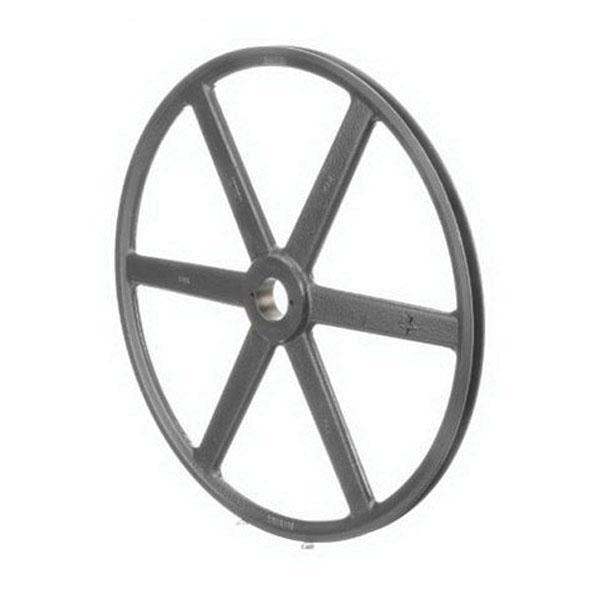

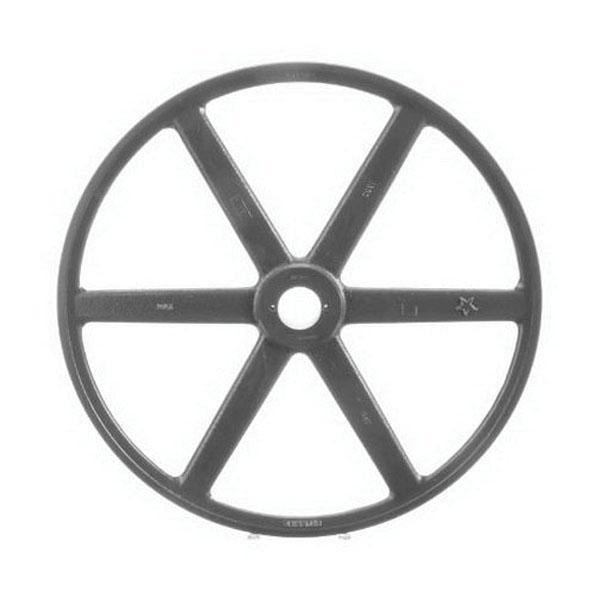

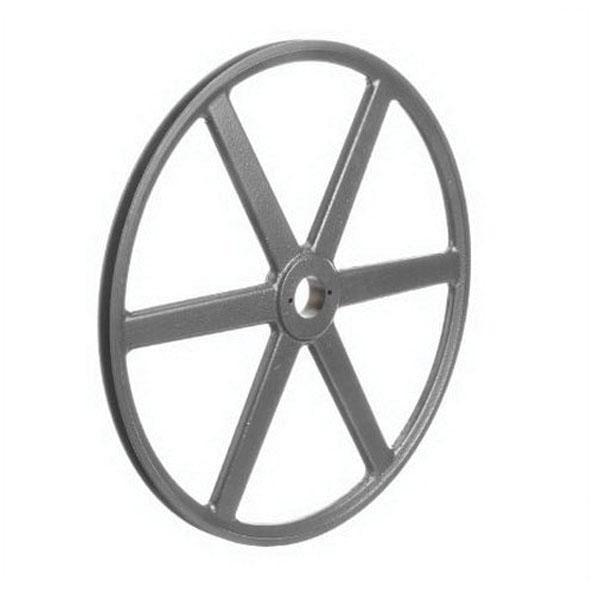

Browning AK184H FHP Sheave, Split Taper Bushed Bore, 3/8 in Dia Bore, 3/4 in W Face

Browning® AK184H FHP Sheave, Split Taper Bushed Bore, 3/8 in Dia Bore, 3/4 in W Face, 17.66 in Dia Pitch

Browning® AK184H FHP Sheave, Split Taper Bushed Bore, 3/8 in Dia Bore, 3/4 in W Face, 17.66 in Dia Pitch AK184H

Browning® FHP Sheave, Model: AKH_Sheave_Master, Split Taper Bushed Bore, 3/8 in Bore Diameter, 3L, 4L, A Belt Section Size, 1 Number of Grooves, 17.66 in Pitch Diameter, 3/4 in Face Width, Iron, 1-1/2 in L x 1-1/2 in W

Belt Section Size      :      3L, 4L, A
Bore Diameter      :      3/8 in
Bore Type      :      Split Taper Bushed
Dimensions      :      1-1/2 in L x 1-1/2 in W
Face Width      :      3/4 in
Material      :      Iron
Model      :      AKH_Sheave_Master
Number of Grooves      :      1
Pitch Diameter      :      17.66 in
  • Largest selection of H bushed sheaves of any other manufacturer, Browning offers bushed sheaves in both A and B combination (A/B) configuration
  • Sheaves are statically balanced, all sheaves are statically balanced to assure smooth, vibration-free performance
  • Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
  • pdfLine Drawing https://assets.unilogcorp.com/267/ITEM/DOC/Browning_AK184H_Line_Drawing.pdf
