Browning® AK44X 1 1/8 AK44X 1 1/8

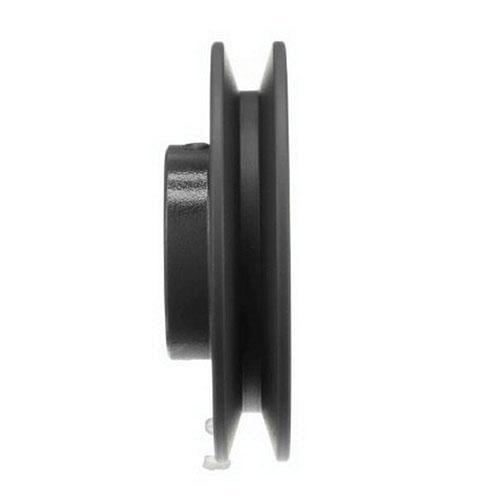

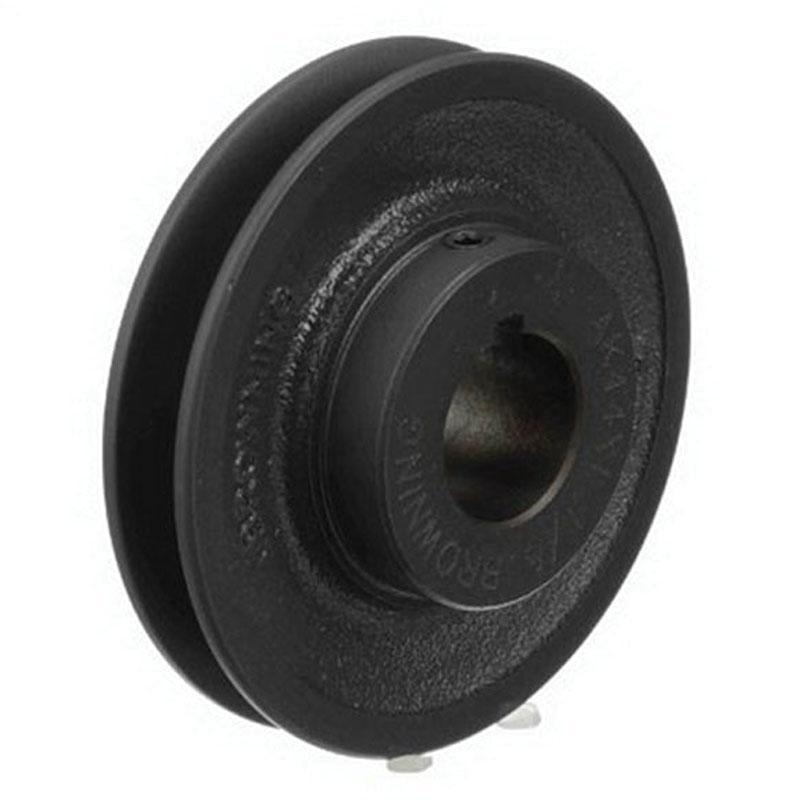

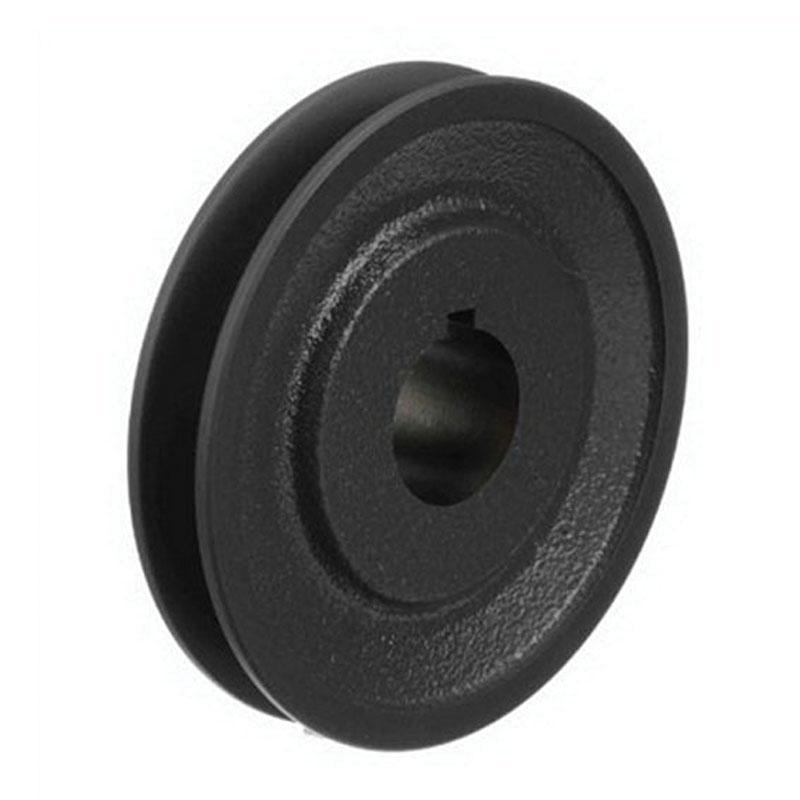

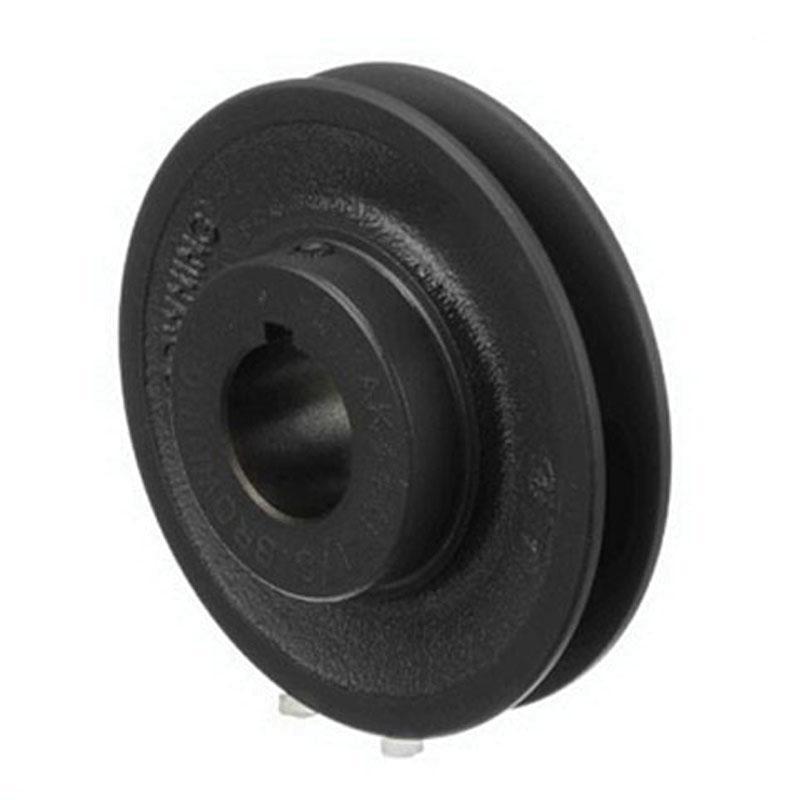

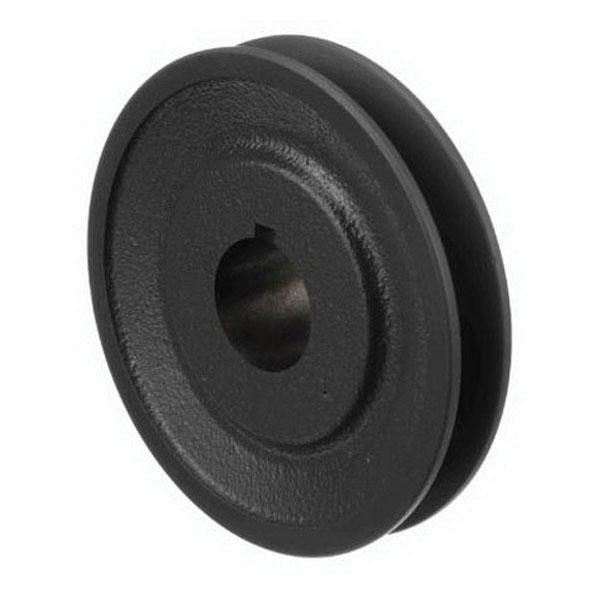

Browning AK44X 1 1/8 FHP Sheave, Finished with Keyway and SS Bore, 1-1/8 in Dia Bore, 3/4 in W Face

Browning® AK44X 1 1/8 FHP Sheave, Finished with Keyway Bore, 1-1/8 in Dia Bore, 3/4 in W Face, 4.2 in Dia Pitch

Browning® AK44X 1 1/8 FHP Sheave, Finished with Keyway Bore, 1-1/8 in Dia Bore, 3/4 in W Face, 4.2 in Dia Pitch AK44X 1 1/8

Browning® FHP Sheave, Model: AK_Sheave_Master2, Finished with Keyway Bore, 1-1/8 in Bore Diameter, 3L, A Belt Section Size, 1 Number of Grooves, 4.2 in Pitch Diameter, 3/4 in Face Width, 1/4 in Keyway Size, Iron, 1.22 in W

Belt Section Size      :      3L, A
Bore Diameter      :      1-1/8 in
Bore Type      :      Finished with Keyway
Dimensions      :      1.22 in W
Face Width      :      3/4 in
Keyway Size      :      1/4 in
Material      :      Iron
Model      :      AK_Sheave_Master2
Number of Grooves      :      1
Pitch Diameter      :      4.2 in
  • Largest selection of finished bore sheaves of any other manufacturer, Browning offers finished bore sheaves in both A and B combination (A/B) configuration
  • All sheaves are statically balanced to assure smooth, vibration-free performance
  • Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
  • pdfLine Drawing https://assets.unilogcorp.com/267/ITEM/DOC/Browning_AK44X_1_1_8_Line_Drawing.pdf
