Browning® B 2 3/8 B 2 3/8

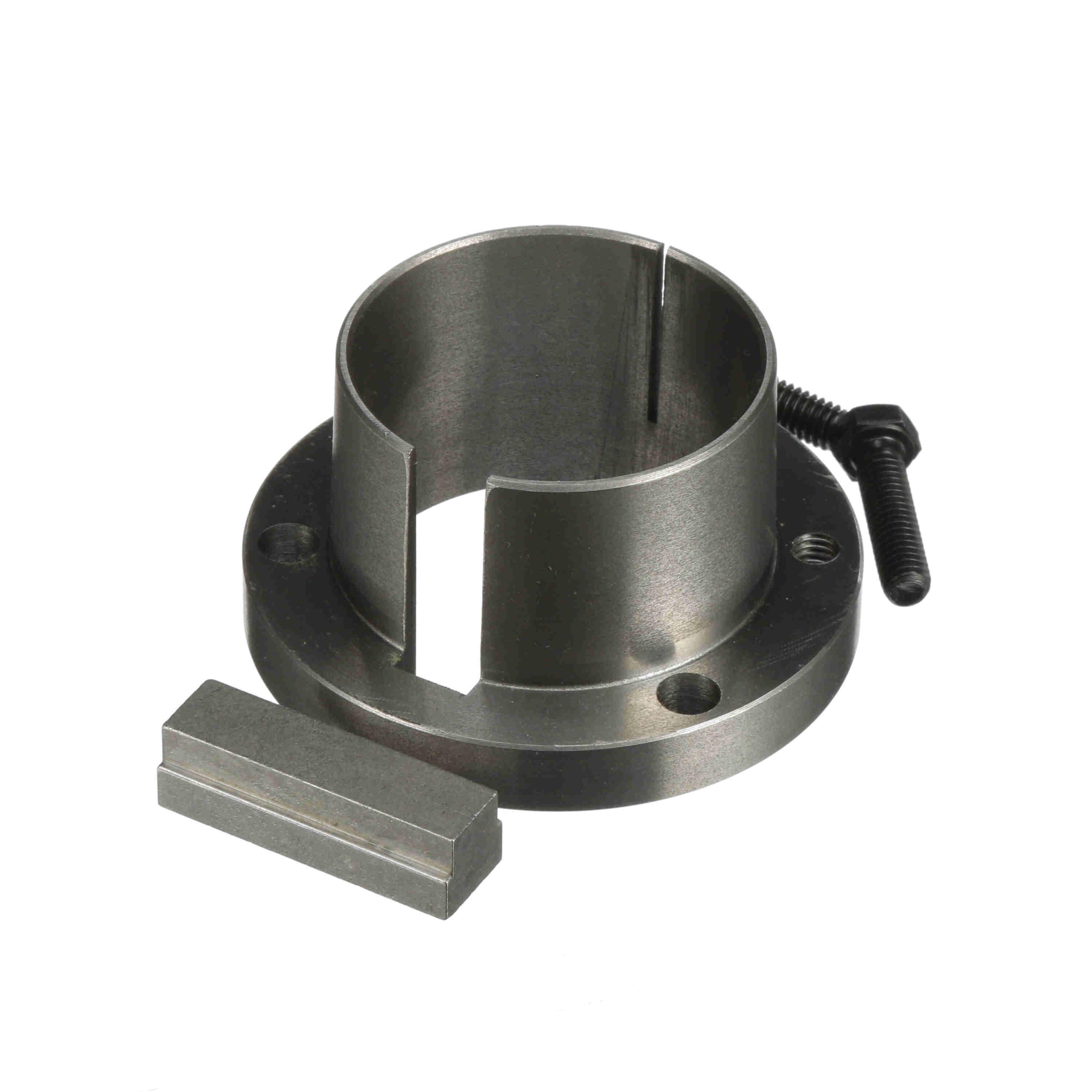

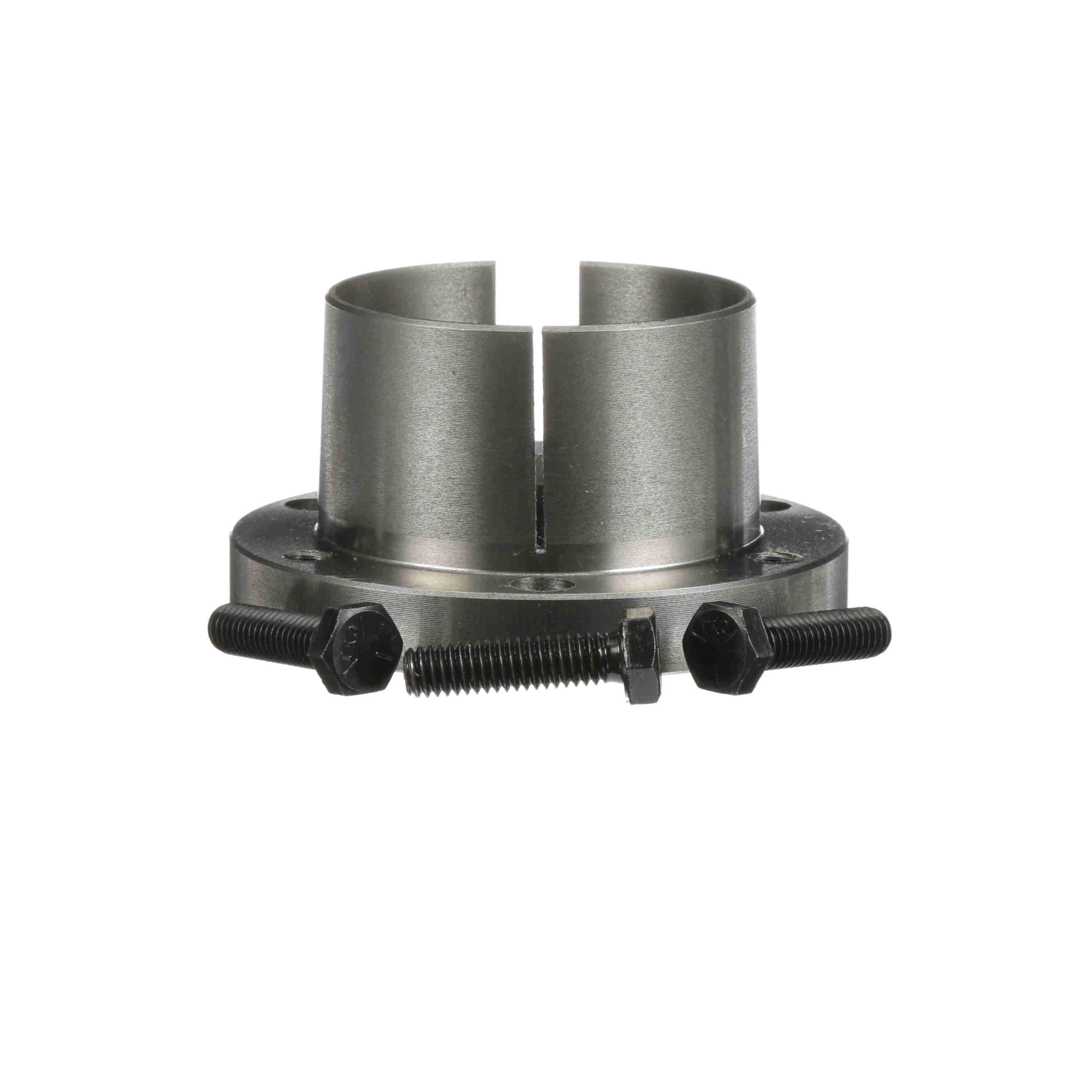

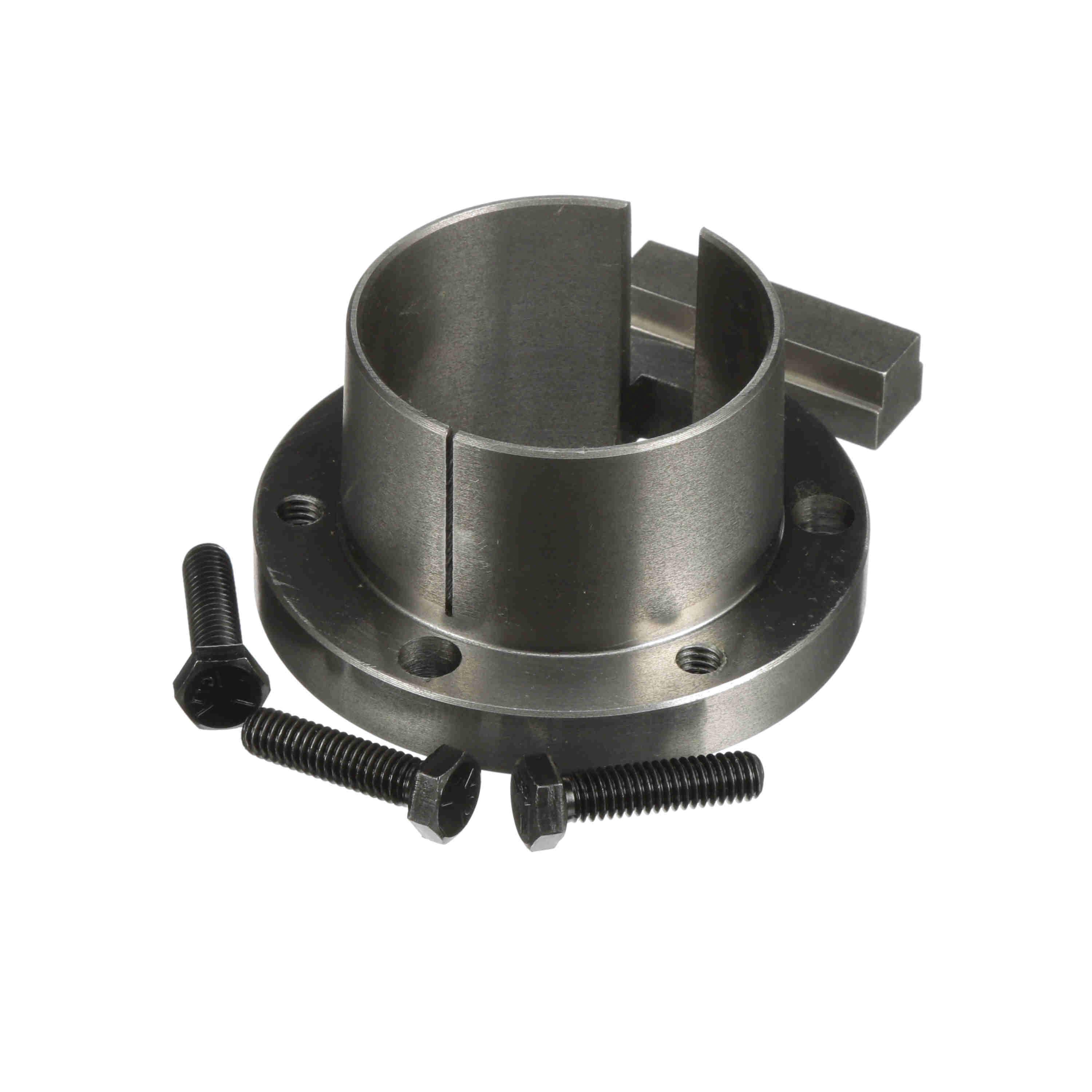

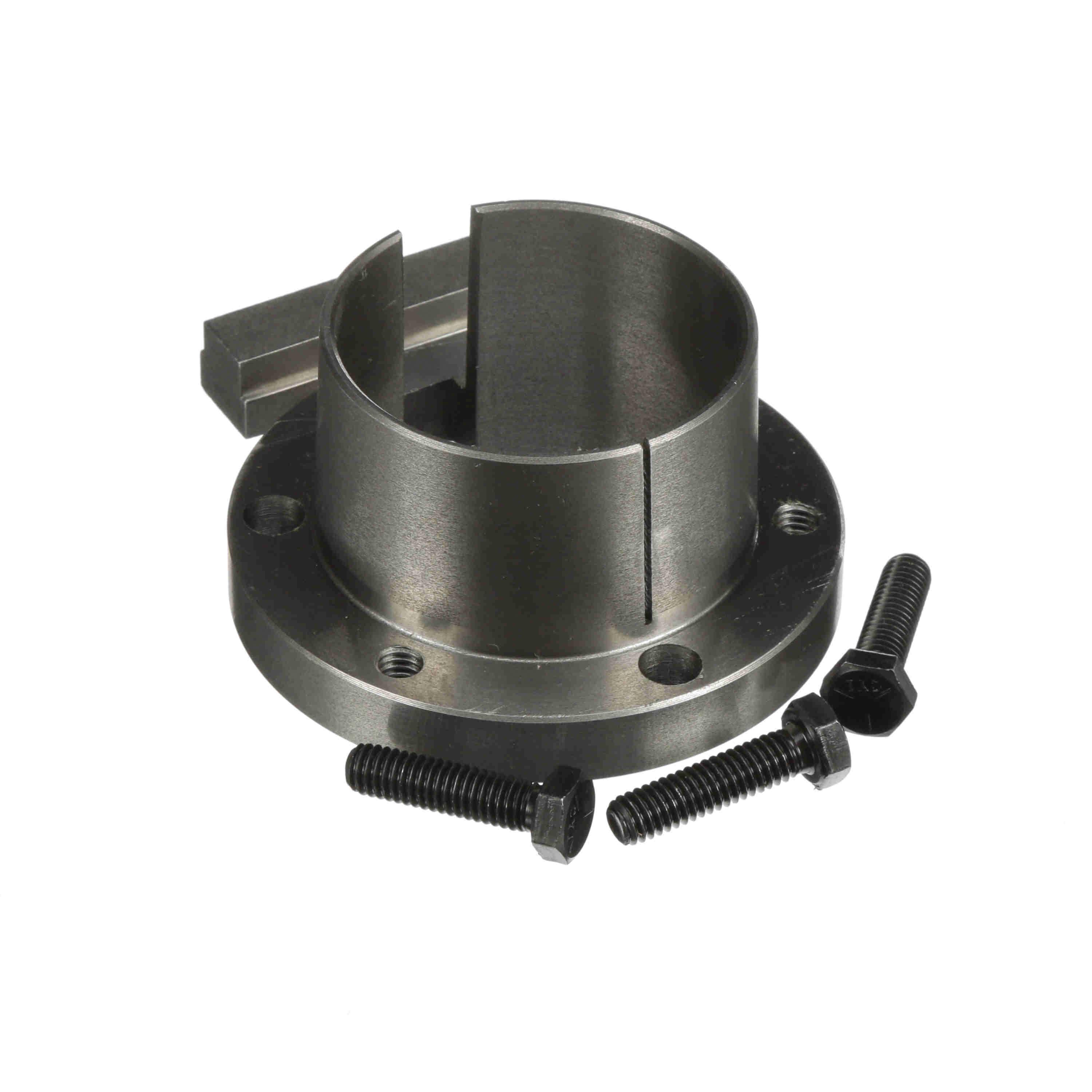

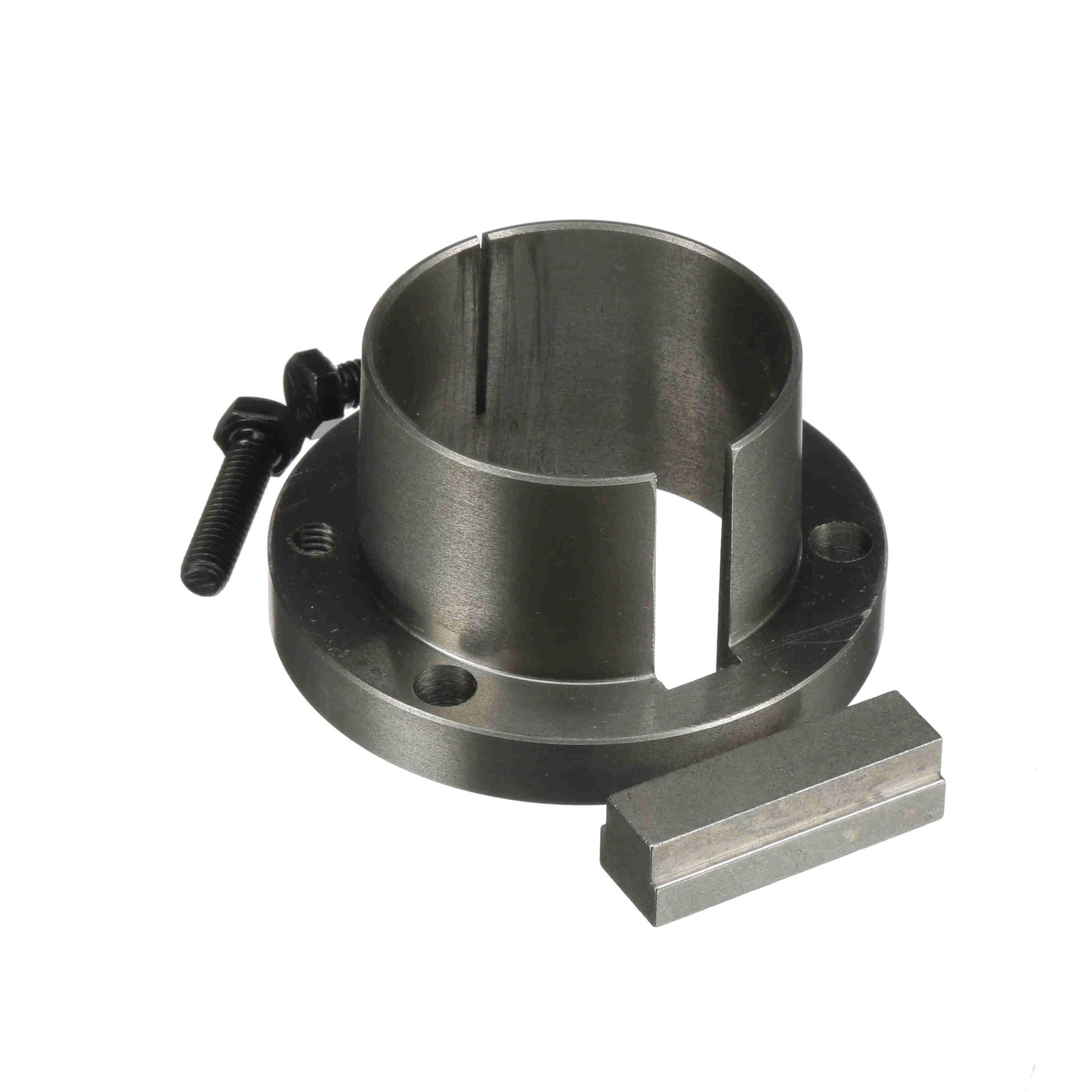

Browning B 2 3/8 Split Taper Bushing, 2-3/8 in Dia Bore, 1-15/16 in L, Sintered Steel

Browning® B 2 3/8 Split Tapered Bushing, 2-3/8 in Dia Bore, 1-15/16 in L, Steel

Browning® B 2 3/8 Split Tapered Bushing, 2-3/8 in Dia Bore, 1-15/16 in L, Steel B 2 3/8

Browning® Split Tapered Bushing, Model: B-Type2_Bushing_Master, 2-3/8 in Bore Diameter, 3-11/16 in OD, 1-15/16 in Length, 5/8 x 5/16 in Keyway Size, Solid Flange Type, 3 Number of Cap Screws, 5/16 x 1-1/4 in Cap Screw Size, 192 in-lb Torque, Steel

Bore Diameter      :      2-3/8 in
Cap Screw Size      :      5/16 x 1-1/4 in
Flange Type      :      Solid
Keyway Size      :      5/8 x 5/16 in
Length      :      1-15/16 in
Material      :      Steel
Model      :      B-Type2_Bushing_Master
Number of Cap Screws      :      3
Outside Diameter      :      3-11/16 in
Torque Rating      :      192 in-lb
  • If this bushing ever fails Browning will replace it free of charge
  • Solid flange and double split barrel assures better concentricity to the shaft
  • Key-to-key drive, with keys on both the shaft and product to provide the strongest possible drive
  • 3/4 in/ft taper on barrel, self-locking taper provides the highest degree of mechanical locking product to product
  • Lifetime warranty - if this bushing ever fails Browning will replace it free of charge
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Browning_Q1_13_16_Catalog.pdf
  • pdfInstruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/Browning_Q1_13_16_Instruction_Installation_Manual.pdf
  • pdfLine Drawing https://assets.unilogcorp.com/267/ITEM/DOC/Browning_Q1_13_16_Line_Drawing.pdf
