Browning® 3B5V160 3B5V160

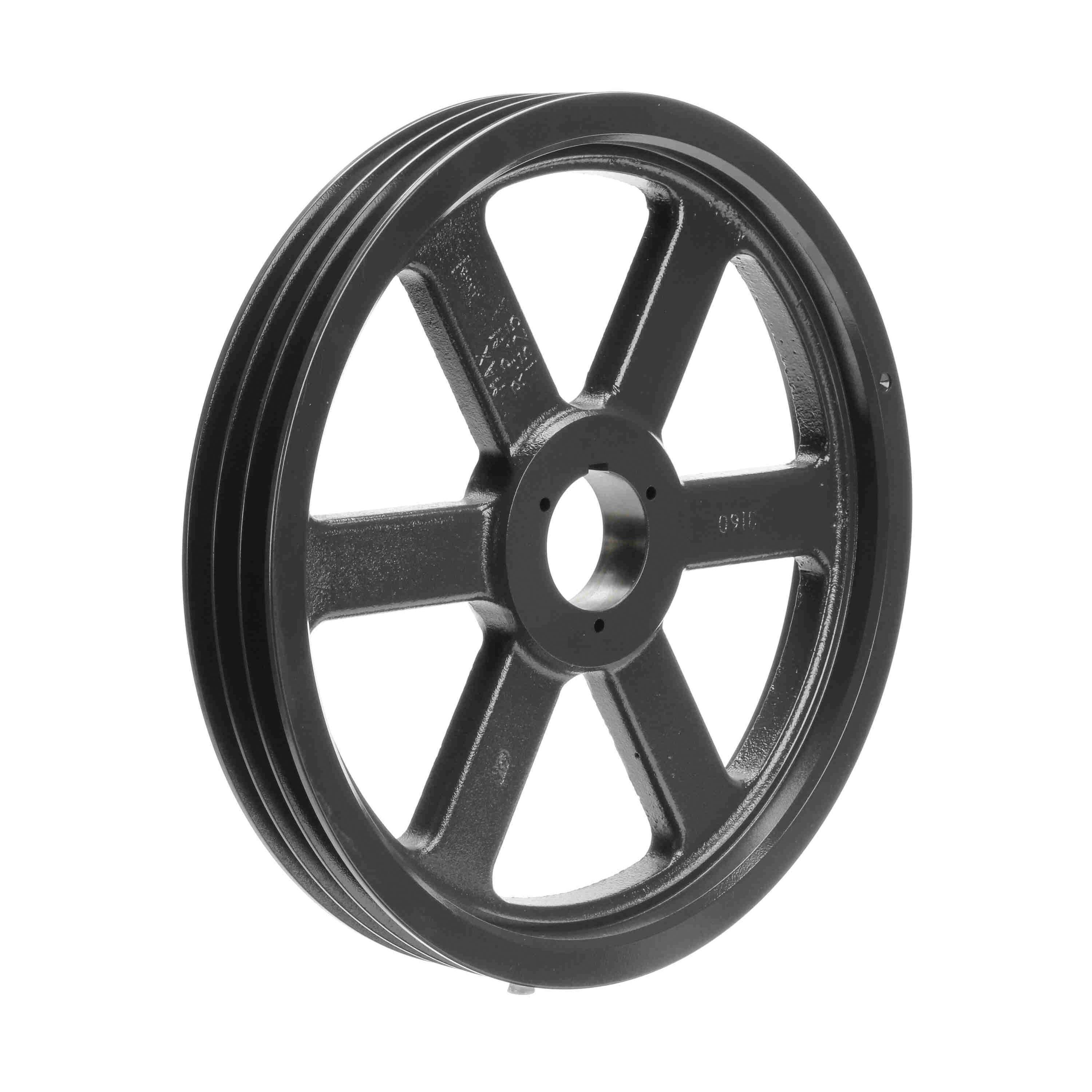

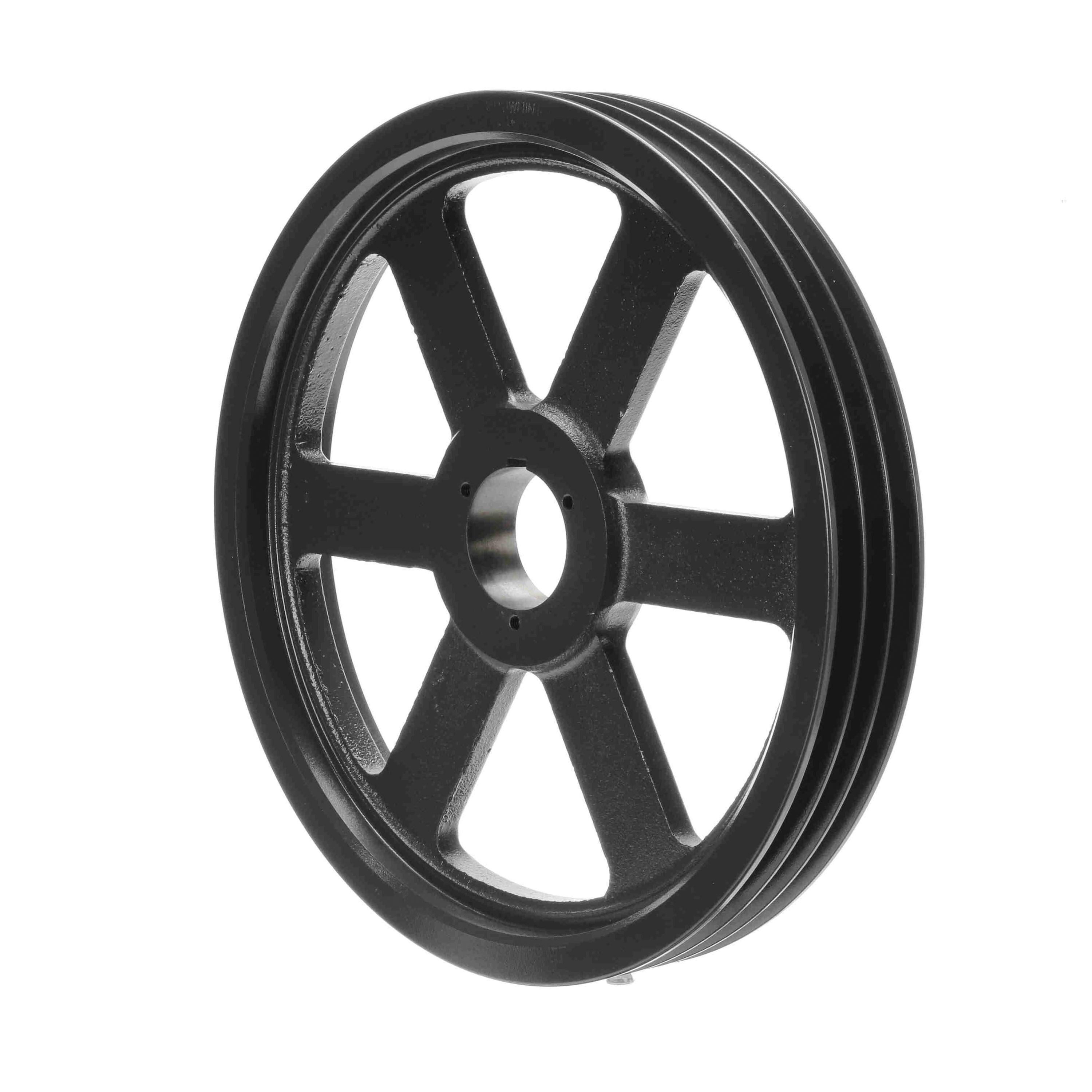

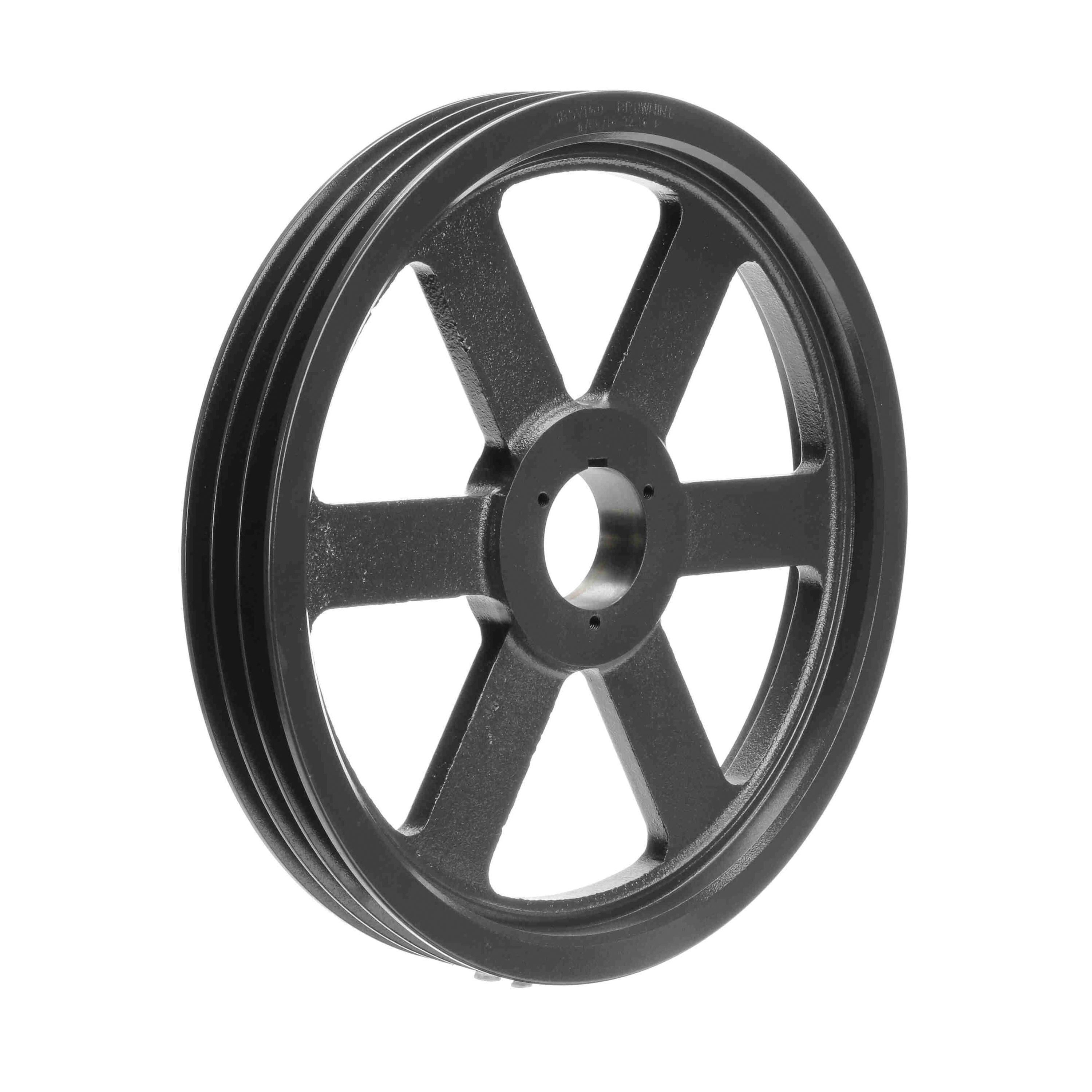

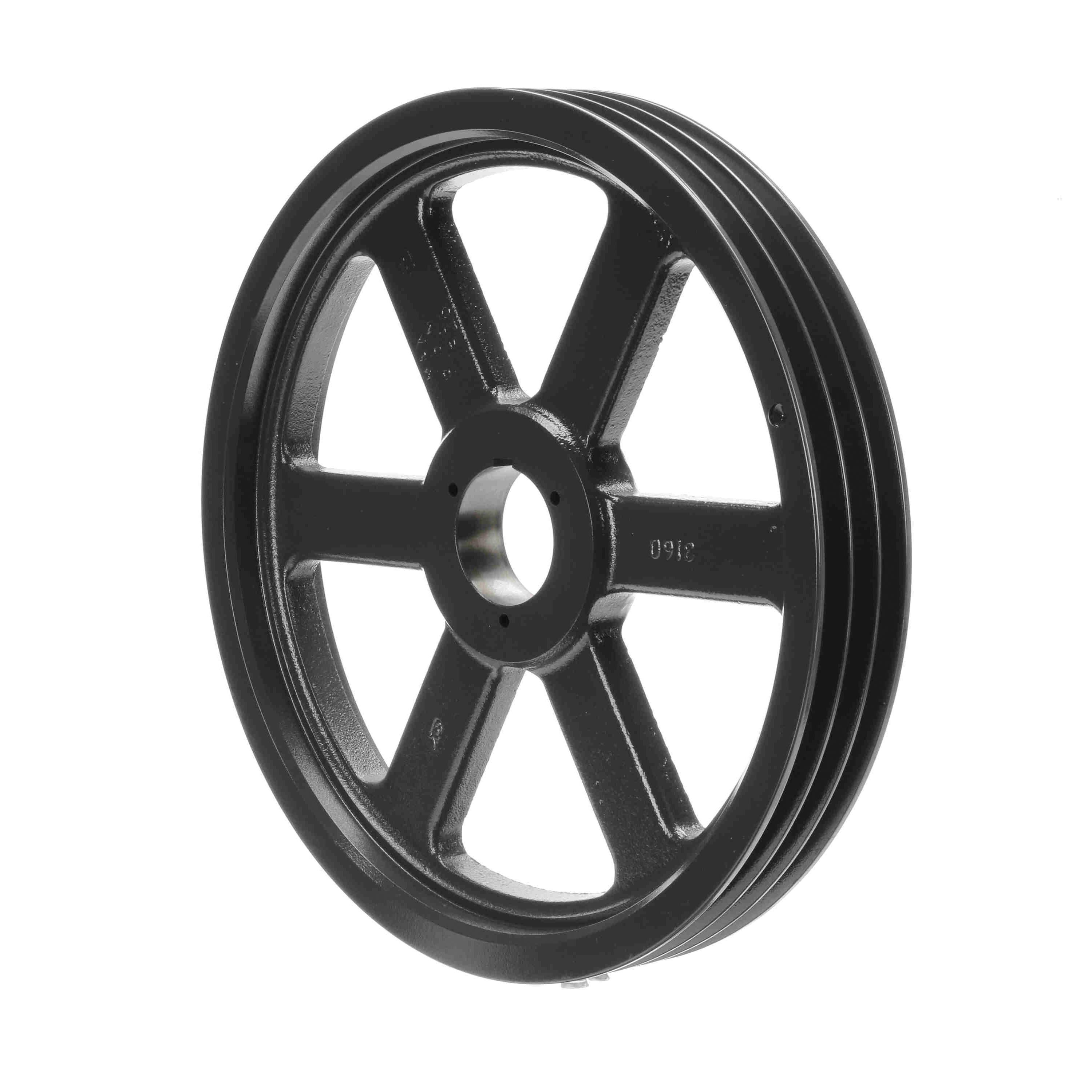

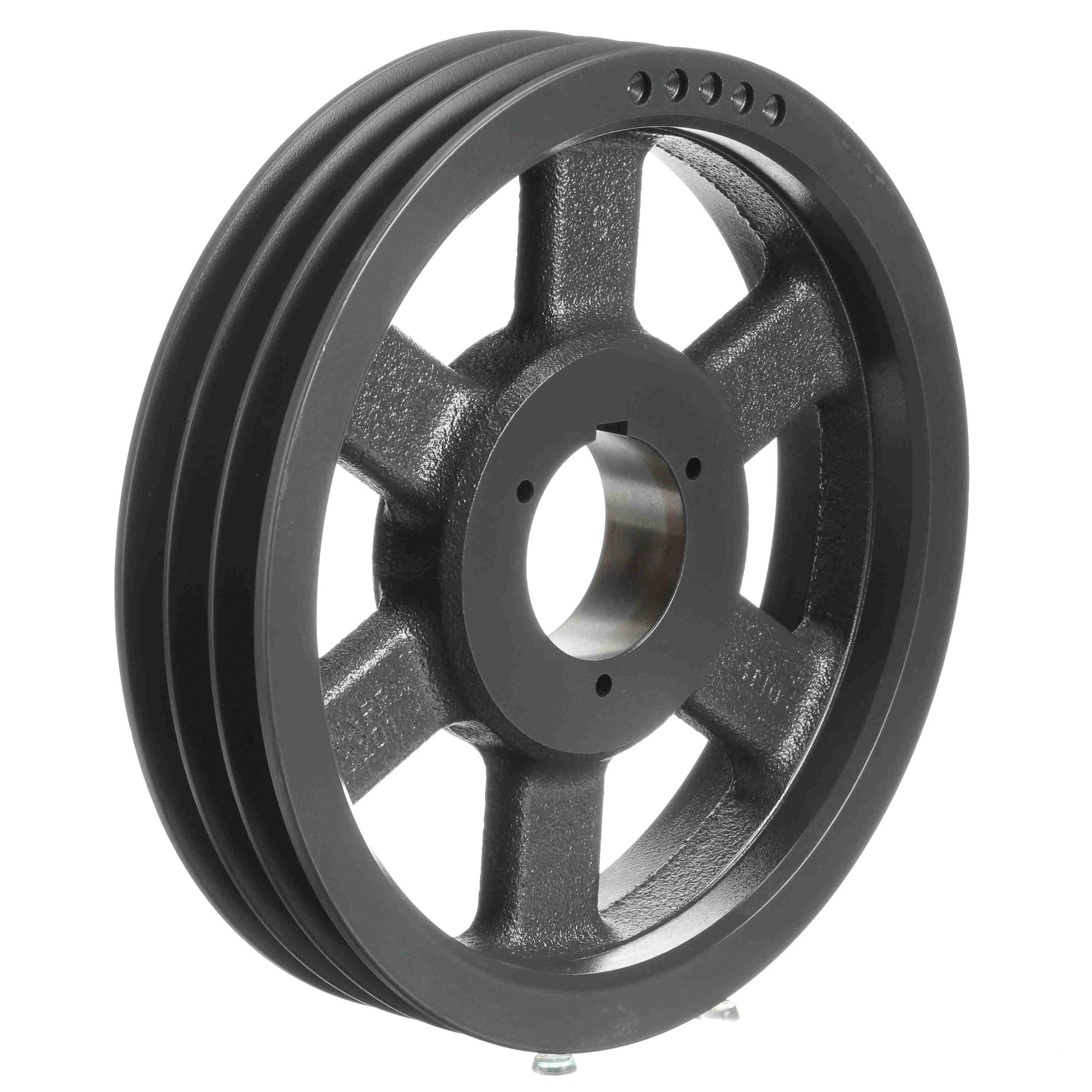

Browning B5V GRIPBELT 3B5V160 V-Belt Sheave, 1/2 to 2-7/16 in Dia Bore, Bushed Bore, 16.28 in OD, 3-Groove

Browning® B5V® Gripbelt® 3B5V160 V-Belt Sheave, 1/2 to 2-7/16 in Dia Bore, Bushed Bore, 16.28 in OD, 3 -Groove

Browning® B5V® Gripbelt® 3B5V160 V-Belt Sheave, 1/2 to 2-7/16 in Dia Bore, Bushed Bore, 16.28 in OD, 3 -Groove 3B5V160

Browning® B5V® Gripbelt® V-Belt Sheave, Bushed Bore, 1/2 to 2-7/16 in Bore Diameter, 16.28 in OD, 16.3 in Pitch Diameter, 3 Number of Grooves, 2.44 in Face Width, Split Taper Bushing Type, 2-27/32 in Overall Length, Iron, For Use With: A, B and 5V Cross Section Belts

Bore Diameter      :      1/2 to 2-7/16 in
Bore Type      :      Bushed
Bushing Type      :      Split Taper
Face Width      :      2.44 in
Material      :      Iron
Number of Grooves      :      3
Outside Diameter      :      16.28 in
Overall Length      :      2-27/32 in
Pitch Diameter      :      16.3 in
Suitable For Use With      :      A, B and 5V Cross Section Belts
  • Combination groove, all Browning® B5V Sheaves permit the running of A, 4L, B, 5L and 5V Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers
  • Broad horsepower coverage, the B5V is available in 1 through 6 grooves allowing it to cover from 5 to 125 hp drives
  • Incorporates Browning® split taper bushing, the only bushing system that provides a true Key-to-Key drive to both the shaft and the hub
  • New casting design, the B5V castings were developed using CAD and finite elements analysis to determine where to add and eliminate material
