Browning® 1028422 1028422

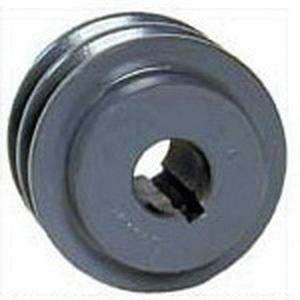

Browning BK 1028422 Sheave, Finished with Keyway Bore, 1 in Dia Bore, 7/8 in W Face

Browning® BK Series 1028422 Sheave, Finished with Keyway Bore, 1 in Dia Bore, 7/8 in W Face, 4 in Dia Pitch

Browning® BK Series 1028422 Sheave, Finished with Keyway Bore, 1 in Dia Bore, 7/8 in W Face, 4 in Dia Pitch 1028422

Browning® Sheave, Series: BK Series, Finished with Keyway Bore, 1 in Bore Diameter, A, B Belt Section Size, 1 Number of Grooves, 4 in Pitch Diameter, 1-15/32 in Length Through Bore, 7/8 in Face Width, 1/4 x 1/8 in Keyway Size, Iron, 4-3/4 in OD x 1-15/32 in L

Belt Section Size      :      A, B
Bore Diameter      :      1 in
Bore Type      :      Finished with Keyway
Dimensions      :      4-3/4 in OD x 1-15/32 in L
Face Width      :      7/8 in
Keyway Size      :      1/4 x 1/8 in
Length Through Bore      :      1-15/32 in
Material      :      Iron
Number of Grooves      :      1
Pitch Diameter      :      4 in
Series      :      BK Series
  • Largest selection of finished bore sheaves of any other manufacturer-Browning offers finished bore sheaves in both A and B combination (A/B) Configuration. 1, 2 and 3 grooves are available to meet any fractional horsepower requirement
  • Combination groove-all Browning BK sheaves permit the running of A, 4L, B and 5L belts to be run in them, thus providing a variety of different pitch diameters and horsepowers
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Browning_1045517_Catalog.pdf
  • pdfFull Engineering Drawing https://assets.unilogcorp.com/267/ITEM/DOC/Browning_1029164_Full_Engineering_Drawing.pdf
