Browning® BK77H BK77H

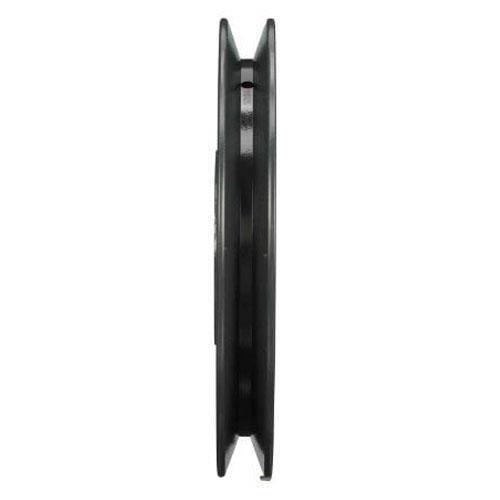

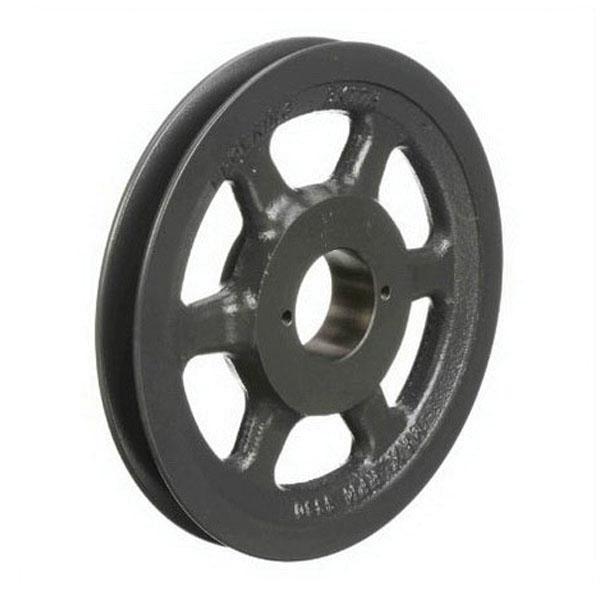

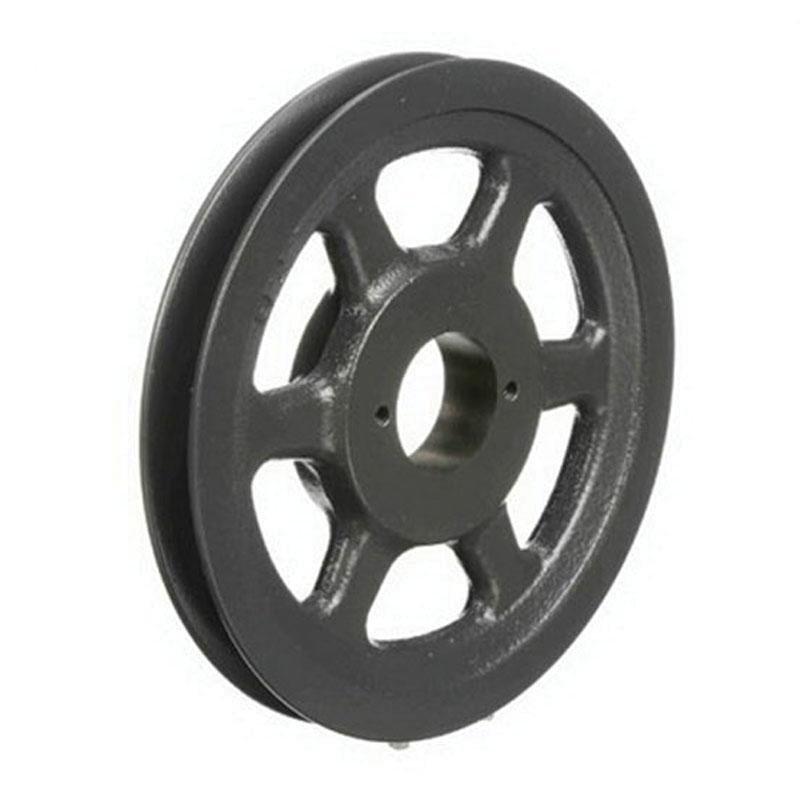

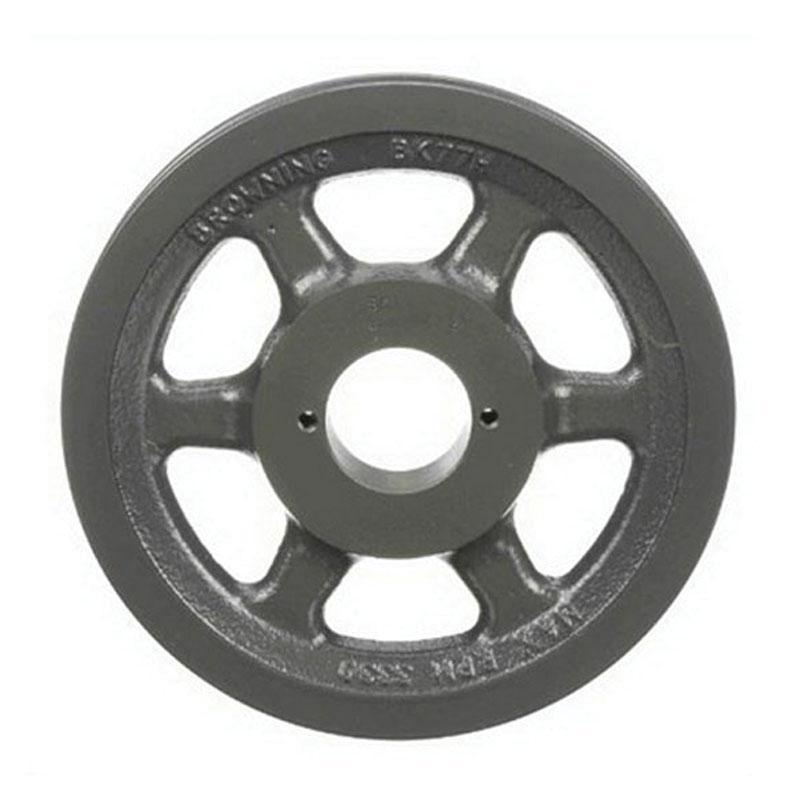

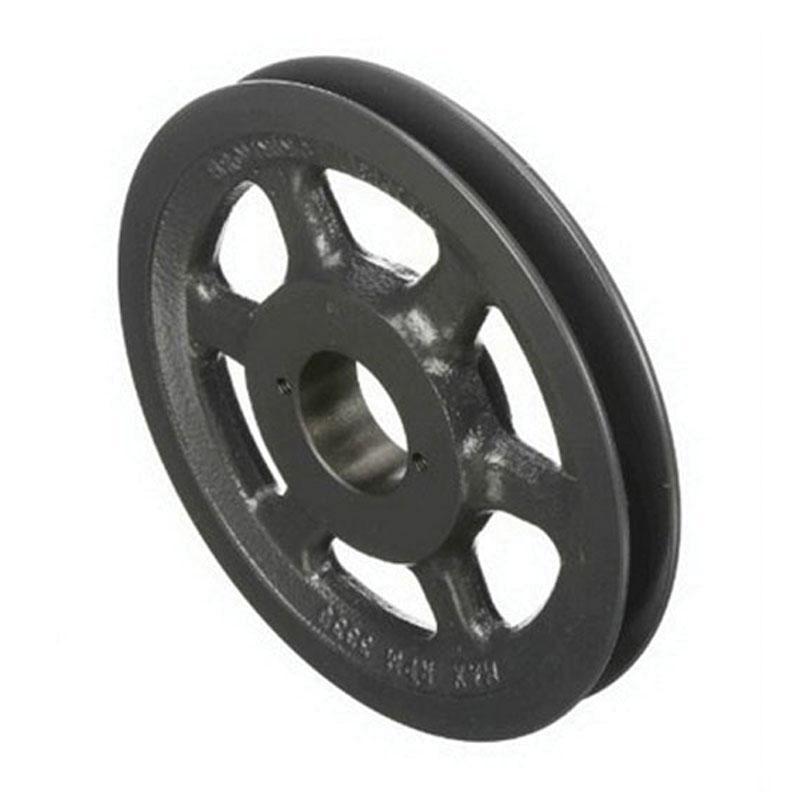

Browning BK77H FHP Sheave, Split Taper Bushed Bore, 3/8 in Dia Bore, 7/8 in W Face, 6.9 in (A), 7.4 in (B) Dia Pitch

Browning® BK77H FHP Sheave, Split Taper Bushed Bore, 3/8 in Dia Bore, 7/8 in W Face, 6.9 in Dia Pitch

Browning® BK77H FHP Sheave, Split Taper Bushed Bore, 3/8 in Dia Bore, 7/8 in W Face, 6.9 in Dia Pitch BK77H

Browning® FHP Sheave, Model: BKH_Sheave_Master, Split Taper Bushed Bore, 3/8 in Bore Diameter, 4L, 5L, A, B Belt Section Size, H Bushing Style, 1 Number of Grooves, 6.9 in Pitch Diameter, 7/8 in Face Width, Iron, 1-9/16 in L x 1-9/16 in W

Belt Section Size      :      4L, 5L, A, B
Bore Diameter      :      3/8 in
Bore Type      :      Split Taper Bushed
Bushing Style      :      H
Dimensions      :      1-9/16 in L x 1-9/16 in W
Face Width      :      7/8 in
Material      :      Iron
Model      :      BKH_Sheave_Master
Number of Grooves      :      1
Pitch Diameter      :      6.9 in
  • Largest selection of H bushed sheaves of any other manufacturer, Browning offers bushed sheaves in both A and B combination (A/B) configuration
  • Sheaves are statically balanced, all sheaves are statically balanced to assure smooth, vibration-free performance
  • Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
  • All Browning BK H sheaves permit the running of A, 4L, B and 5L belts to be run in them, thus providing a variety of different pitch diameters and horsepower
  • pdfLine Drawing https://assets.unilogcorp.com/267/ITEM/DOC/Browning_BK130H_Line_Drawing.pdf
