Browning® 1042944 1042944

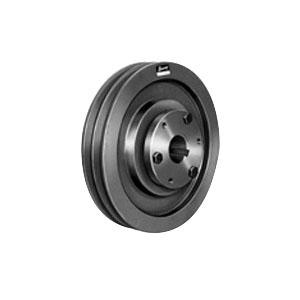

Browning Gripbelt 2AKH 1042944 V-Belt Sheave, Split Taper Bushed Bore, 3/8-1-1/2 in Dia Bore, 1-3/8 in W Face

Browning® Gripbelt® 2AKH Series 1042944 V-Belt Sheave, Split Taper Bushed Bore, 3/8 to 1-1/2 in Dia Bore

Browning® Gripbelt® 2AKH Series 1042944 V-Belt Sheave, Split Taper Bushed Bore, 3/8 to 1-1/2 in Dia Bore 1042944

Browning® Gripbelt® V-Belt Sheave, Series: 2AKH Series, Split Taper Bushed Bore, 3/8 to 1-1/2 in Bore Diameter, 3L, 4L, A Belt Section Size, H Bushing Style, 2 Number of Grooves, 17.66 in Pitch Diameter, 1-9/32 in Length Through Bore, 1-3/8 in Face Width, 1/4 x 1/16 in Keyway Size, Iron, 18-1/4 in OD x 1-1/2 in L

Belt Section Size      :      3L, 4L, A
Bore Diameter      :      3/8 to 1-1/2 in
Bore Type      :      Split Taper Bushed
Bushing Style      :      H
Dimensions      :      18-1/4 in OD x 1-1/2 in L
Face Width      :      1-3/8 in
Keyway Size      :      1/4 x 1/16 in
Length Through Bore      :      1-9/32 in
Material      :      Iron
Number of Grooves      :      2
Pitch Diameter      :      17.66 in
Series      :      2AKH Series
  • Largest selection of H bushed sheaves of any other manufacturer-Browning offers bushed sheaves in both A and B combination (A/B) Configuration, 1, 2 and 3-grooves are available to meet any fractional horsepower requirement
  • Sheaves are statically balanced-all sheaves are statically balanced to assure smooth, vibration free performance
  • Close grain cast iron-allows Browning to machine our sheaves to the closest tolerances possible
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Browning_1042944_Catalog.pdf
  • pdfFull Engineering Drawing https://assets.unilogcorp.com/267/ITEM/DOC/Browning_1042944_Full_Engineering_Drawing.pdf
