Browning® 1042969 1042969

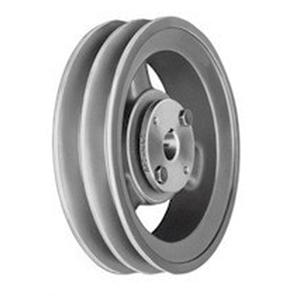

Browning Gripbelt 2BK 1042969 Sheave, Bushed Bore, 3/8-1-1/2 in Dia Bore, 1-3/4 in W Face

Browning® Gripbelt® 2BK Series 1042969 Sheave, Bushed Bore, 3/8 to 1-1/2 in Dia Bore, 1-3/4 in W Face, 2.8 in Dia Pitch

Browning® Gripbelt® 2BK Series 1042969 Sheave, Bushed Bore, 3/8 to 1-1/2 in Dia Bore, 1-3/4 in W Face, 2.8 in Dia Pitch 1042969

Browning® Gripbelt® Sheave, Series: 2BK Series, Bushed Bore, 3/8 to 1-1/2 in Bore Diameter, 4L, 5L, A, B Belt Section Size, 2 Number of Grooves, 2.8 in Pitch Diameter, 1-9/32 in Length Through Bore, 1-3/4 in Face Width, Iron, 3-3/4 in OD x 2-13/16 in L

Belt Section Size      :      4L, 5L, A, B
Bore Diameter      :      3/8 to 1-1/2 in
Bore Type      :      Bushed
Dimensions      :      3-3/4 in OD x 2-13/16 in L
Face Width      :      1-3/4 in
Length Through Bore      :      1-9/32 in
Material      :      Iron
Number of Grooves      :      2
Pitch Diameter      :      2.8 in
Series      :      2BK Series
  • Largest selection of finished bore sheaves of any other manufacturer-Browning offers finished bore sheaves in both A and B combination (A/B) Configuration. 1, 2 and 3 grooves are available to meet any fractional horsepower requirement
  • Combination groove-all Browning BK sheaves permit the running of A, 4L, B and 5L belts to be run in them, thus providing a variety of different pitch diameters and horsepowers
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Browning_1045517_Catalog.pdf
  • pdfFull Engineering Drawing https://assets.unilogcorp.com/267/ITEM/DOC/Browning_1042951_Full_Engineering_Drawing.pdf
