Browning® 2TB124 2TB124

Browning GRIPBELT 2TB124 Multiple Sheave With Split Taper Bushings, 3/4 in Dia Bore, Split Taper Bushed Bore

Browning® Gripbelt® 2TB124 Multiple Sheave With Split Taper® Bushings, 3/4 in Dia Bore, Split Taper Bushed Bore

Browning® Gripbelt® 2TB124 Multiple Sheave With Split Taper® Bushings, 3/4 in Dia Bore, Split Taper Bushed Bore 2TB124

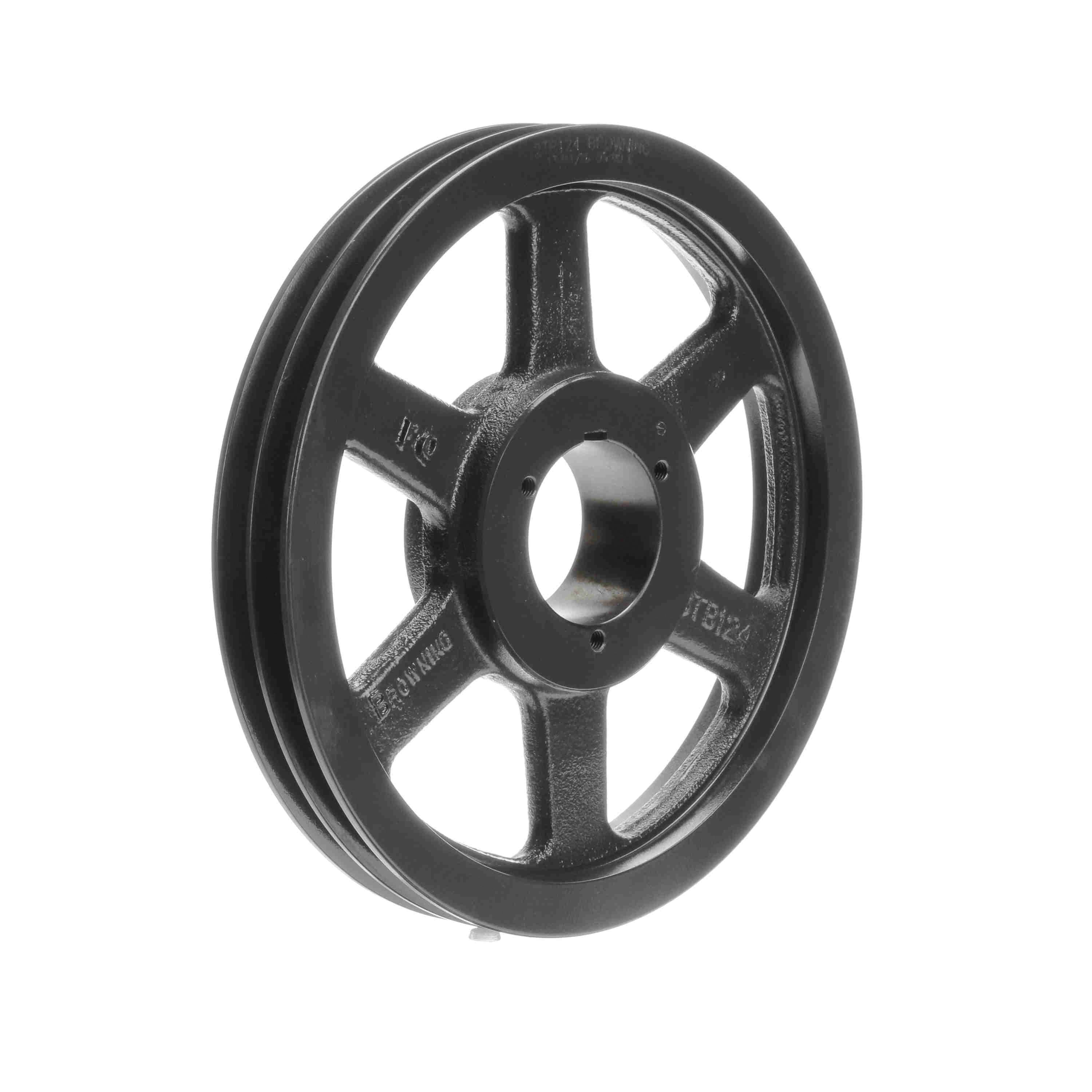

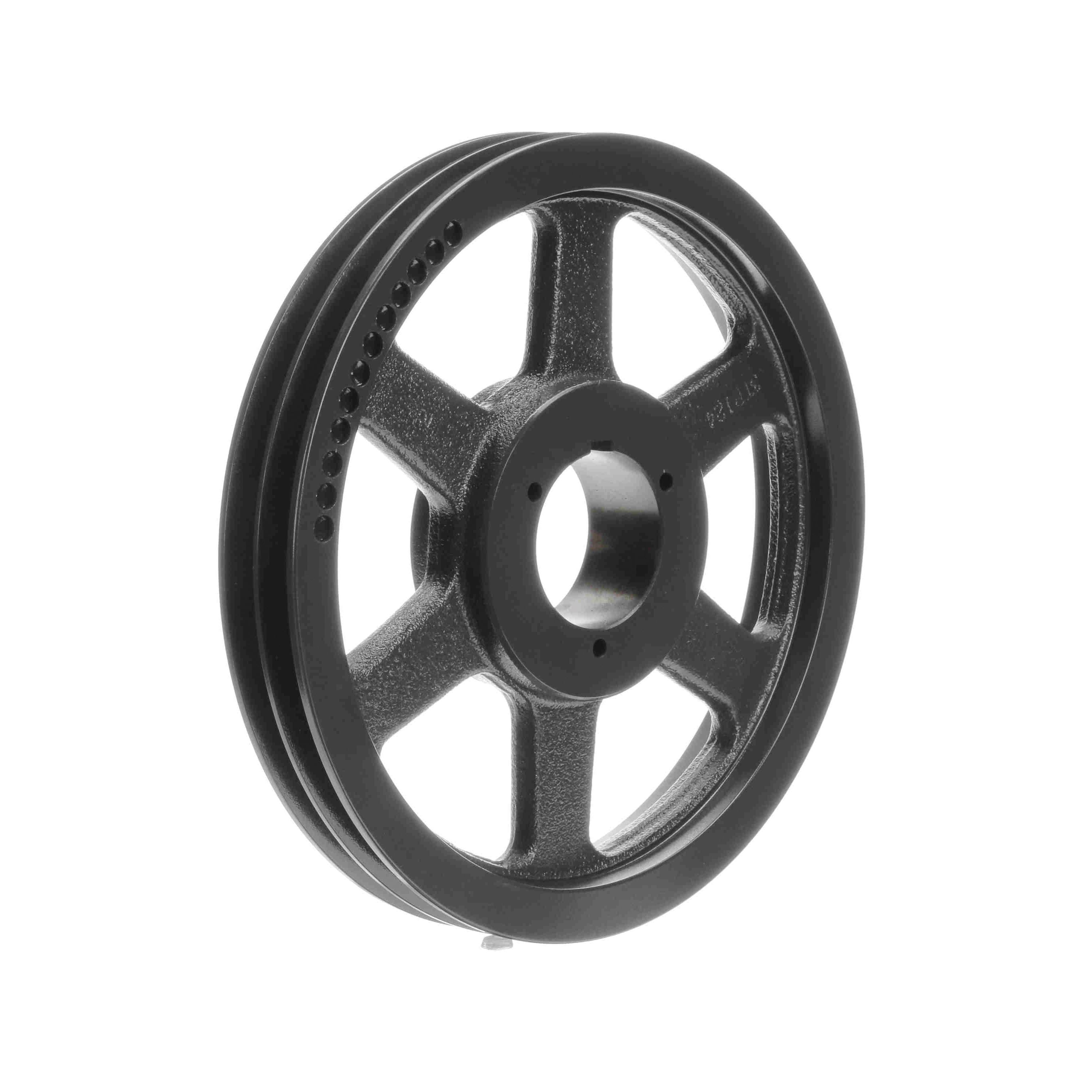

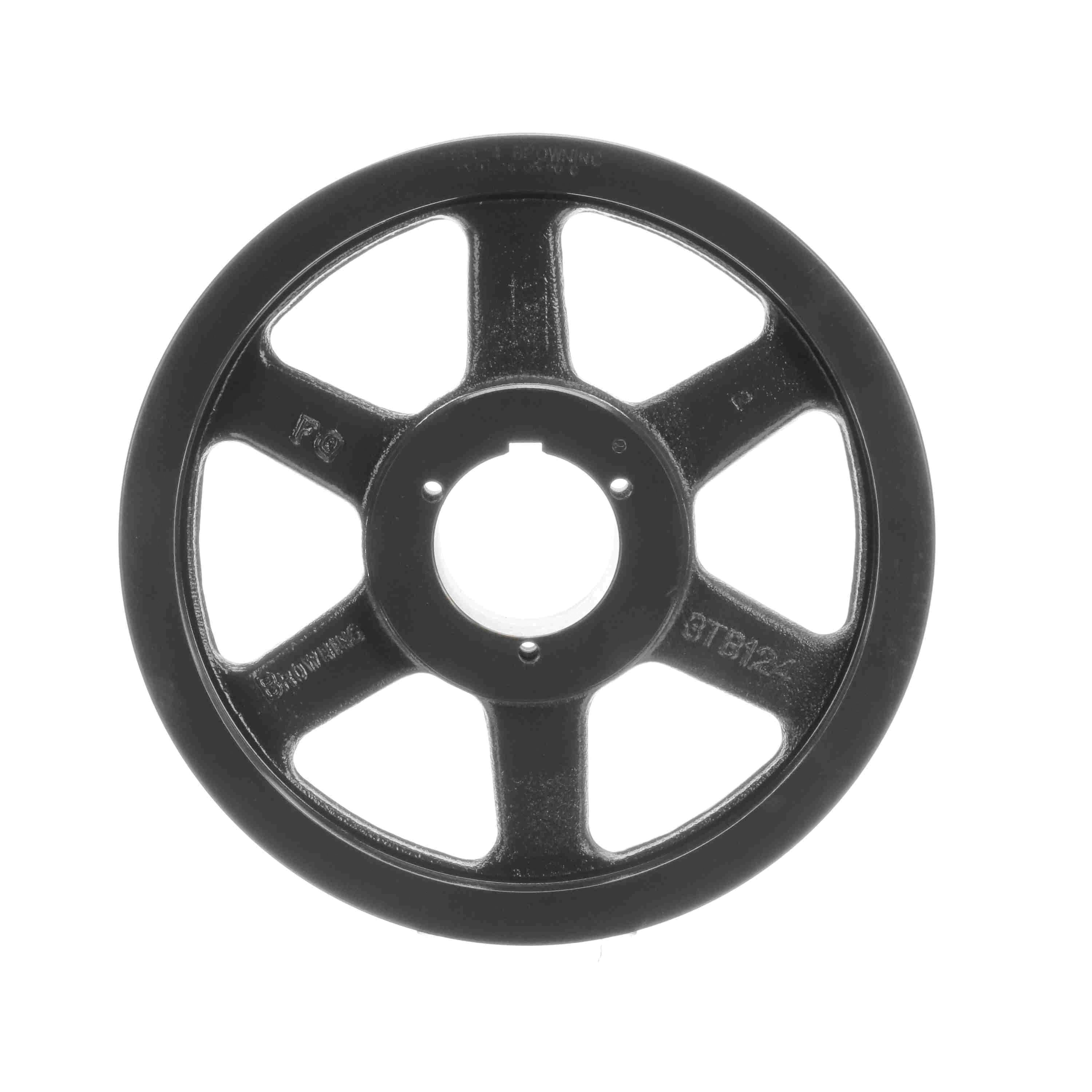

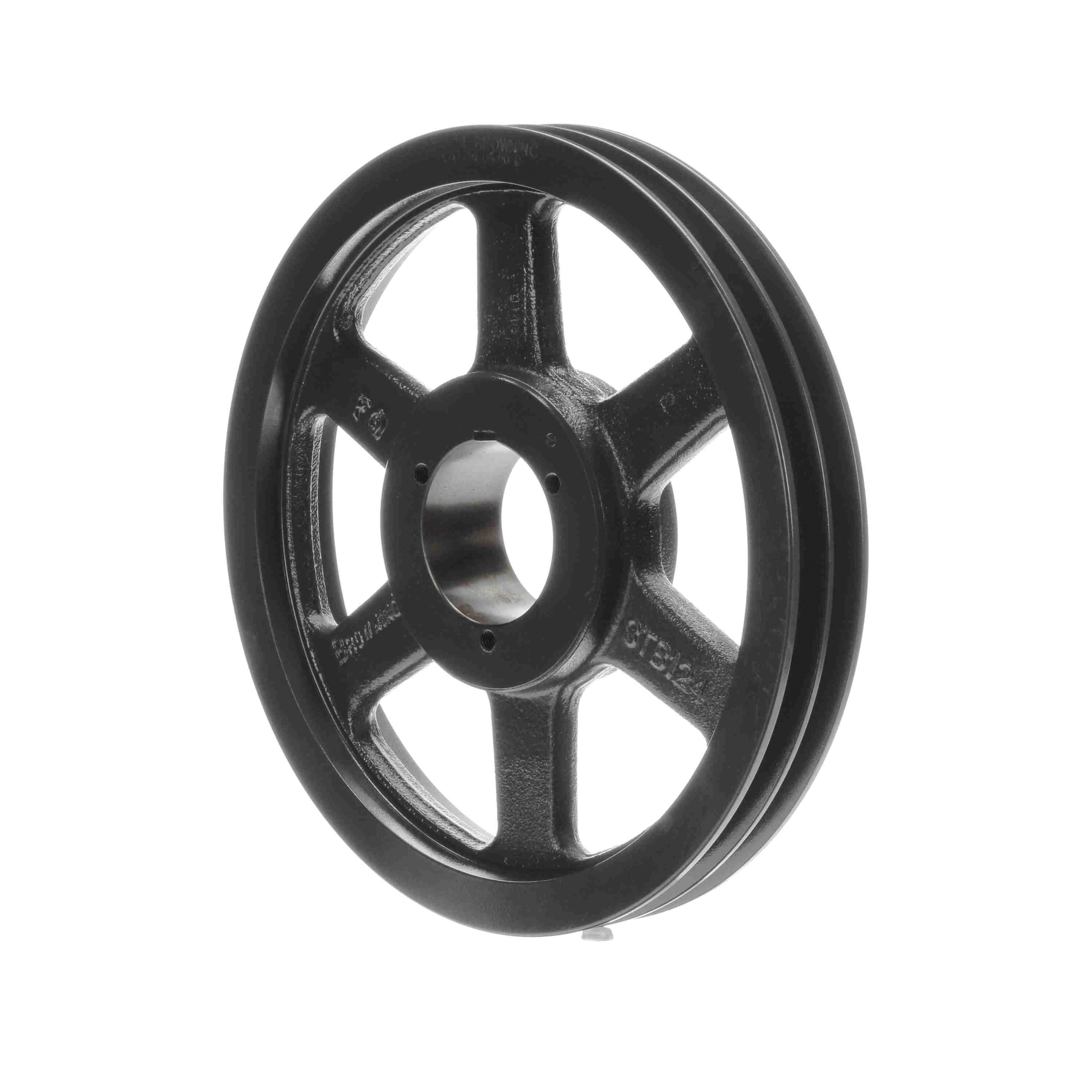

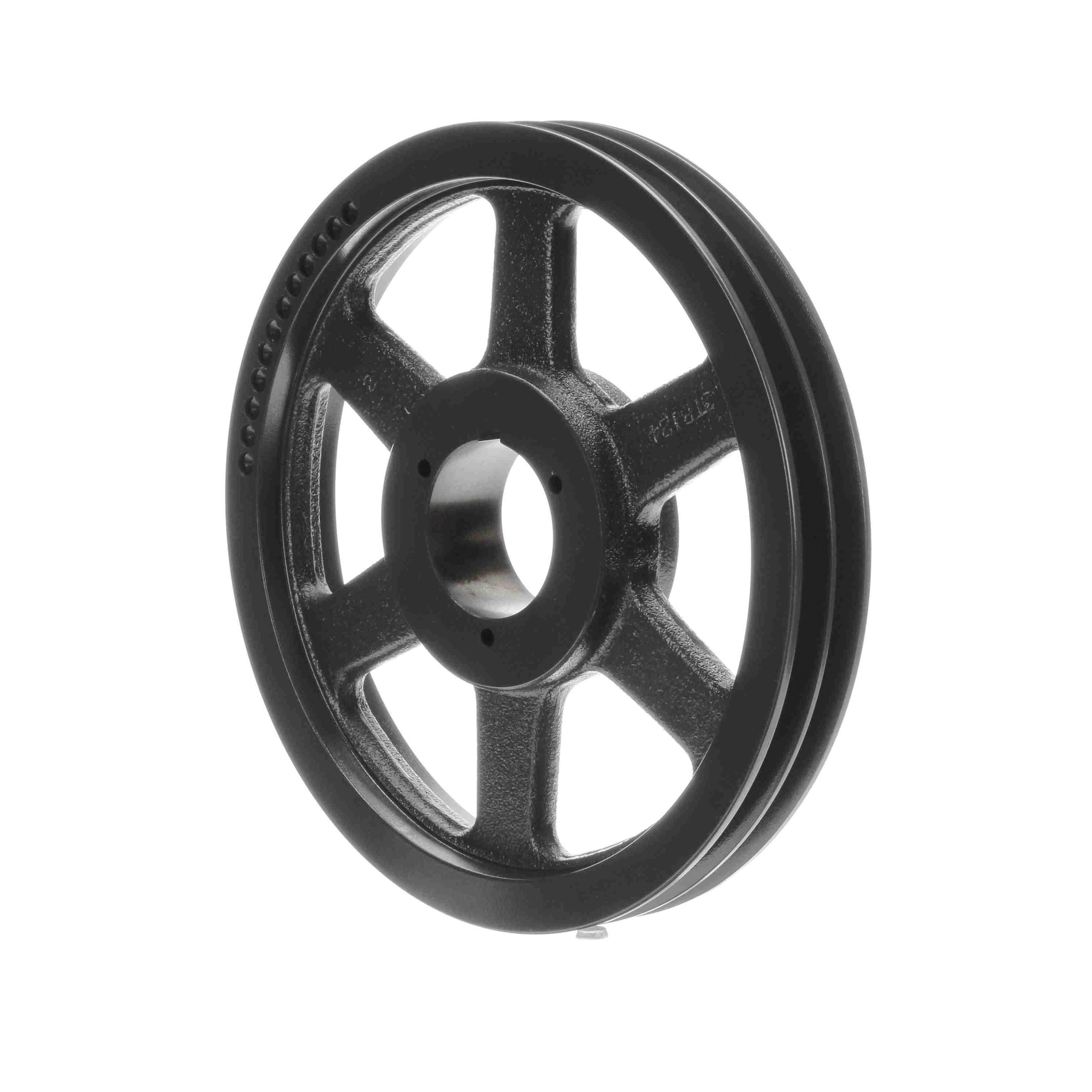

Browning® Gripbelt® Multiple Sheave, Split Taper Bushed Bore, 3/4 in Bore Diameter, 12.68 in OD, 12.2 in Pitch Diameter, 2 Number of Grooves, 1-3/4 in Face Width, Q1 Bushing Type, 2-25/32 in Overall Length, Iron, For Use With: A and B Section Belts

Bore Diameter      :      3/4 in
Bore Type      :      Split Taper Bushed
Bushing Type      :      Q1
Face Width      :      1-3/4 in
Material      :      Iron
Number of Grooves      :      2
Outside Diameter      :      12.68 in
Overall Length      :      2-25/32 in
Pitch Diameter      :      12.2 in
Suitable For Use With      :      A and B Section Belts
  • Incorporates Browning® Split Taper® bushing- the only bushing system that provides a true key to key drive to both the shaft and the hub
  • Combination groove all Browning® B sheaves permit the running of A and B belts to be run in them, thus providing a variety of different pitch diameters and horsepower's
  • Close grain cast iron allows Browning® to machine our sheaves to the closest tolerances possible
  • Machined from fine grain cast iron
  • Precision balanced
  • Easy on, easy off
