Browning® 1090331 1090331

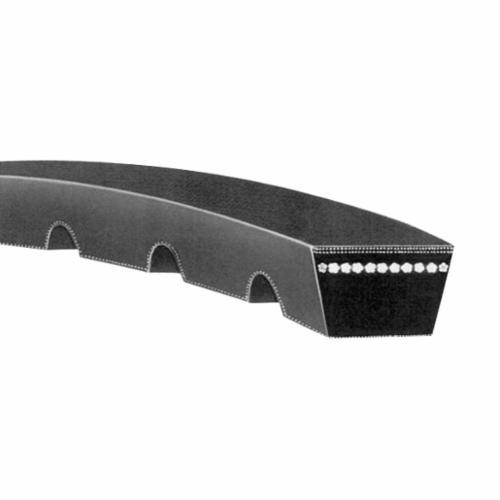

Browning Gripnotch 1090331 V-Belt, CX Section, 116.2 in L Outside, 7/8 in W Top, 17/32 in Thick

Browning® Gripnotch® 1090331 V-Belt, CX Section, 116.2 in L Outside, 7/8 in W Top, 17/32 in Thick, Neoprene/Nylon

Browning® Gripnotch® 1090331 V-Belt, CX Section, 116.2 in L Outside, 7/8 in W Top, 17/32 in Thick, Neoprene/Nylon 1090331

Browning® Gripnotch® V-Belt, CX Section, 116.2 in Outside Length, 7/8 in Top Width, 17/32 in Thickness, 114.9 in Pitch Length, 1 Ribs, Cogged, Raw Edge Construction, Resists: Heat, Oil, Neoprene/Nylon, 230 deg F

Construction      :      Cogged, Raw Edge
Material      :      Neoprene/Nylon
Number of Ribs      :      1
Outside Length      :      116.2 in
Pitch Length      :      114.9 in
Resists      :      Heat, Oil
Section Size      :      CX
Temperature Rating      :      230 deg F
Thickness      :      17/32 in
Top Width      :      7/8 in
  • Precision molded cogs-provide more surface area for heat dissipation and increase belt flexibility, cooler running means longer life, browning notched belts assure longer life when replacing existing wrapped v-belts
  • Close belt tolerance-browning belts offer the "code 1" match belt system on all classical and 358 belts, allowing easy selection of just one match number for each belt size, this ensures tighter than RMA standards
  • High tensile cord-specially treated cords to provide strength and additional flex life while providing resistance to elongation for the belt
  • More horsepower in less space
  • Notches are molded extra deep
  • Static conductivity
  • Raw-edge sidewalls-improved gripping contract with pulley sidewalls, assures less vibration and smoother, quieter performance, notched belts provide higher horsepower than wrapped belts
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Browning_1090331_Catalog.pdf
