Browning® BX136 BX136

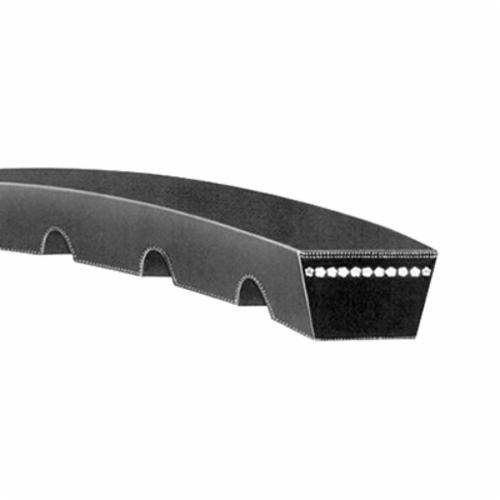

Browning Gripnotch BX136 V-Belt, BX Section, 139 in L Outside, 0.656 in W Top, 7/16 in Thick, EPDM

Browning® Gripnotch® BX136 V-Belt, BX Section, 139 in L Outside, 0.656 in W Top, 7/16 in Thick, EPDM

Browning® Gripnotch® BX136 V-Belt, BX Section, 139 in L Outside, 0.656 in W Top, 7/16 in Thick, EPDM BX136

Browning® Gripnotch® V-Belt, BX Section, 139 in Outside Length, 0.656 in Top Width, 7/16 in Thickness, 137.8 in Pitch Length, 1 Ribs, Cogged, Raw Edge Construction, Resists: Heat, Oil, EPDM, -60 to 250 deg F

Construction      :      Cogged, Raw Edge
Material      :      EPDM
Number of Ribs      :      1
Outside Length      :      139 in
Pitch Length      :      137.8 in
Resists      :      Heat, Oil
Section Size      :      BX
Temperature Rating      :      -60 to 250 deg F
Thickness      :      7/16 in
Top Width      :      0.656 in
  • Ground form-reduced vibration increases belt and bearing life
  • Fabric top and bottom-increases rigidity and stability, reduces stress on the cord line and increases belt life
  • Wider notch spacing-increases rigidity and stability, reduces stress on the cord line and increases belt life
  • More horsepower in less space
  • Notches are molded extra deep
  • Static conducting
  • Precision molded raw edge construction
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Browning_BX136_Catalog.pdf
