Browning® H-1-7/16 H-1-7/16

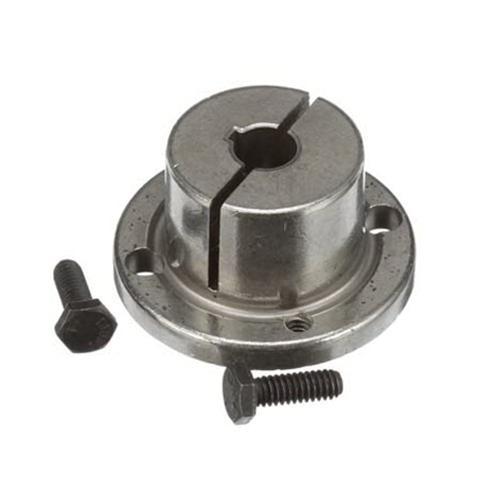

Browning H-1-7/16 Split Taper Bushing, 1-7/16 in Dia Bore, 1-5/8 in Dia Barrel, Sintered Steel

Browning® H-1-7/16 Split Tapered Bushing, 1-7/16 in Dia Bore, 1-5/8 in Dia Barrel, Steel

Browning® H-1-7/16 Split Tapered Bushing, 1-7/16 in Dia Bore, 1-5/8 in Dia Barrel, Steel H-1-7/16

Browning® Split Tapered Bushing, Finished with Keyway Bore, 1-7/16 in Bore Diameter, 2-1/2 in Flange OD, 1-5/8 in Barrel Diameter, 3/8 x 3/16 in Keyway Size, Solid Flange Type, 1/4 in Flange Thickness, 2 Number of Cap Screws, 1/4 x 3/4 in Cap Screw Size, 95 lb Torque, Steel

Barrel Diameter      :      1-5/8 in
Bore Diameter      :      1-7/16 in
Bore Type      :      Finished with Keyway
Cap Screw Size      :      1/4 x 3/4 in
Flange Thickness      :      1/4 in
Flange Type      :      Solid
Keyway Size      :      3/8 x 3/16 in
Material      :      Steel
Number of Cap Screws      :      2
Outside Diameter      :      2-1/2 in Flange
Torque Rating      :      95 lb
  • Double split barrel ensures true concentricity-grips the shaft with positive clamp fit
  • High torque carrying capacity
  • Solid flange maintains concentric bore and reduces vibration in the drive
  • 1-1/4 in L through bore
  • 2 in Dia bolt circle
  • 1/4 in screw thread size
  • Keyed to both shaft and hub, external key provides positive drive with no torque on the cap screws
