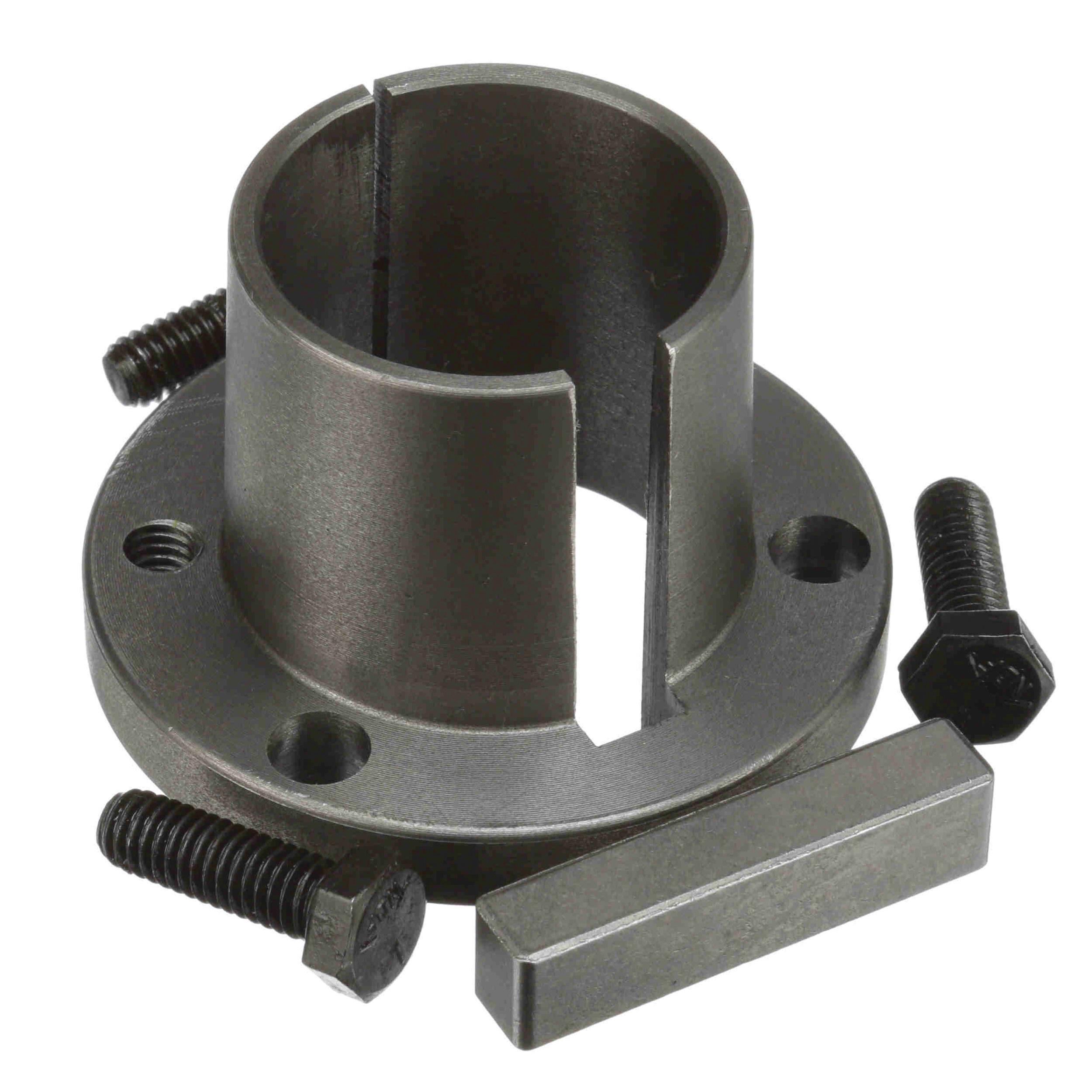

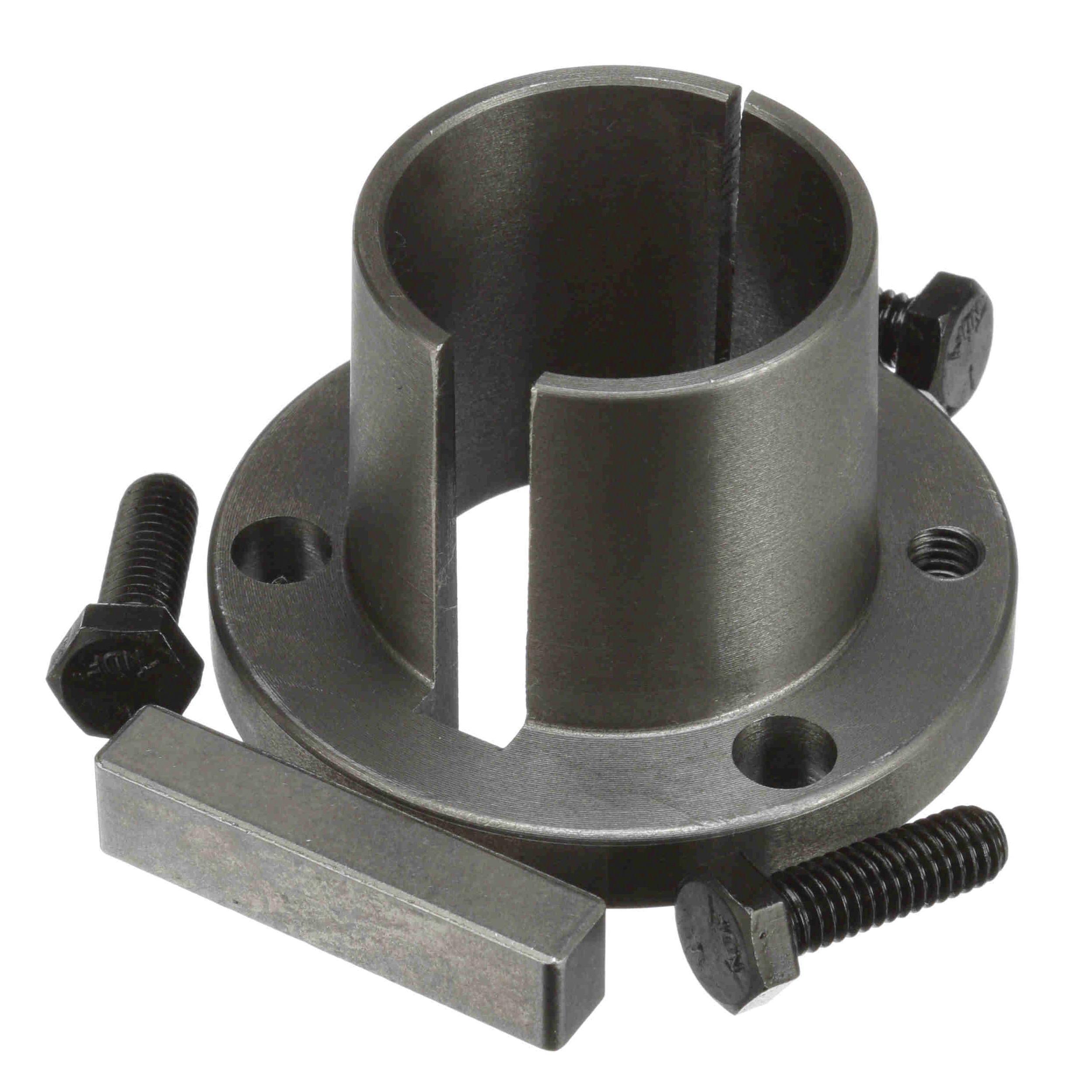

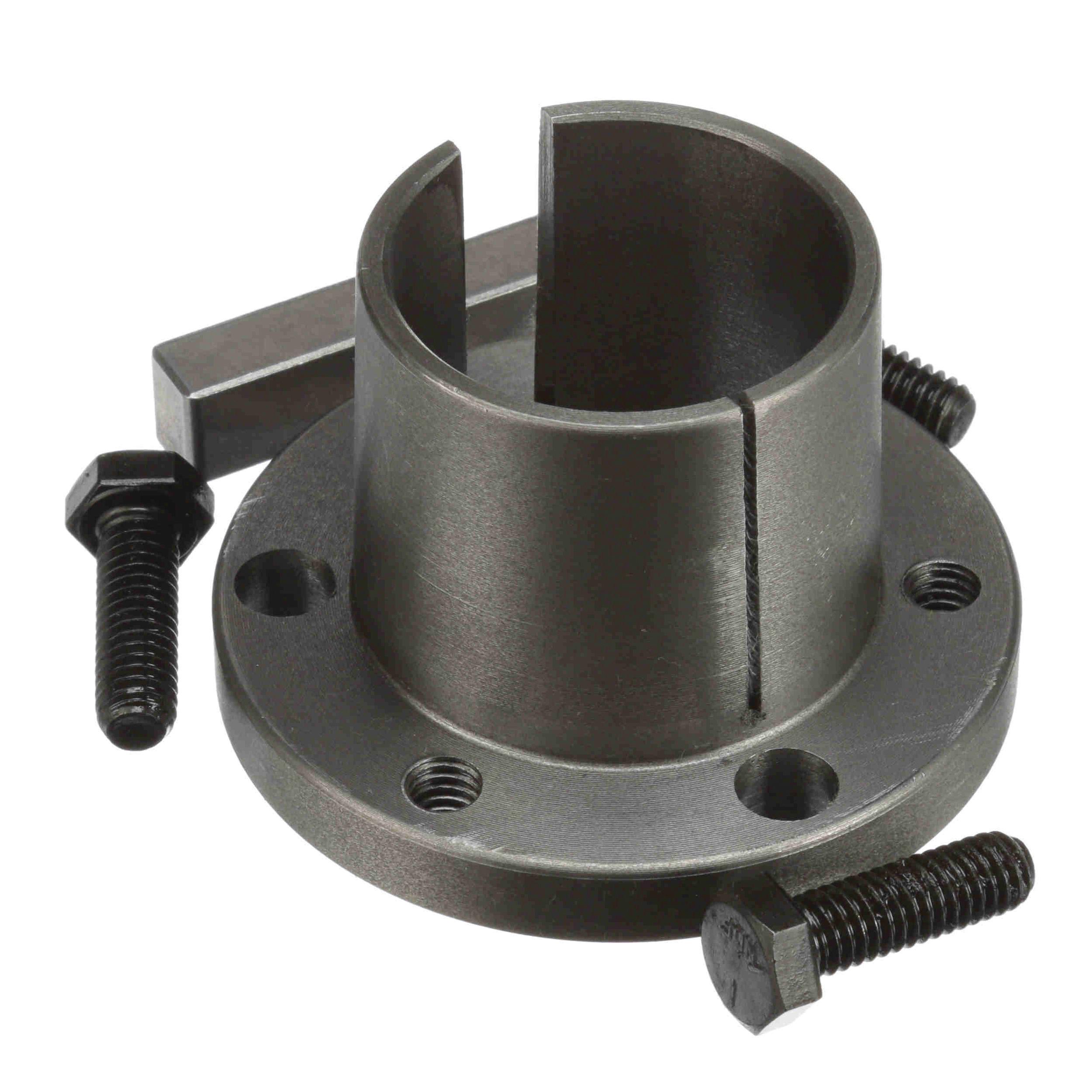

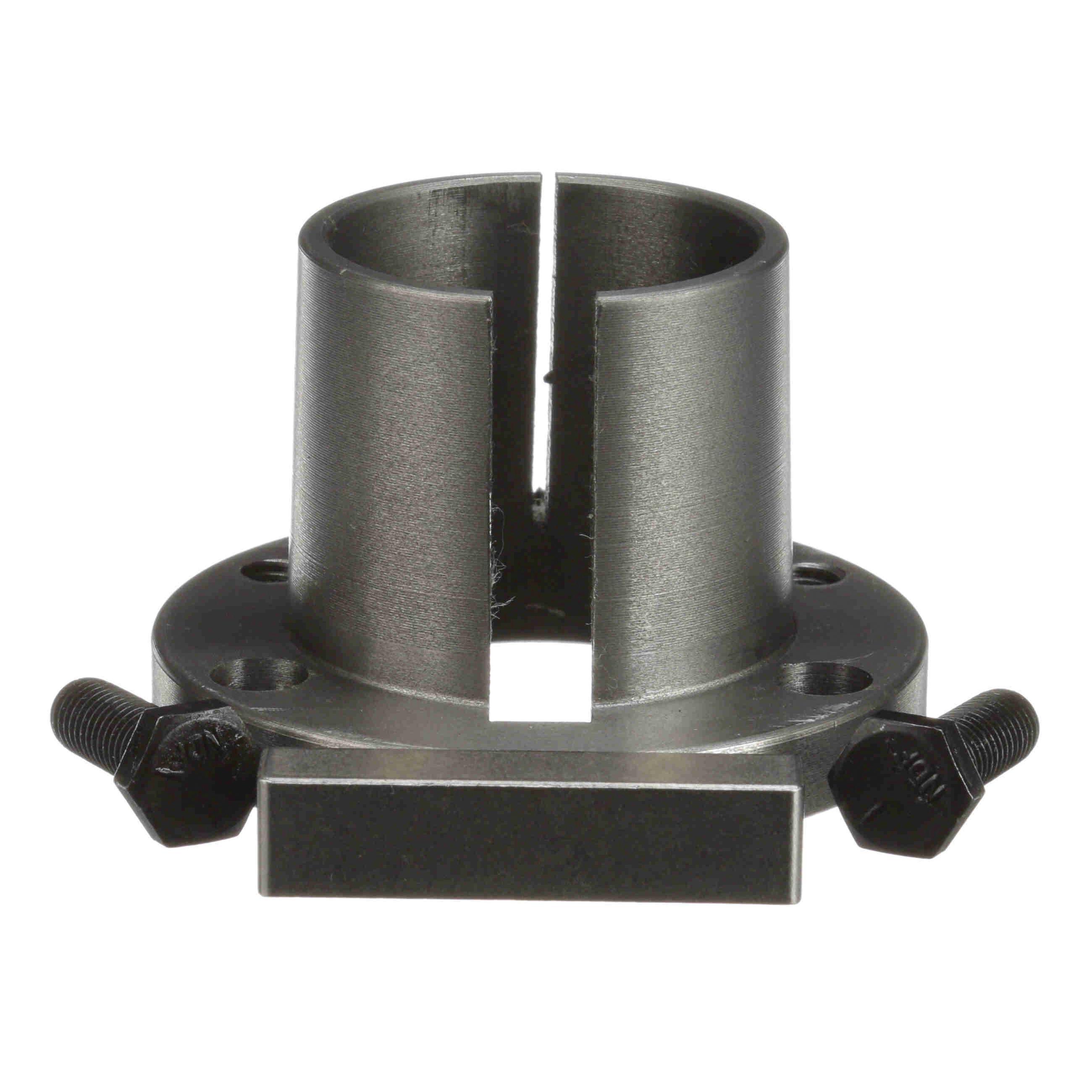

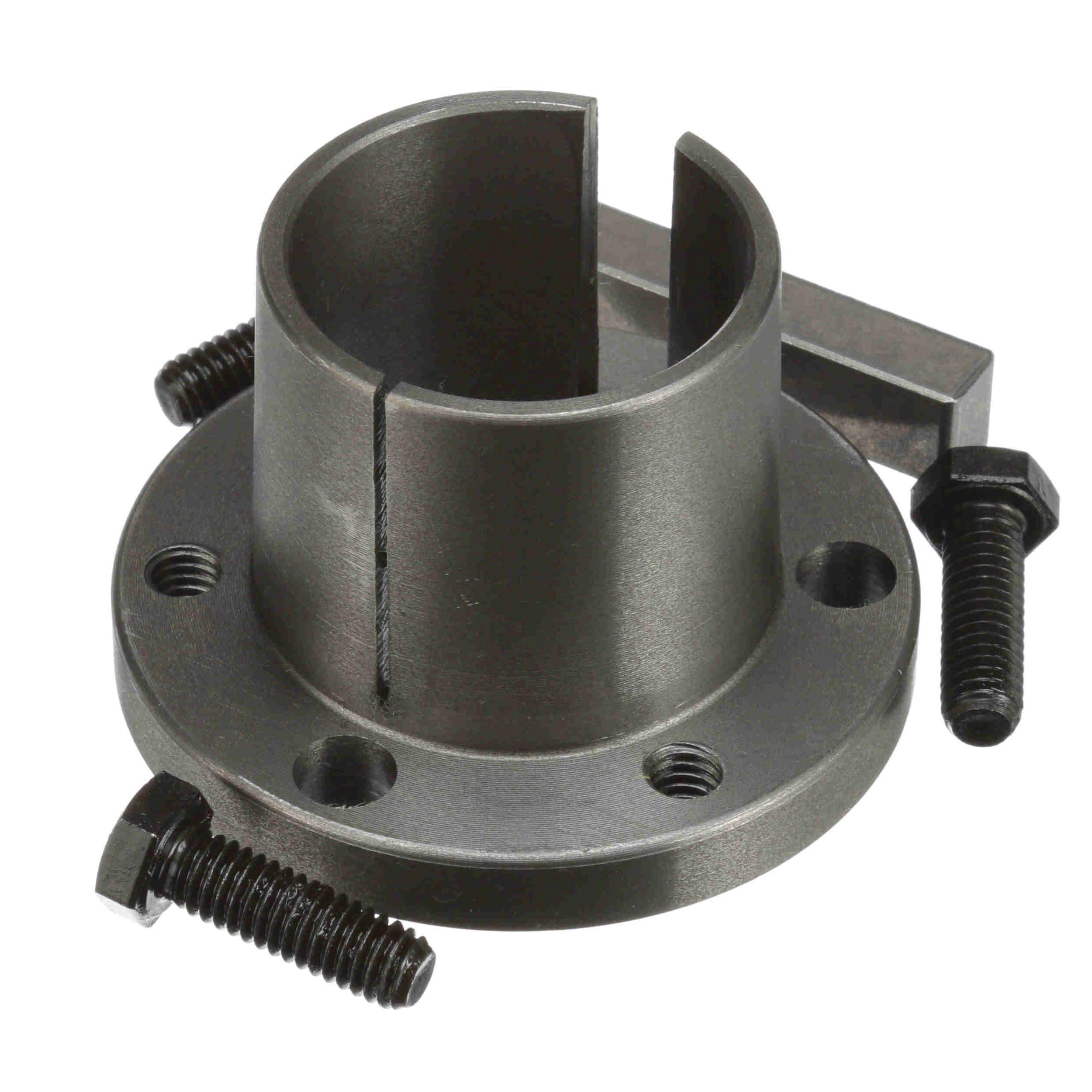

Browning P1 1 5/8 Type P1 Split Taper Bushing, 1-5/8 in Dia Bore, 1.856 in, 1.938 in Dia Barrel, 3 in Dia Flange
Browning® P1 1 5/8 Type P1 Split Tapered Bushing, 1-5/8 in Dia Bore, 1.856 in, 1.938 in Dia Barrel, 3 in Dia Flange
Browning® P1 1 5/8 Type P1 Split Tapered Bushing, 1-5/8 in Dia Bore, 1.856 in, 1.938 in Dia Barrel, 3 in Dia Flange P1 1 5/8- Brand Name: Browning®
- Part Number: P1 1 5/8
- UPC: 662289129324
- Check Stock
Add To Favorites ListBrowning® Type P1 Split Tapered Bushing, Bushed Bore, 1-5/8 in Bore Diameter, 3 in OD, 1.856 in, 1.938 in Barrel Diameter, 1-15/16 in Length, 3/8 x 3/16 in Keyway Size, Solid Flange Type, 3 in Flange Diameter, 13/32 in Flange Thickness, 3 Number of Cap Screws, 5/16 x 1 in Cap Screw Size, 3 Bolt Holes, 192 in-lb Torque, Iron/Steel
| Barrel Diameter | : | 1.856 in, 1.938 in |
| Bore Diameter | : | 1-5/8 in |
| Bore Type | : | Bushed |
| Cap Screw Size | : | 5/16 x 1 in |
| Flange Diameter | : | 3 in |
| Flange Thickness | : | 13/32 in |
| Flange Type | : | Solid |
| Keyway Size | : | 3/8 x 3/16 in |
| Length | : | 1-15/16 in |
| Material | : | Iron/Steel |
| Number of Bolt Holes | : | 3 |
| Number of Cap Screws | : | 3 |
| Outside Diameter | : | 3 in |
| Torque Rating | : | 192 in-lb |
- Solid flange and double split barrel, assures better concentricity to the shaft
- Key to key drive, with keys on both the shaft and product to provide the strongest possible drive
- 3/4 in/ft taper on barrel, self locking taper provides the highest degree of mechanical locking product to product
