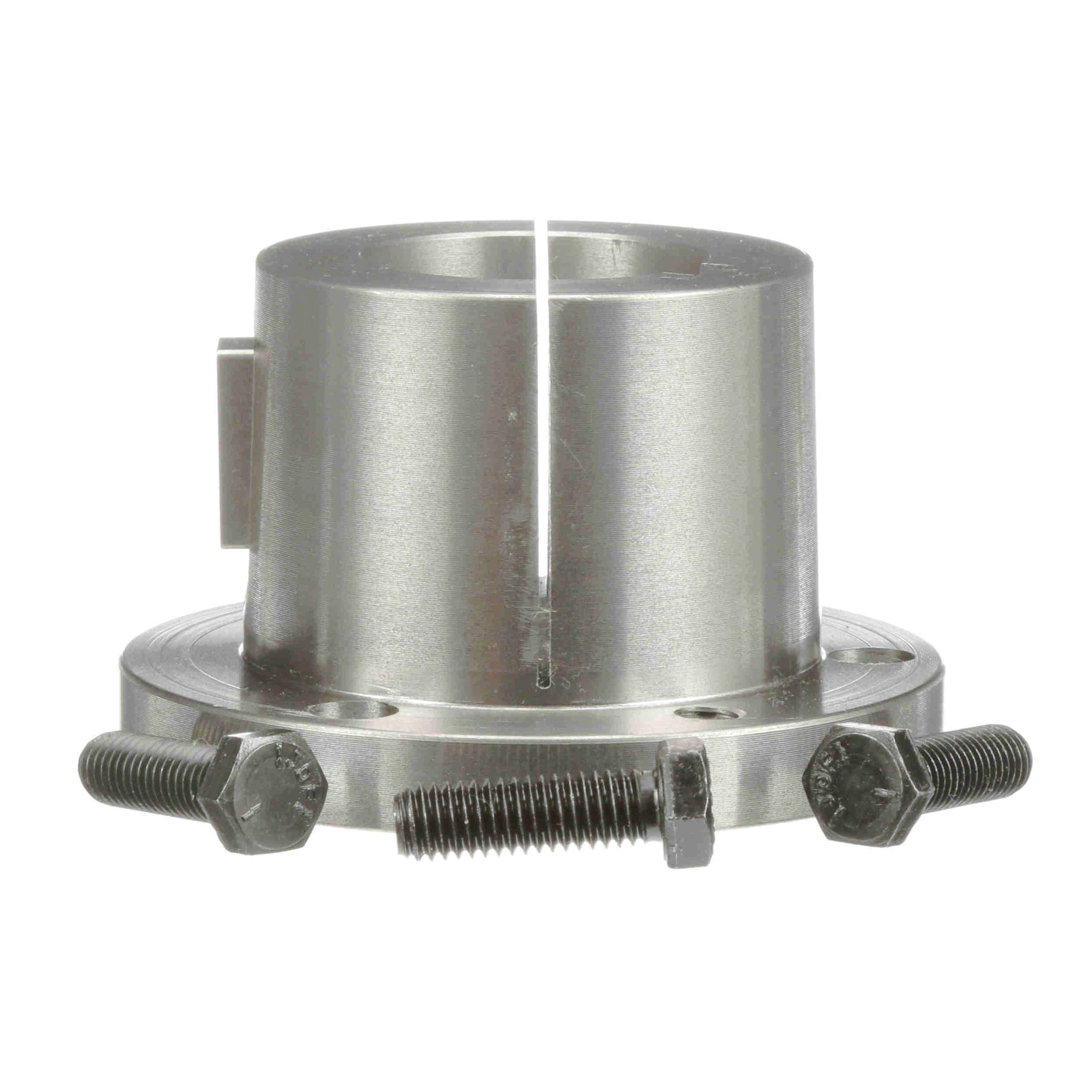

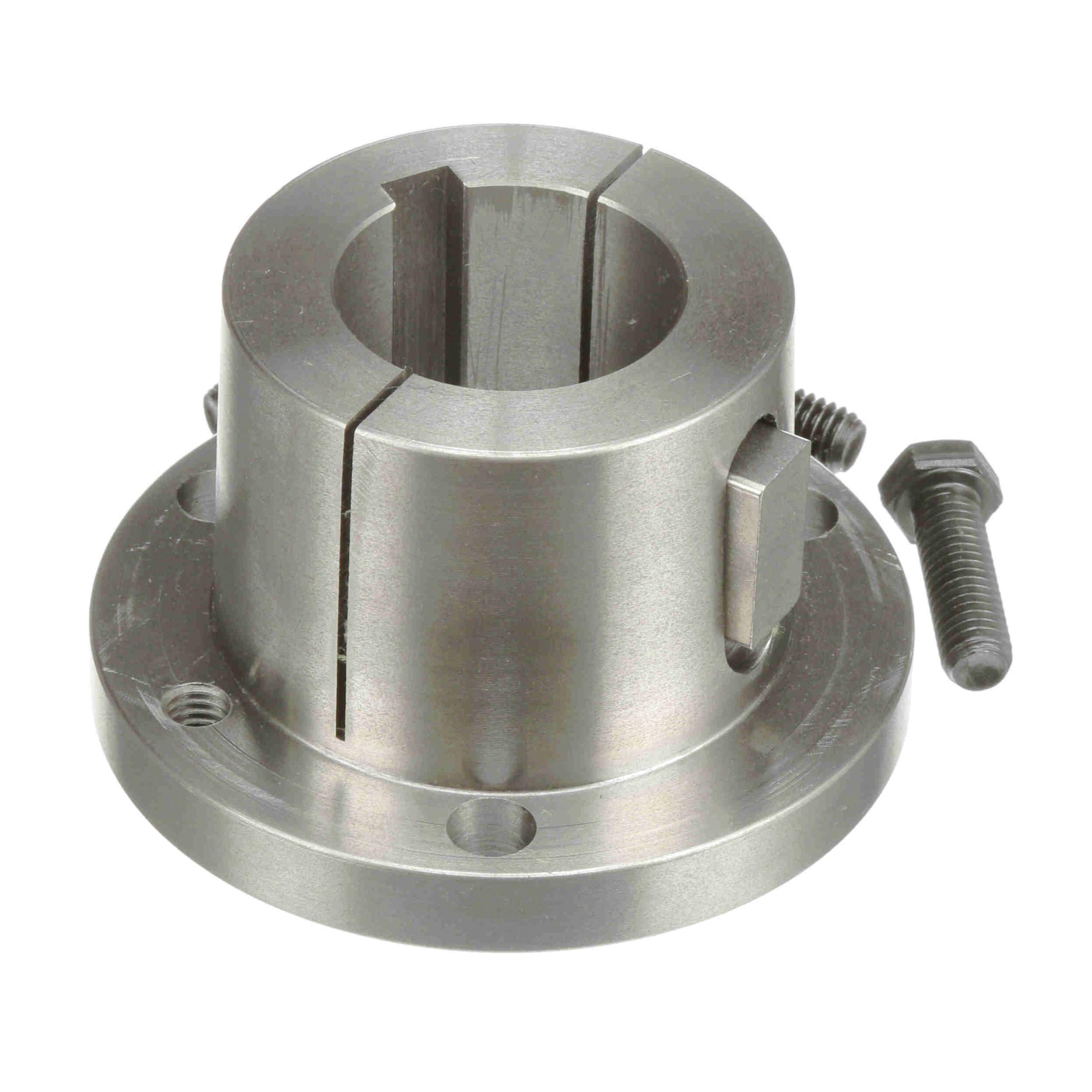

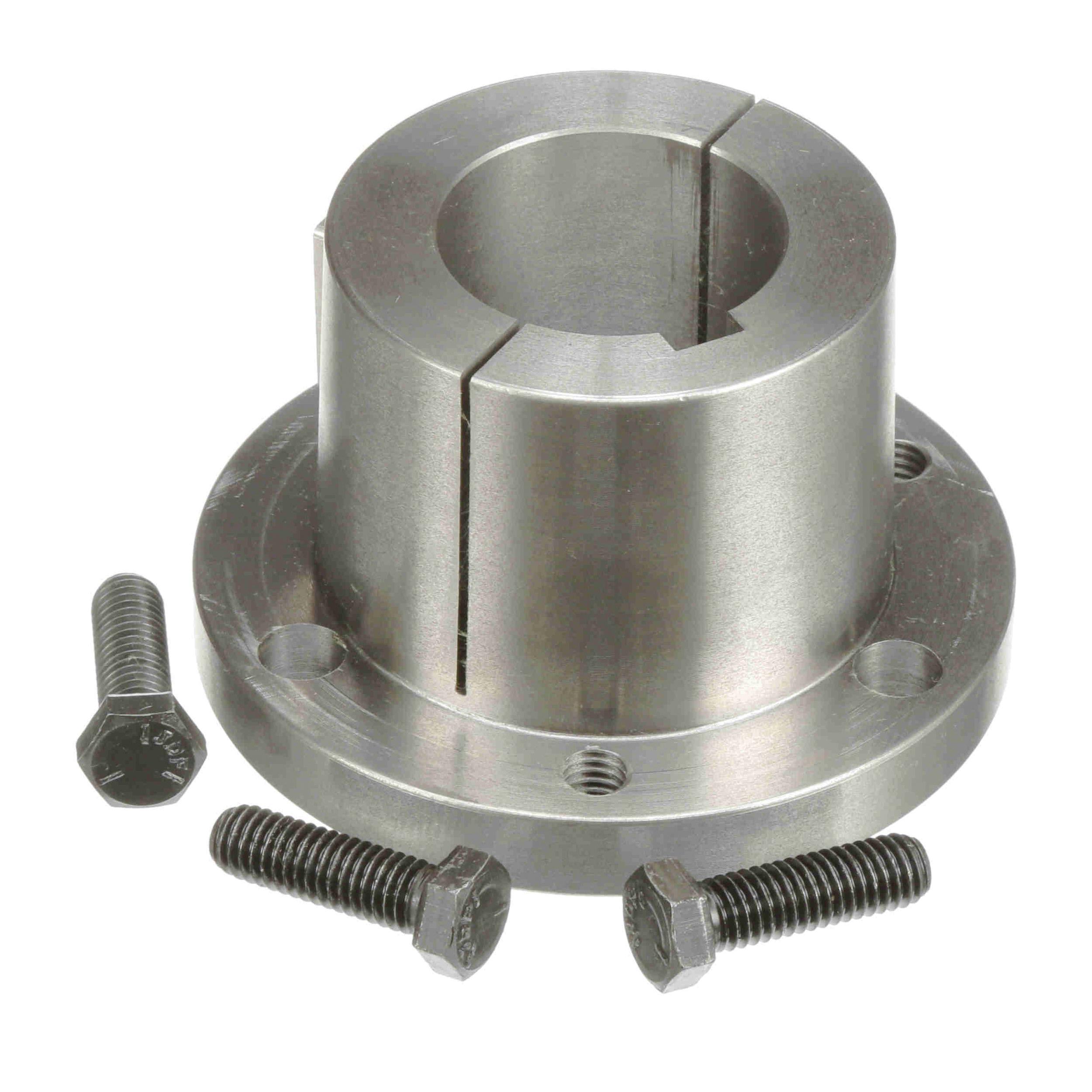

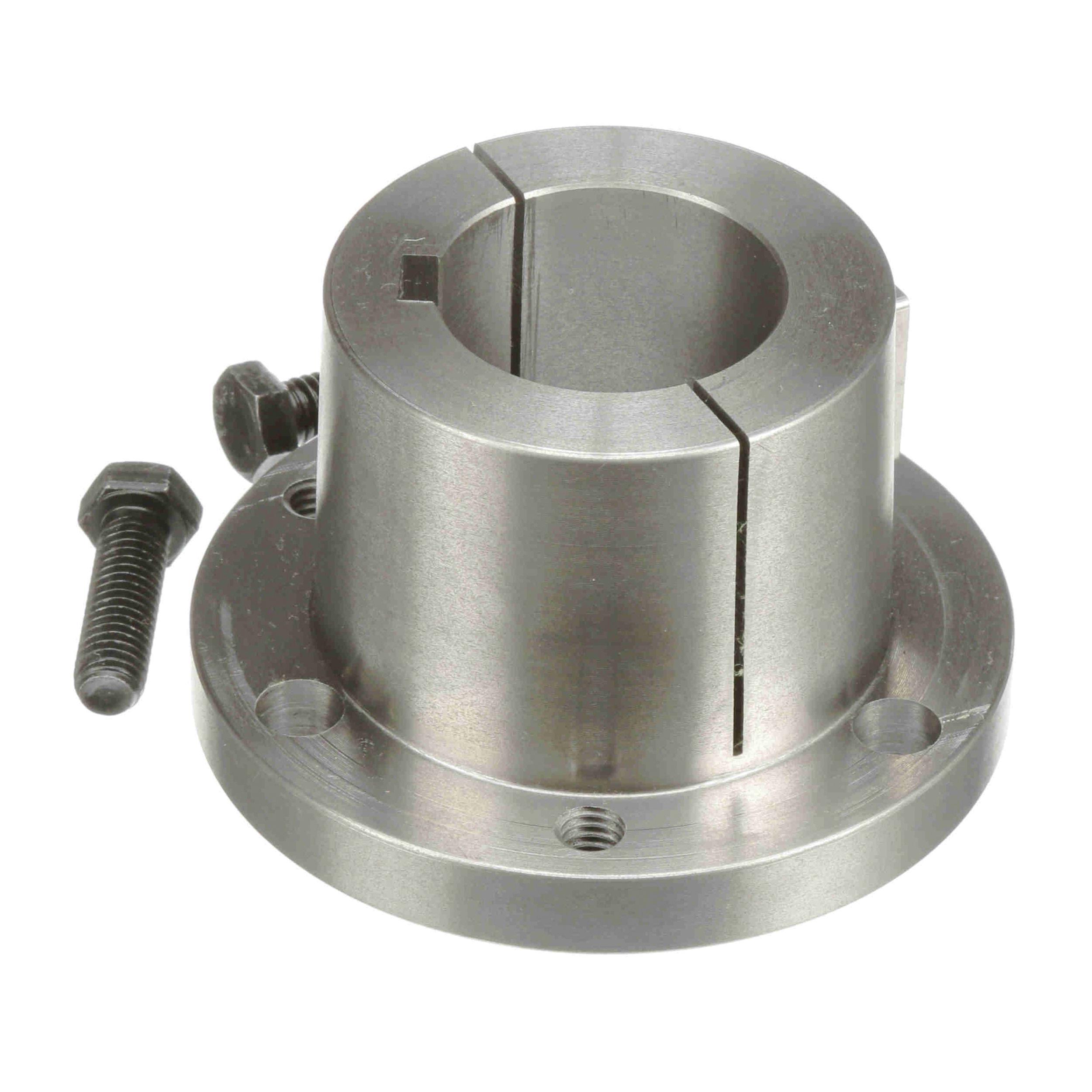

Browning Q1 1 11/16 Type Q1 Split Taper Bushing, 1-11/16 in Dia Bore, 2.769 in, 2.875 in Dia Barrel, 2-1/2 in L
Browning® Q1 1 11/16 Split Tapered Bushing, 1-11/16 in Dia Bore, 2.769 in, 2-7/8 in Dia Barrel, 4-1/8 in Dia Flange
Browning® Q1 1 11/16 Split Tapered Bushing, 1-11/16 in Dia Bore, 2.769 in, 2-7/8 in Dia Barrel, 4-1/8 in Dia Flange Q1 1 11/16- Brand Name: Browning®
- Part Number: Q1 1 11/16
- UPC: 662289209750
- Check Stock
Add To Favorites ListBrowning® Split Tapered Bushing, Model: Q1-Type1_Bushing_Master, Bushed Bore, 1-11/16 in Bore Diameter, 4-1/8 in OD, 2.769 in, 2-7/8 in Barrel Diameter, 2-1/2 in Length, 3/8 x 3/16 in Keyway Size, Solid Flange Type, 4-1/8 in Flange Diameter, 17/32 in Flange Thickness, 3 Number of Cap Screws, 3/8 x 1-1/4 in Cap Screw Size, 3 Bolt Holes, 348 in-lb Torque, Iron/Steel
| Barrel Diameter | : | 2.769 in, 2-7/8 in |
| Bore Diameter | : | 1-11/16 in |
| Bore Type | : | Bushed |
| Cap Screw Size | : | 3/8 x 1-1/4 in |
| Flange Diameter | : | 4-1/8 in |
| Flange Thickness | : | 17/32 in |
| Flange Type | : | Solid |
| Keyway Size | : | 3/8 x 3/16 in |
| Length | : | 2-1/2 in |
| Material | : | Iron/Steel |
| Model | : | Q1-Type1_Bushing_Master |
| Number of Bolt Holes | : | 3 |
| Number of Cap Screws | : | 3 |
| Outside Diameter | : | 4-1/8 in |
| Torque Rating | : | 348 in-lb |
- Solid flange and double split barrel, assures better concentricity to the shaft
- Key to key drive, with keys on both the shaft and product to provide the strongest possible drive
- 3/4 in/ft taper on barrel, self locking taper provides the highest degree of mechanical locking product to product
