Browning® Q1 1 3/8 3/8 Q1 1 3/8 3/8

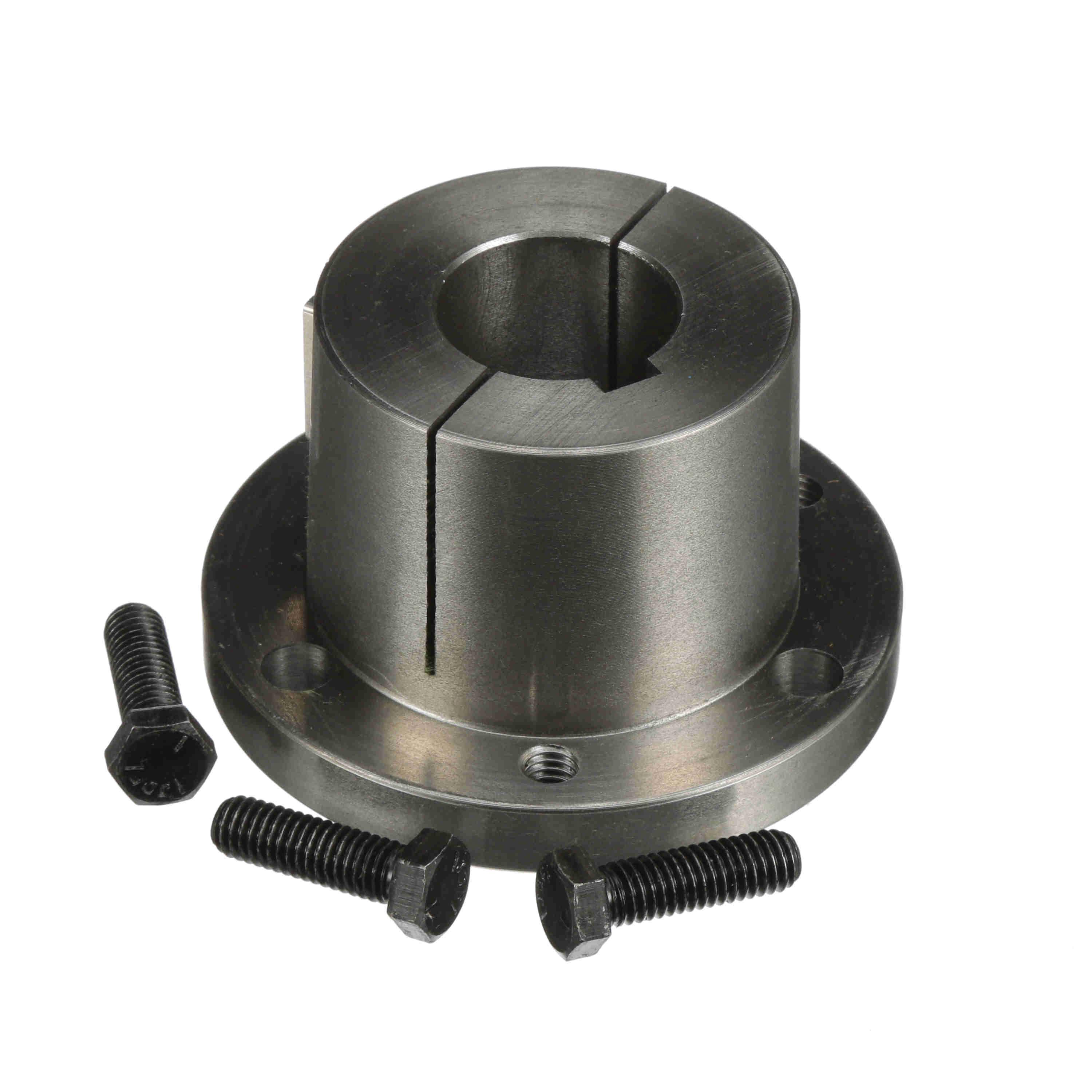

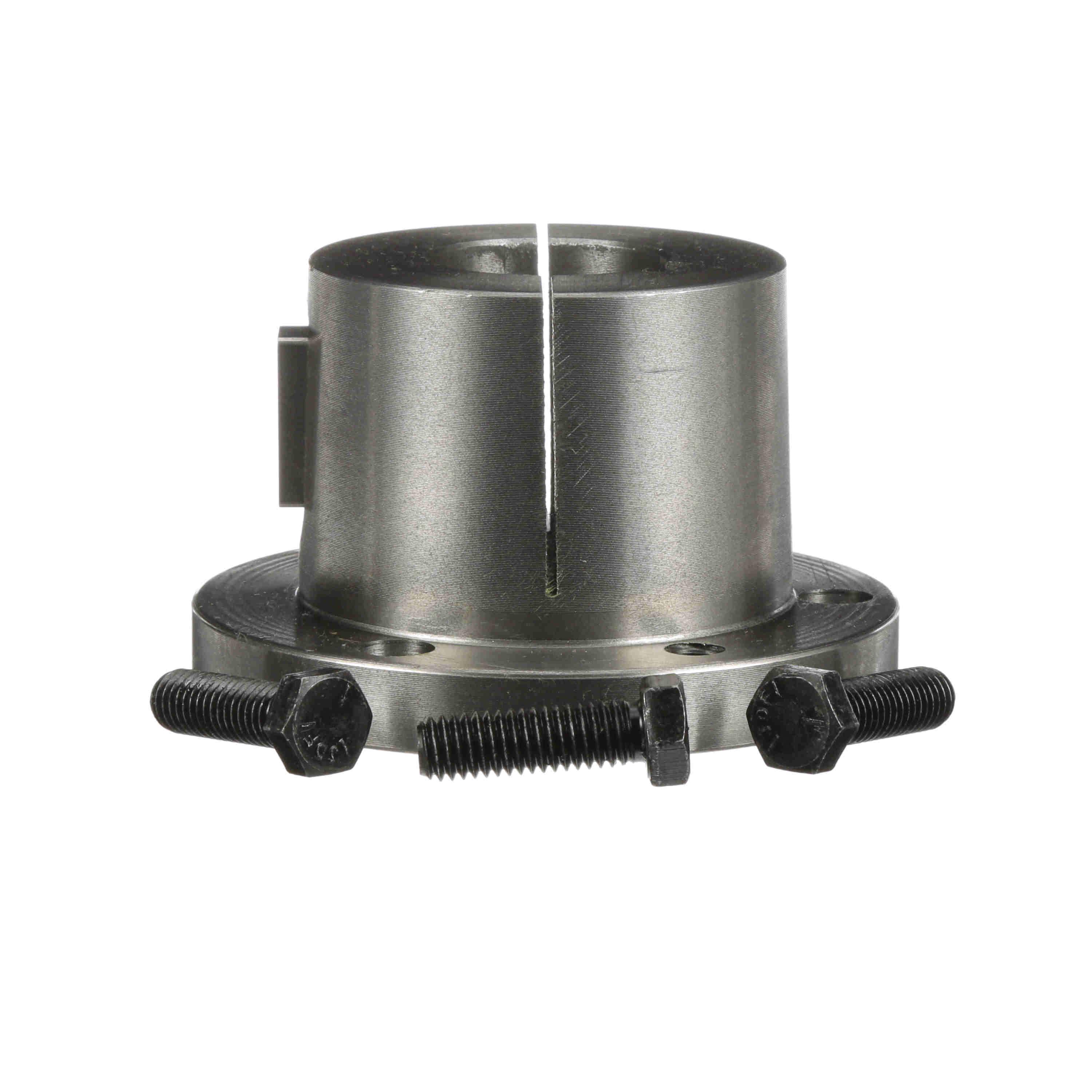

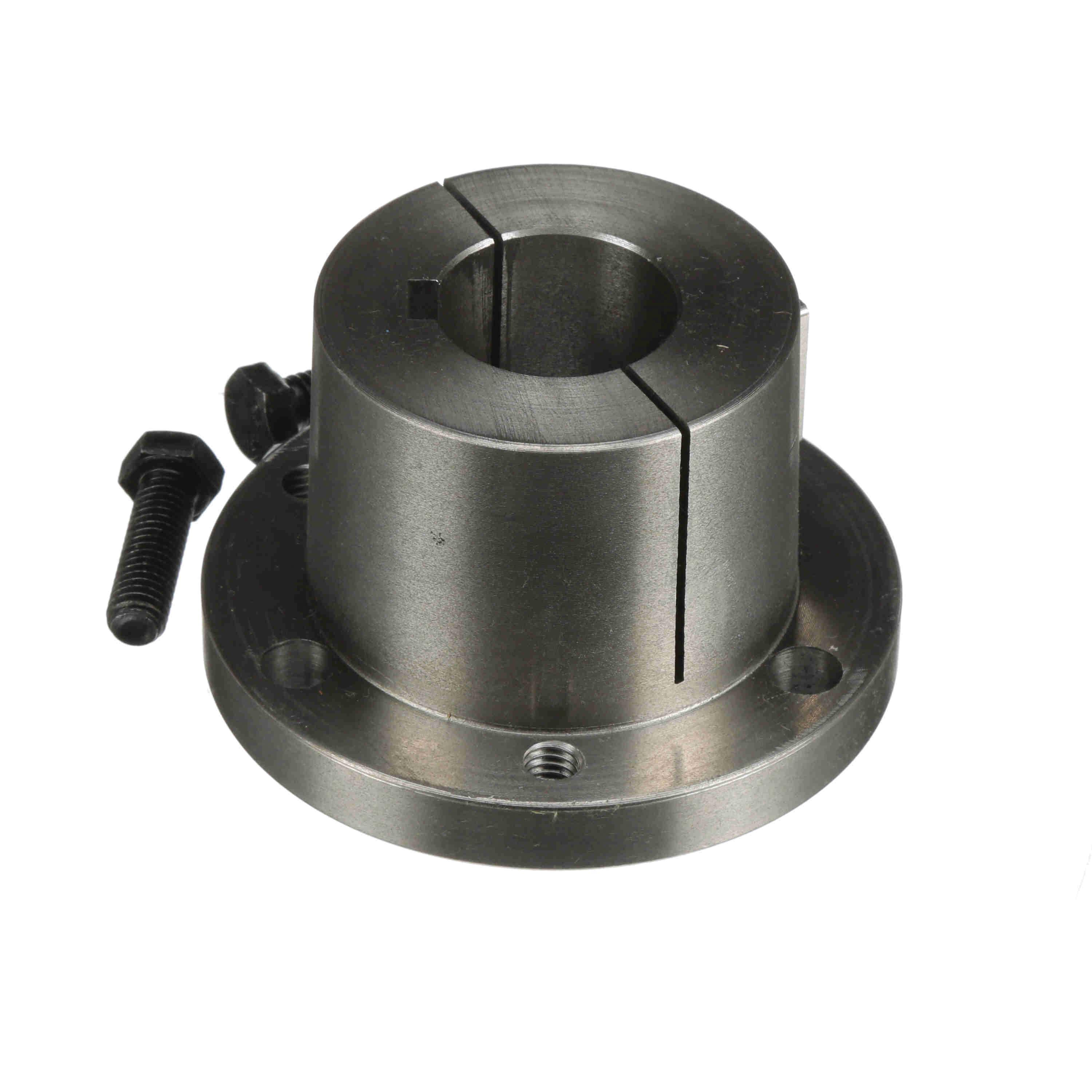

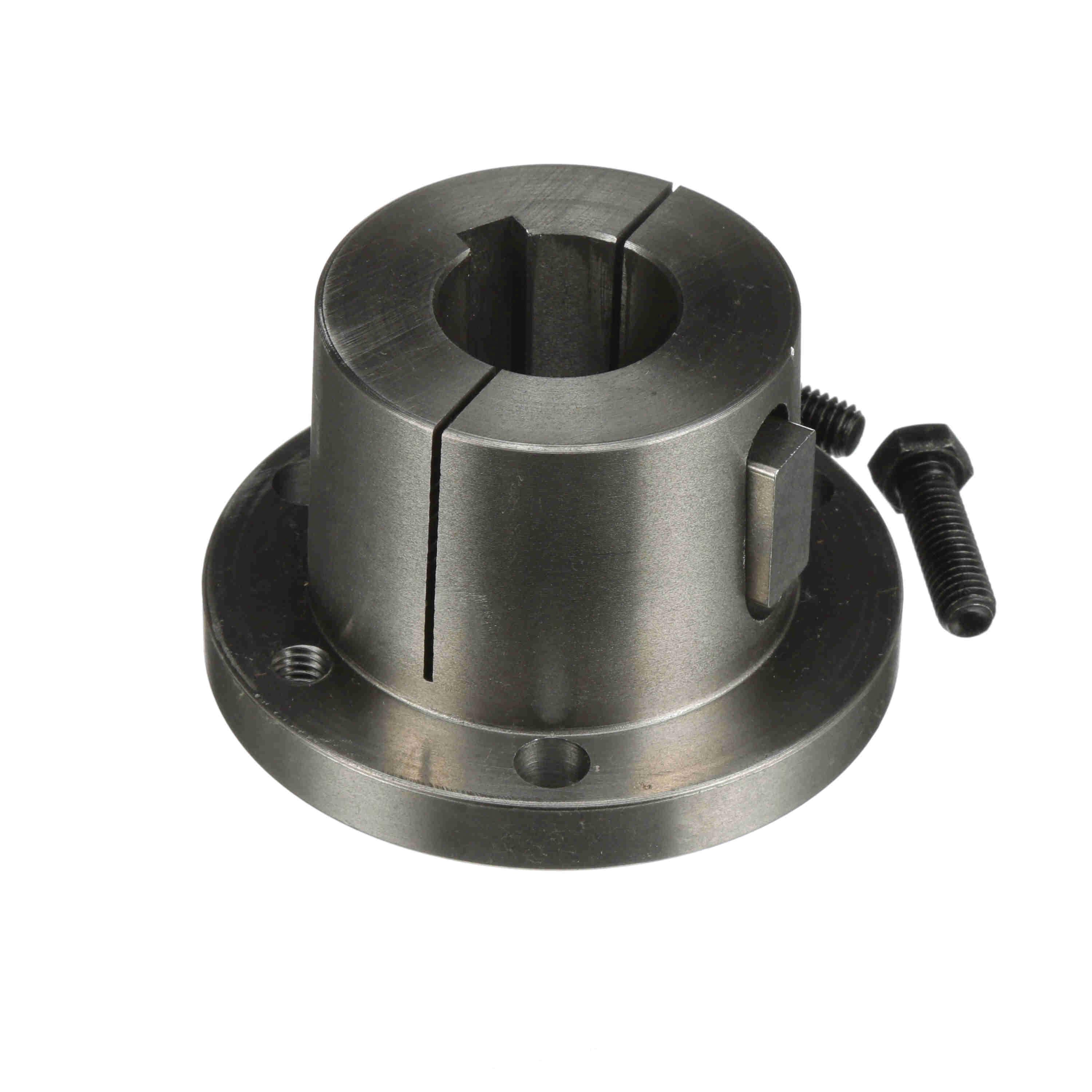

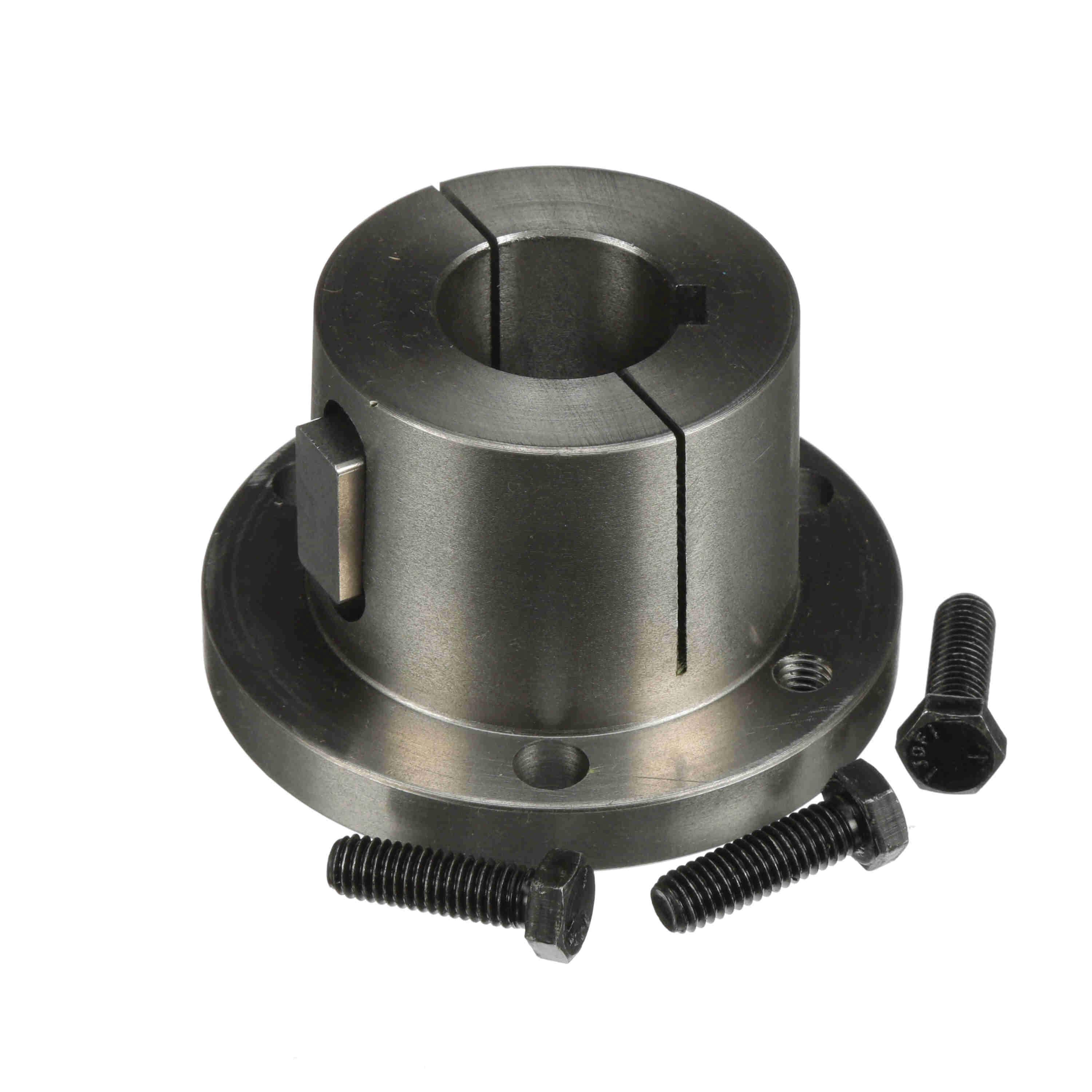

Browning Q1 1 3/8 3/8 Split Taper Bushing, 1-3/8 in Dia Bore, 2-1/2 in L, Sintered Steel

Browning® Q1 1 3/8 3/8 Split Tapered Bushing, 1-3/8 in Dia Bore, 2.769 in, 2-7/8 in Dia Barrel, 2-1/2 in L, Steel

Browning® Q1 1 3/8 3/8 Split Tapered Bushing, 1-3/8 in Dia Bore, 2.769 in, 2-7/8 in Dia Barrel, 2-1/2 in L, Steel Q1 1 3/8 3/8

Browning® Split Tapered Bushing, Model: Q1-Type1_Bushing_Master, Bushed Bore, 1-3/8 in Bore Diameter, 2-1/2 in OD, 2.769 in, 2-7/8 in Barrel Diameter, 2-1/2 in Length, 3/8 x 3/16 in Keyway Size, Solid Flange Type, 3 Number of Cap Screws, 5/16 x 1-1/4 in Cap Screw Size, 348 in-lb Torque, Steel

Barrel Diameter      :      2.769 in, 2-7/8 in
Bore Diameter      :      1-3/8 in
Bore Type      :      Bushed
Cap Screw Size      :      5/16 x 1-1/4 in
Flange Type      :      Solid
Keyway Size      :      3/8 x 3/16 in
Length      :      2-1/2 in
Material      :      Steel
Model      :      Q1-Type1_Bushing_Master
Number of Cap Screws      :      3
Outside Diameter      :      2-1/2 in
Torque Rating      :      348 in-lb
  • If this bushing ever fails Browning will replace it free of charge
  • Solid flange and double split barrel assures better concentricity to the shaft
  • Key-to-key drive, with keys on both the shaft and product to provide the strongest possible drive
  • 3/4 in/ft taper on barrel, self-locking taper provides the highest degree of mechanical locking product to product
  • Lifetime warranty - if this bushing ever fails Browning will replace it free of charge
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Browning_Q1_13_16_Catalog.pdf
  • pdfInstruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/Browning_Q1_13_16_Instruction_Installation_Manual.pdf
